AOpen MODT Flex i945GTt-VFA Easy Installation Manual page 3

Archite Clock
Processor Number
cture Speed Side Bus
Core Duo T2700 65nm 2.33GHz 667MHz
Core Duo T2600 65nm 2.16GHz 667MHz
Core Duo T2500 65nm 2GHz 667MHz
Core Duo T2400 65nm 1.83GHz 667MHz
Core Duo T2300 65nm 1.66GHz 667MHz
Core Solo T1400 65nm 1.83GHz 667MHz
Core Solo T1300 65nm 1.66GHz 667MHz
Note: With CPU speed changing rapidly, there might be faster CPU on
the market by the time you received this installation guide. This table
is kindly for your references only.
Above table is Intel® Core™ Duo and Core™ Solo CPU
numbers and simple specification for your reference only.

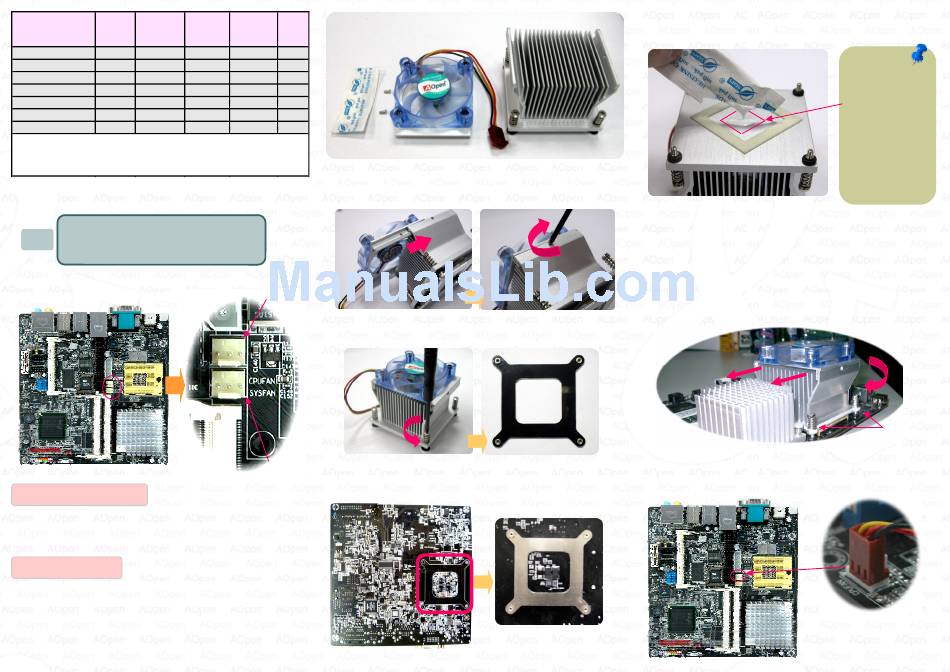

CPU Cooler & System Fan
2
Installation
Find the CPU fan power connector and system fan power
connector - as below picture.
Connect your system Fan
Install the SYSTEM FAN
power with above "SYSFAN"
connector. Be care of the direction of fan power
connector, it has anti-direction stick on it. Please make
your system fan power connect correctly with it.
Install the CPU FAN
1. Please check the all parts are in the CPU cooler's
box. And take them out. ( If you don't have any of
them, please contact with local AOpen technical
support team.
Front
Cache Ratio
2MB L2 14
2MB L2 13
2MB L2 12
2MB L2 11
2MB L2 10
2MB L2 11
2MB L2 10
2. Insert CPU FAN into the top of CPU heasink. After
that please lock the screw between the CPU FAN
and CPU heatsink. ( as pictures below )
CPU Fan
3. Remove the four screws of the CPU heatsink and
take the bracket from heatsink.
System Fan 4. Place bracket properly on the back side of MoDT
Flex 945 as picture.
5. Smear over the thermal compound under the center
of heatsink smoothly and let it be well mixed.
6. Put the CPU Fan & heatsink on the processor and
lock the four screws of the heatsink with bracket. (on
the MB back side) Please make sure the screws are
well tied between the motherboard and heatsink.
Notice the CPU Fan & heatsink must have direction
as below picture. Keep the heatsink direct the air
flow to North bridge's heatsink. That can help to get
good thermal in system operation.
7. Plug the CPU fan power into "CPUFAN" connector
properly.
(Picture for reference only)
Note
The thermal
compound should
not paste too much
on the heatsink.
Please paste with
left red area around
(recommend). The
compound thin with
1 ~ 2mm will be
better.
Direction
Screw
(Picture for reference only)
(Picture for reference only)
