MoDT Flex 945
Enable the Power of Flex ATX Form Factor
i945GTt–VFA
i945GMt–FA
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
MoDT is initiated by AOpen since 2004
19V DC
Adaptor
S-VIDEO
Connector
1394 connector
Realtek HD audio codec
JLED2
Front audio connector
CD Audio in connector
PCI Express x1 slot
COM 2 Connector
S/PDIF Connector
JLED1
USB2.0 Connectors
Mini PCI slot
S-ATA connector
Front Panel connector
90W DC Adaptor
CPU Fansink
Intel Raid Driver
S/PDIF Convert
4-pins Power
x2
Cable (1 to 2ML)
i945GTt-VFA only
i945GTt-VFA only
Accessories List in MoDT Flex 945
PS/2
COM1
LAN
1394
MOUSE
DVI
USB2.0
PS/2
Keyboard
IO Bracket
CPU Fansink Glue
IDE Cable
DVI to D-Sub
AOpen Bonus
Converter
CD
Line In
Rear SUR
Speaker Out
Center/Subwoofer
MIC-IN
Side SUR
Chrontel 7307C DVI DEC
IDE Connector
intel PCIe Gigabit Lan Chip
4 Pins 5V DC Power Out
479 Socket for Yonah CPU
BIOS with AWARD support
CPUFAN
SYSFAN
SODIMM x 2
Super IO—Winbond
Boot LED
Standby LED
intel 945GT/945GM
intel ICH7MDH/ICH7M
JP14 CMOS clear jumper
Battery

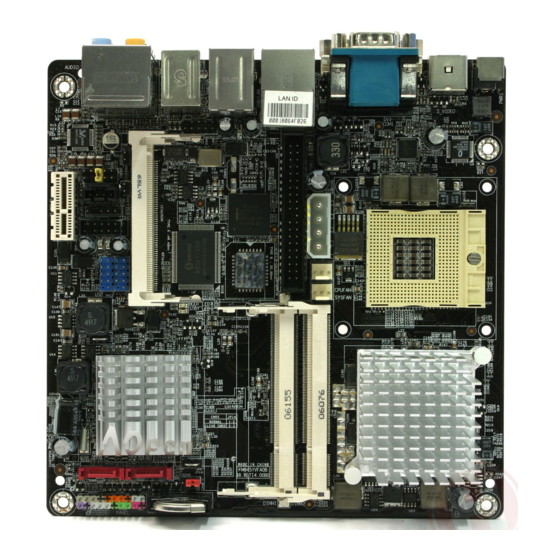

Picture i945GTt-VFA
S-ATA Cable &
S-VIDEO to
S-ATA power Cable
YPbPr cable
Power Cord
MoDT Flex 945
Optional
EIG
Advertisement
Table of Contents
Related Manuals for AOpen MODT Flex i945GTt-VFA
Summary of Contents for AOpen MODT Flex i945GTt-VFA

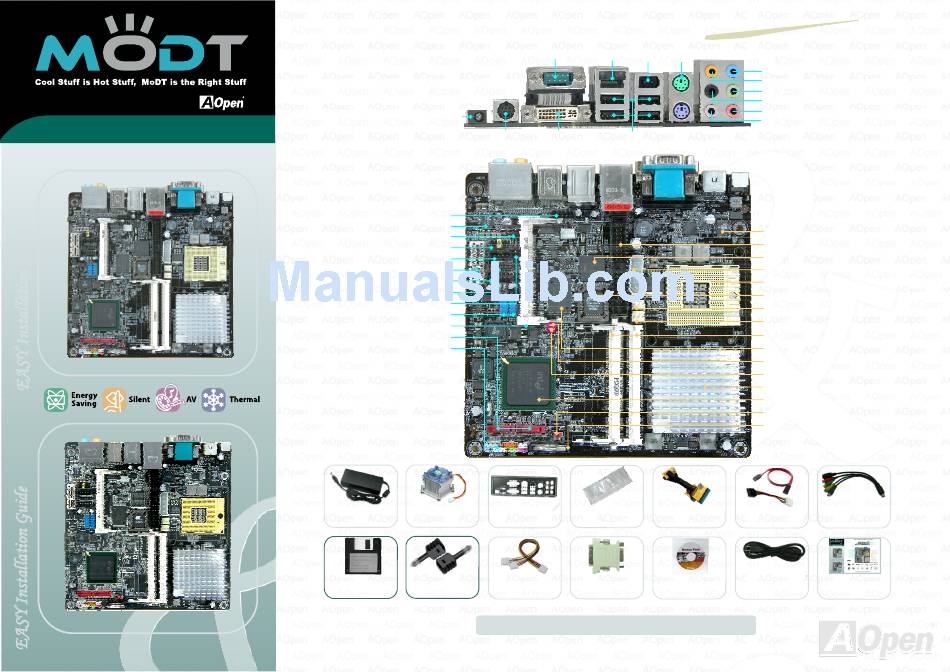

- Page 1 MoDT Flex 945 Optional Cable (1 to 2ML) Converter i945GTt-VFA only i945GTt-VFA only i945GMt–FA Accessories List in MoDT Flex 945 AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
-
Page 2: Cpu Installation
MoDT Flex 945 Specification Table Before you start to make Hardware installation, please make sure no power is connected Model Name i945GTt-VFA i945GMt-FA Form Factor Flex ATX PCB Size 170mm x 170mm Yonah Core Duo & Core Solo CPU Installation CPU Socket 479 Socket MoDT Flex 945... - Page 3 Install the CPU FAN Please check the all parts are in the CPU cooler’s box. And take them out. ( If you don’t have any of them, please contact with local AOpen technical (Picture for reference only) support team. (Picture for reference only)
-
Page 4: Memory Installation
Memory Installation IDE Installation MoDT Flex 945 provides one IDE connector which allow MoDT Flex 945 provide SODIMM type memory support. you to connect two ATA 33/66/100 IDE devices like HDD. There’re two SODIMM memory slots which Flex 945 MPEG4 encoder Mini PCI card provided. -
Page 5: Power Consumption
- INPUT AC100-240V ~1.5A - OUTPUT DC 19V—4.74A NOTE HDD LED Please notice on the power, AOpen HDD LED MoDT Flex 945 provided, is AC-DC adaptor. And the board can offer 180W to connect different SPEAKER peripherals. But it needs to be careful while connecting many peripherals and cause power over 90W. -
Page 6: Back Panel Connections
VGA & Video Support Back Panel Connections PC 5+1 Speakers MoDT Flex 945’s Graphic/Video Output as left pictures. It supports DVI-I connector. But there’s DVI to D-SUB connector bundle which allows you to connect D-SUB monitor. Also, it provided a S-VIDEO connector in back side which allows you to connect Video consumer electronics. - Page 7 Number are printed on the bar code label. You can find this bar code label on the outside packing or on component side of PCB. For example: After you insert AOpen Bonus CD, it will automatically show below “Ezinstall’ screen. Part No.
-
Page 8: Troubleshooting
If you encounter any trouble to boot you system, Dear Customer, follow the procedures accordingly to resolve the problem. Thanks for choosing AOpen products. We invite you to register at http://www.aopen.com of Club AOpen so as become a Gold Member to ensure quality service in the future.
