Memory Installation; Ide Installation; Sata Installation - AOpen MODT Flex i945GTt-VFA Easy Installation Manual

3

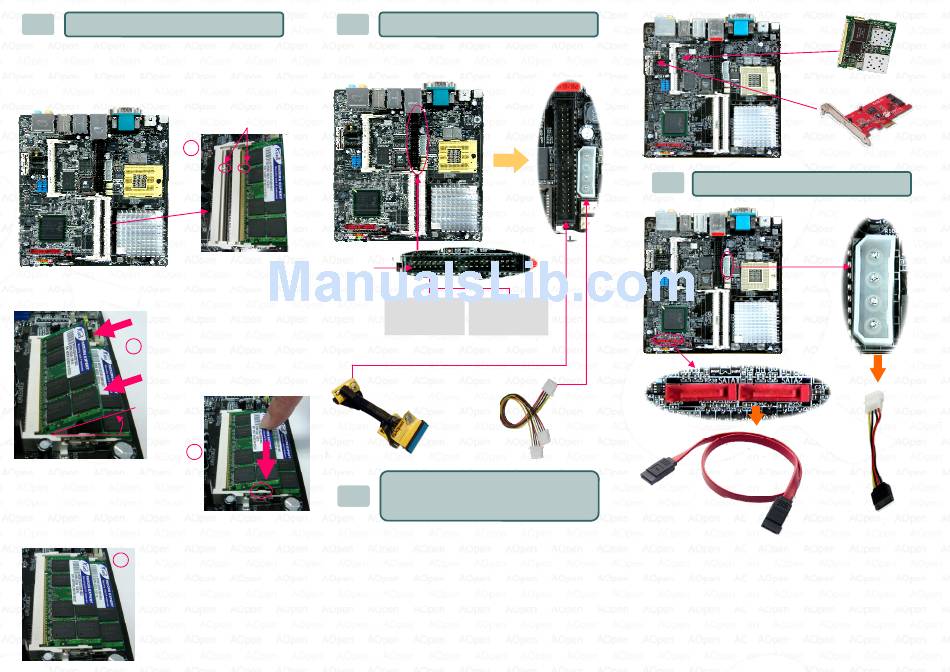

Memory Installation

MoDT Flex 945 provide SODIMM type memory support.
There're two SODIMM memory slots which Flex 945
provided. The installation of memory module as below
1
1. Put the memory module with correct direction. Notice
there's one stick to make sure direction is correct.
2. Plug in memory module
into SODIMM slot with angle
2 20~30º. Make sure memory
moule plug into slot
completely.
3
(Picture for reference only)
3. There're tabs which located in
the side of SODIMM holder.
Use finger to push memory
module vertically until the tabs lock memory module
tightly.
4
4. Now, the memory modules
have been plugged properly with
horizontal flat.
(Picture for reference only)
4
MoDT Flex 945
you to connect two ATA 33/66/100 IDE devices like HDD.
stick
(Picture for reference only)
PIN 1
Tab
5
(Picture for reference only)
MoDT Flex 945
one 1x PCIe slot for users to upgrade his PC functions.
Now, the Mini PCI can have digital TV tuner and Video
MPEG4 decoder card ...etc for expansion. The 1x PCIe
cards have sATA and Firewire and USB cards ... etc for
expansion.

IDE Installation

provides one IDE connector which allow
Primary
Primary
Slave (2nd) Master (1st)
ATA 33/66/100 IDE Connector
IDE cable to
connect IDE
DC power to
devices
connect IDE
devices
Mini PCI and PCIe x1
Installation
provides one Mini PCI slot and
EX.
MPEG4 encoder Mini PCI card
EX.
PCIe —> SATA 1x PCIe card
6

SATA Installation

SATA Signal
Cable
MoDT Flex 945 provides two SATA connectors.
i945GTt-VHL has raid function on it as well. But i945GMt-
HL do have SATA only.
Connect SATA cable to the on board SATA connector.
You can find SATA cable in our package. (this is SATA
signal cable) And please also connect 5V power
connector with SATA power cable.
SATA Power
Cable
