Summary of Contents for ADDER AdderLink XD150

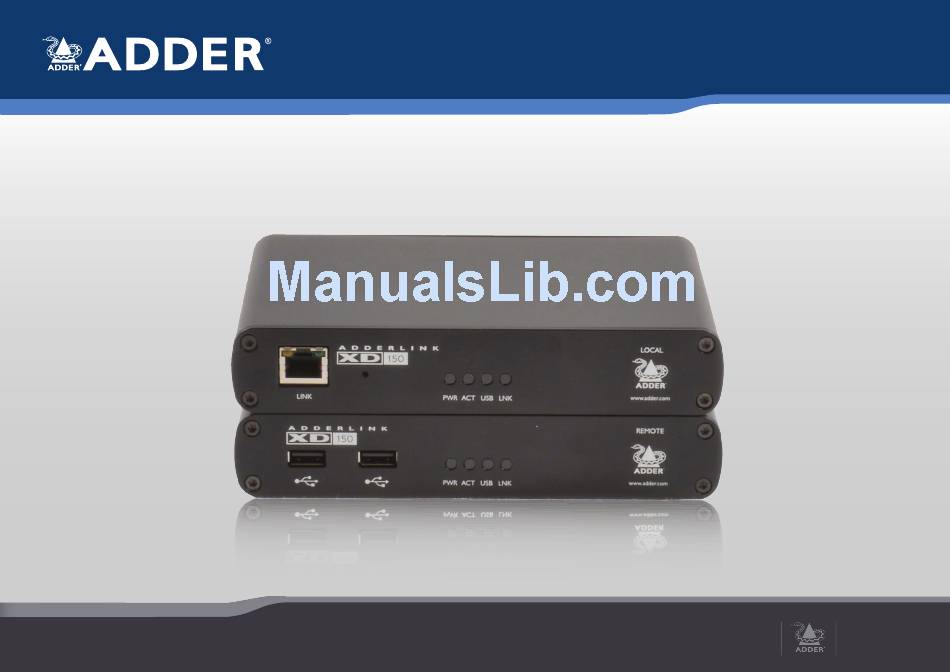

  • Page 1 AdderLink XD150 User Guide Experts in Extender Connectivity Solutions Solutions...
  • Page 2: Table Of Contents

    Contents Introduction Configuration Welcome ........................2 Mode switch settings ..................14 AdderLink XD150 features ................3 Firmware upgrades ....................15 Tips for achieving good quality links ..............4 Operation Supplied items .......................5 Indicators ......................16 Optional extras .....................6 Further information Installation Getting assistance ....................17 Locations ........................7 Appendix 1 - Options port pin-out ...............18...
  • Page 3: Welcome

    The AdderLink XD150 extender modules The AdderLink XD150 extenders provide two operational modes so that you can are totally transparent in operation, leaving choose your priority: To support a higher resolution display (up to 1920 x 1200 @ 60Hz) you free to use your computer as or to cover a greater distance (up to 150 meters).
  • Page 4: Adderlink Xd150 Features

    ADDERLINK XD150 FEATURES The local and remote modules are contained within slimline metal casings that measure just 169 x 116 x 31mm. Local module Remote module CATx link to Recessed Status indicators USB ports Status indicators remote module reset These provide...
  • Page 5: Tips For Achieving Good Quality Links

    AdderLink XD150 installation is highly dependent upon good quality CATx cable links. Video performance is particularly reliant on high speed communication channels. For this reason, the AdderLink XD150 units test the link quality to determine which of two transfer modes can be supported: High rate or Long reach.
  • Page 6: Supplied Items

    SUPPLIED ITEMS AdderLink XD150 2 x Power adapter with local module locking connector and country-specific power cord Video cable DVI-D to DVI-D USB cable 2m (type A to B) AdderLink XD150 remote module Information wallet containing: Eight self-adhesive rubber feet...
  • Page 7: Optional Extras

    OPTIONAL EXTRAS USB cable 2m (type A to B) Audio cable 2m (3.5mm stereo jacks) Part number: VSC24 Part number: VSC22 Replacement power adapter with locking connector Part number: PSU-IEC-12VDC-1.5A Country-specific power cords CAB-IEC-AUS (Australia) CAB-IEC-EURO (Central Europe) CAB-IEC-UK (United Kingdom) CAB-IEC-USA (United States) CAB-IEC-JAPAN (Japan) Serial cable 2m...
  • Page 8: Installation

    LOCATIONS Please consider the following important points when planning the position of the AdderLink XD150 modules: • Situate the local module close to the system to which it will be connected and near to a source of mains power. Place the remote module in similar close proximity to the peripherals that it will connect with, plus a source of mains power.
  • Page 9: Connections

    Local video connection Local USB connection When operating in High Rate mode, AdderLink XD150 can support one Single Link DVI If USB connectivity is required, then a single USB connection is necessary between the video display at pixel clocks up to 165MHz (equivalent to a maximum resolution of 1920 local module and your computer;...
  • Page 10: Local Audio Connection

    1 Connect an audio link cable (Adder When operating in High Rate mode, AdderLink XD150 can support cable distances up part number: VSC22) between the to 100 meters. If the Long Reach mode is selected, the separation between the local and audio socket on the local module rear remote modules can be increased to 150 meters.
  • Page 11: Local Power Connection

    Local power connection There is no on/off switch on either of the AdderLink XD150 modules, so operation begins as soon as power is applied. The power adapters supplied with the modules use locking-type plugs to help prevent accidental disconnections; please follow the instructions given right whenever disconnecting a power adapter.
  • Page 12: Remote Video Connection

    (in any combination). All four USB sockets are identical in operation. also the mode in which the AdderLink XD150 system is running. When high rate mode To connect USB devices...
  • Page 13: Remote Audio Connection

    When operating in High Rate mode, AdderLink XD150 can support cable distances up to 100 meters. If the Long Reach mode is selected, the separation between the local and remote modules can be raised up to 150 meters. Best results will be gained when single lengths of CAT7 cable are used without the need for patch cables.
  • Page 14: Remote Power Connection

    Remote power connection There is no on/off switch on either of the AdderLink XD150 modules, so operation begins as soon as power is applied. The power adapters supplied with the modules use locking-type plugs to help prevent accidental disconnections; please follow the instructions given right whenever disconnecting a power adapter.
  • Page 15: Configuration

    Configuration MODE SWITCH SETTINGS The local module has two small switches on its rear panel. These are used to determine which operation modes should be used. You will need to re-power the local module whenever a switch setting is changed. Changes to the mode switches are not recognized until you re-apply Local module...
  • Page 16: Firmware Upgrades

    ‘FIRMWARE’. 3 Follow step 5 above. • If the upgrade process fails again, contact Adder technical support for assistance. 4 On the front panel of the local module, use a small implement or straightened paperclip to press and hold the recessed reset button for approximately 10 seconds.
  • Page 17: Operation

    Operation The AdderLink XD150 modules are designed to be transparent in operation. Providing the link cable is sufficient to reliably carry the signals across the separation distance, all peripherals should respond exactly as they would when situated next to your host computer. INDICATORS The local and remote modules contain various indicators to provide you with status information.
  • Page 18: Further Information

    - Options port pin-out • Online solutions and updates – www.adder.com/support • Appendix 2 - Link cable interference protection  Check the Support section of the adder.com website for the latest solutions and • Safety information firmware updates. • Warranty • Adder Forum –...
  • Page 19: Appendix 1 - Options Port Pin-Out

    APPENDIX 1 - OPTIONS PORT PIN-OUT port uses a 10p10c socket which can accommodate both 10p10c OPTIONS connectors as well as the much more common 8p8c connectors, which are used on Ethernet leads and patch cables. The pin-outs are listed in this section for both types of connector.
  • Page 20: Appendix 2 - Link Cable Interference Protection

    APPENDIX 2 - LINK CABLE INTERFERENCE PROTECTION While the Category rating (e.g. CAT 5e, CAT 6a, CAT 7, etc.) determines the electrical performance of a cable, another vital part of the overall cable specification is its protection from interference. As cabling distances and data rates increase, so too does the susceptibility to interference, from both external and internal sources.
  • Page 21: Warranty

    • No user serviceable parts within power adapter(s) - do not dismantle. Adder will replace or repair it free of charge. No liability can be accepted for damage due • Plug the power adapter(s) into socket outlets close to the module that they are to misuse or circumstances outside Adder’s control.
  • Page 22: Radio Frequency Energy

    RADIO FREQUENCY ENERGY A Category 5e (or better) twisted pair cable must be used to connect the units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances. All cables used with this equipment must be shielded in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
  • Page 23 Web: www.adder.com Contact: www.adder.com/contact-details Support: forum.adder.com © 2014 Adder Technology Limited All trademarks are acknowledged. www.ctxd.com Documentation by: Part No. MAN-XD150-ADDER • Release 1.0a...
  • Page 24: Index

    Index Audio Indicators 16 Safety information 20 local module 9 Interference Screening 19 remote module 12 protection 19 Serial port local module 9 remote module 12 Cable pairs 19 Link quality 4 Shielding 19 Cable types 19 Long reach mode 2 Switch settings 14 Category rating 19 CATx 4...
