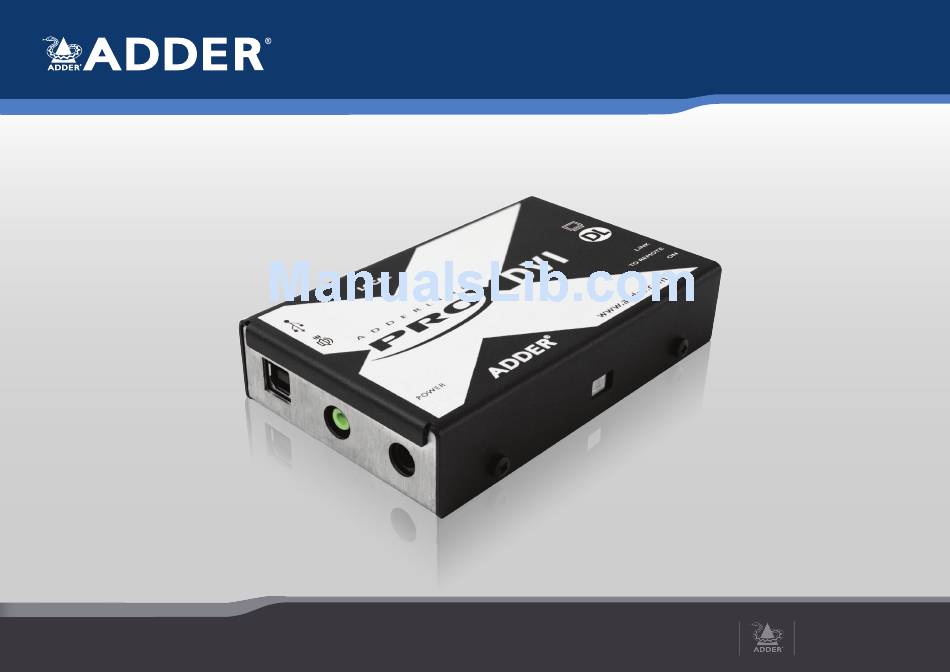

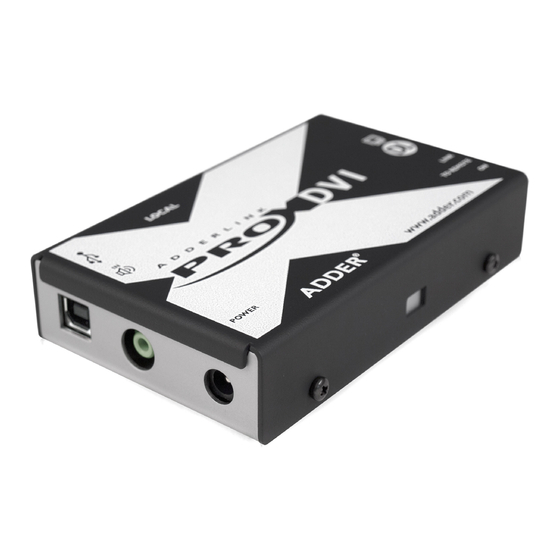

- Page 1 AdderLink X-DVIPRO-DL User Guide Experts in KVM Extender Connectivity Solutions Solutions...
-
Page 2: Table Of Contents
Contents Introduction Operation Welcome ........................2 General use ......................10 Cable type and distance rules..............2 Video display (EDID) information ............10 Supplied items .......................3 HDMI 1.3a operation ..................10 Optional extras .....................4 Power and activity indicators ..............10 Installation Further information Connections ......................5 Troubleshooting ....................11 Mounting the modules –... -
Page 3: Welcome
Using our proprietary transmission techniques the X-DVIPRO-DL modules can bulk/trunk (not patch) cable at full resolution. extend all dual link video resolutions up to 2560 x 1600. In effect, the X-DVIPRO-DL can • Adder does not recommend CAT5e cables for use with this product. -
Page 4: Supplied Items
SUPPLIED ITEMS Information wallet AdderLink DVIPRO-DL AdderLink DVIPRO-DL containing: Local module Remote module Four self-adhesive rubber feet Safety document 12.5W power adapters and country- specific power cords USB cable 2m (type A to B) Dual link video cable Part number: VSC24 DVI-D to DVI-D Part number: VSCD3V 3.5mm jack to jack... -
Page 5: Optional Extras
OPTIONAL EXTRAS 50 meter CAT7 link cable Part number: VSCAT7-50 Rack mount chassis Part number: X-RMK-CHASSIS Rack mount kit for X-DVIPRO-DL Part number: X-RMK-FASCIA HDMI to DVI-D video cable Part number: VSCD11... -
Page 6: Installation
1 Place the rack securing plate (available as a separate kit) onto the front of the module and secure it with the two countersunk screws. • Connections at the local module 2 Orient the X-DVIPRO-DL module on its side so that its labeled face is the correct • Connections at the remote module way up. -
Page 7: Connections At The Local Module
To USB port switches or any device other than the X-DVIPRO-DL remote module. • The X-DVIPRO-DL (dual link) extenders are NOT compatible with the standard X-DVIPRO (single link) versions. Where both types are being used in close proximity, take care not to cross connect the local and... -
Page 8: Power Connection
Power connection 1 Connect the output lead of the supplied power adapter to the socket labeled on the POWER local module. Output lead from the power adapter 2 Insert the IEC connector of the supplied power cord into the corresponding socket of the power adapter. -
Page 9: Connections At The Remote Module
X-DVIPRO-DL local module. To keyboard, mouse and other USB • The X-DVIPRO-DL (dual link) extenders are NOT compatible with the peripherals standard X-DVIPRO (single link) versions. Where both types are being used in close proximity, take care not to cross connect the local and Note: The total current that may be drawn from the USB ports is 1.2A, which should be... -
Page 10: Power Connection
Power connection 1 Connect the output lead of the supplied power adapter to the socket labeled on the remote module. POWER Output lead from the power adapter 2 Insert the IEC connector of the supplied power cord into the corresponding socket of the power adapter. -
Page 11: Operation
Operation GENERAL USE Power and activity indicators In use, the X-DVIPRO-DL modules should be transparent - the system and its Each module provides two indicators to confirm power status and also feedback about peripherals should operate exactly as normal, the only difference being that they are now the various input signals: up to 50 meters apart. -
Page 12: Further Information
If the yellow indicators are off, then the link cable is not properly connected. • Check that both the local and remote ends of the extender are X-DVIPRO-DL variants. The single link X-DVIPRO modules are not compatible with X-DVIPRO-DL. -
Page 13: Getting Assistance
If you are still experiencing problems after checking the information contained within this guide, then we provide a number of other solutions: • Online solutions and updates – www.adder.com/support Check the Support section of the adder.com website for the latest solutions and firmware updates. • Adder Forum – forum.adder.com Use our forum to access FAQs and discussions. -
Page 14: Appendix A - Cables For Use With Digital Extenders
APPENDIX A - Cables for use with digital extenders Introduction Types of RJ45 connector The demands of extending high resolution DVI and HDMI digital video signals are For each type of cable there is also an associated RJ45 connector. It is important that the considerable and mean that it is not possible to use Cat5e cabling to achieve the correct type of connector is used for the type of cabling. - Page 15 We recommend the following two types of cable: Patch Cables Daetwyler 7702P flex This is stocked by Adder with the following part number VSCAT7-50. This is a 50m length of Daetwyler 7702P terminated with HRS TM31P RJ45 connectors. CU 7702 4P flex Flexible data cable S/FTP Cat.7 AWG26...
-
Page 16: Warranty
Adder will replace or repair it free of charge. No liability can be accepted for damage due commercial environment. Operation of this equipment in a residential area may cause to misuse or circumstances outside Adder’s control. - Page 17 Web: www.adder.com Contact: www.adder.com/contact-details Support: forum.adder.com © 2014 Adder Technology Limited All trademarks are acknowledged. www.ctxd.com Documentation by: Part No. MAN-X-DVIPRO-DL-ADDER • Release 1.0a...
