ADDER AdderLink XD150FX Quick Start

Accessing the management application
AdderLink XD150FX modules generally configure themselves automatically, collecting EDID
information from the attached monitor and passing it to the host computer. In most cases the modules
will begin working together correctly as soon as they are connected. Where configuration changes are
required (or remote monitoring is required), the management application provides an intuitive user
interface.
To access the management application
1 Use a computer that is directly or indirectly (i.e. via a network switch) connected to the Ethernet
management port on the XD150FX transmitter module.
2 Run a web browser on your computer and enter the IP address of the transmitter module. Run a
web browser on your computer and enter the IP address of the transmitter module. By default, the
IP address is set to 192.168.1.22. If required, you can change the default IP address or alternatively,
choose automated address selection by DHCP server.
3 If requested, enter the registered user name and password to log on (the default user name and
password are 'admin' and 'password' respectively).

The Dashboard page should be displayed, which shows a real-time representation of the XD150FX
installation.

Use the menu on the left side to display other pages.

Use the Online Support option to make contact with Adder through the main website.

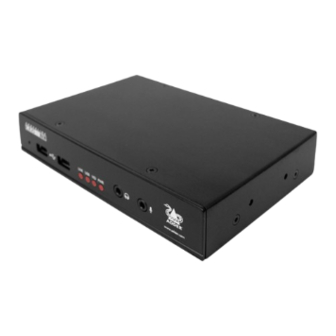

AdderLink XD150FX
Welcome
Thank you for choosing the AdderLink XD150FX extender modules. Using fiber optic links, these
compact modules allow you to transfer multiple connections (including dual link DVI-D and HD video)
up to 4 kilometers from a host computer.
The high grade screening employed within the metal cased enclosures combined with the immunity
from interference of the fiber optic links make the AdderLink XD150FX modules highly suitable for
use in 'noisy' industrial environments.
A
D
D
E
R
L
I
N
K
F X
L IN
K
L N
K
U S
B
V ID
P W
R
w w
w .a
d d e
r. co
m
A
D
D
E
R
L
I
N
K
F X

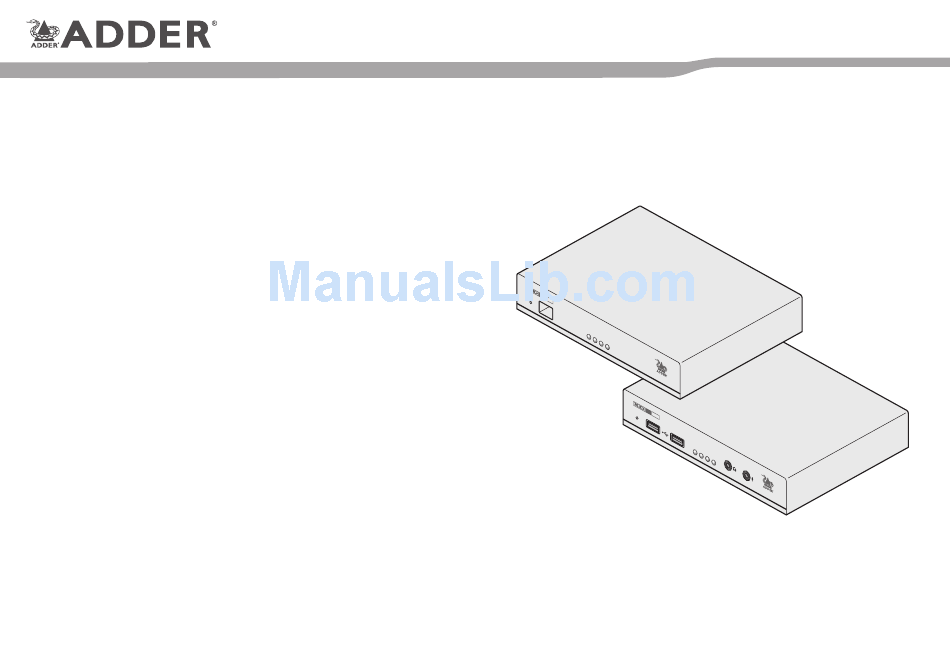

Receiver module
(connect to console peripherals)
What's in the box
• Transmitter and receiver modules
• 2 x Power adapters with locking connectors and country specific power cords
• 2 x matched SFP fiber optic modules (multi-mode SFP-MM-LC-4G or single-mode SFP-SM-LC-4G)
• Combined dual-link DVI-D video plus USB cable (2m)
• 2 x 3.5mm jack audio cables (3m)
• Information wallet
Quick Start
Transmitter module
(connect to host computer)
