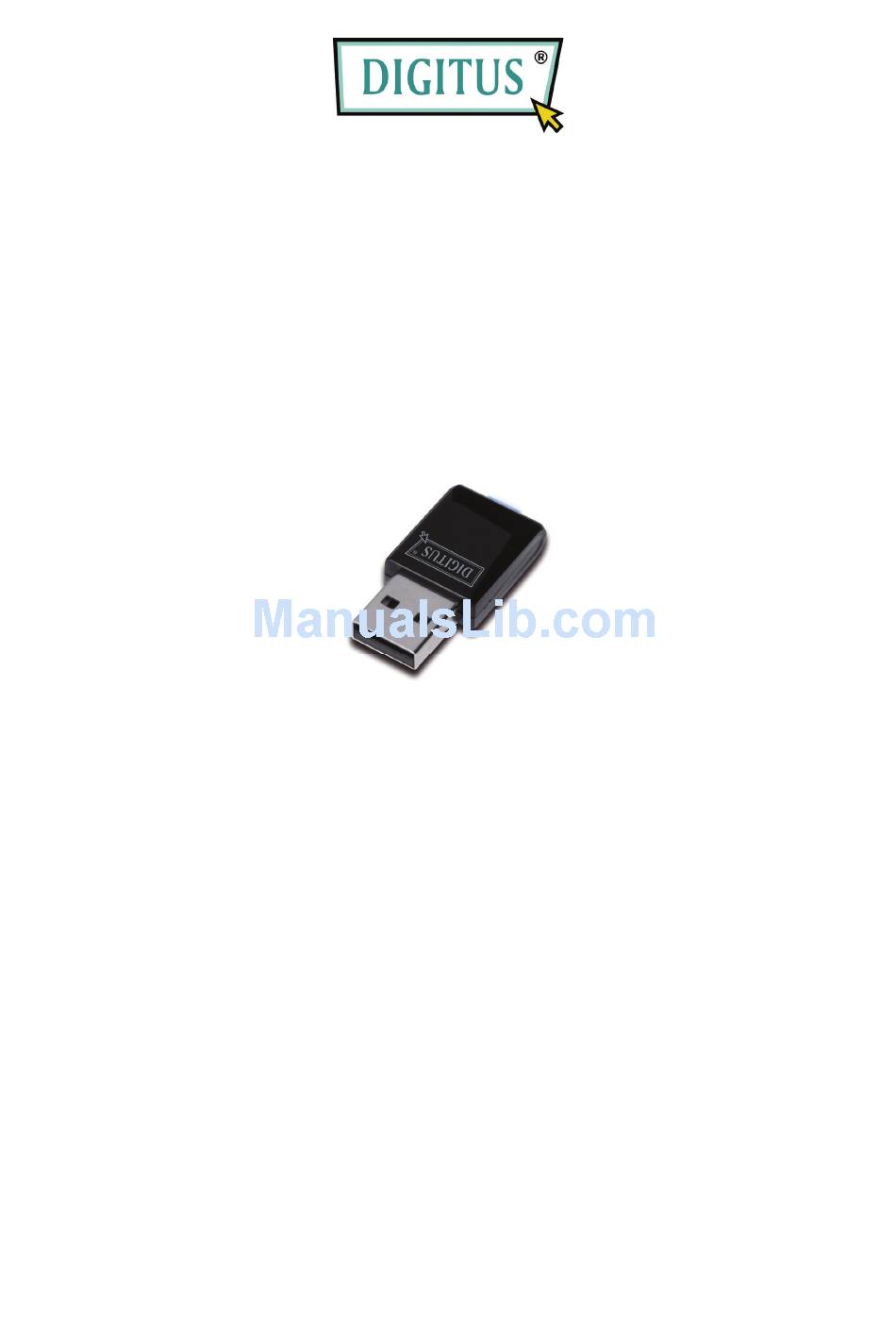

Page 1: User Manual
WIRELESS 150N USB 2.0 ADAPTER User Manual... - Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1: 2006 Safety of Information Technology Equipment EN 62311: 2008...
- Page 4 ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ Ελληνική [Greek] ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences Français [French] essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
-
Page 5: Table Of Contents
TABLE OF CONTENT Introduction ....................1 Overview of this User’s Guide ................1 Unpacking and Setup .................. 2 Unpacking ......................2 Setup ........................2 IDentifying external components ............... 3 LED ........................3 WPS Button ......................3 Software Installation ................... 4 Windows Based Utility Installation ................ -
Page 6: Introduction
INTRODUCTION Congratulations on your purchase of this Wireless N USB Adapter. This manual contains detailed instructions regarding the operation of this product. Please keep this manual for future reference. With the Wireless N USB Adapter, a desktop or laptop computer can communicate with another computer wirelessly. -
Page 7: Unpacking And Setup
UNPACKING AND SETUP This section provides unpacking and setup information for the Wireless N USB Adapter. Unpacking The box should contain the following items: One IEEE 802.11n draft 2.0 USB Adapter One Driver & Utility CD-ROM If any item is found missing or damaged, please contact your local reseller for replacement. -
Page 8: Identifying External Components
IDENTIFYING EXTERNAL COMPONENTS LED Status Description When the LED is blinking, the WLAN Adapter is transmitting or receiving data Slow Blink (1 blink/second) on the Wireless Ethernet network. After pressing the WPS button, the LED will flash 3 blinks/second. Once the connection is successfully established between the AP and the adapter, the LED Fast Blink (3 blinks/second) will remain solid for 5 seconds to tell the users that the connection has been... -
Page 9: Software Installation
SOFTWARE INSTALLATION This section describes how to install the driver and utility for the Wireless N USB Adapter. Windows Based Utility Installation 1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and then click Install Utility. 2) Follow the InstallShield Wizard Instructions... - Page 10 3) Click Finish to restart the computer. 4) Plug the Wireless N USB Adapter into an available USB slot on your computer.
-
Page 11: Wireless Utility Setting
WIRELESS UTILITY SETTING The user can configure the wireless settings using the Wireless Adapter Configuration Utility. Double-click the utility icon that appears in the taskbar. The Wireless Adapter Configuration Utility is divided into six sections: Link Info, Configuration, Site Survey, Profile, WPS and About. Link Information This is the default screen after launching the Utility program. -
Page 12: Configuration
Link Quality: Shows the link quality of the Wireless N USB Adapter with the Access Point when operating under Infrastructure mode. Signal Strength: Shows the wireless signal strength of the connection between the Wireless N USB Adapter with the Access Point. Data Rate: Shows the statistics of data transfer, and the calculation is based on the number of packets transmitted and received. - Page 13 Authtication: The following options are available: Open System, Shared Key, WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS . Select Open System, Shared Key for WEP data encryption feature. Open or Shared Key Open System and Shared Key require the user to set a WEP key to exchange data with other wireless clients that have the same WEP key.
- Page 14 WPA EAP-TLS If using the WPA/WPA2 EAP-TLS authentication method, please select the Encryption type for TKIP or AES then select the WPA/WPA2 Certificate from drop down list.
-
Page 15: Site Survey
Site Survey This screen allows the user to scan for available wireless networks (wireless clients and Access Points). It also allows the user to establish wireless communications with an available wireless network. Available Network – displays the wireless networks (wireless clients and access points) that are within range. -
Page 16: Profile
Profile Profile – The user can create and manage the created profiles for home, work or public areas. By double-clicking on one of the created profile, the setting will adjust to the specific setting such as SSID, channel, and encryption as saved by that particular profile. -
Page 17: Wps
Wi-Fi Protected Setup (WPS) is an optional certification program from the Wi-Fi Alliance that is designed to ease the task of setting up and configuring security on a wireless network. There are two methods used in the WPS as below instruction. Push the button on my access point Using the WPS configuration with the “Push the button on my access point”... - Page 18 4) If the WPS configuration was successful, the follow window will show on. 5) If the WPS configuration was failed, the follow window will show on.
- Page 19 Enter a PIN into my access point Using the WPS configuration with the “Enter a PIN into my access point” method, the configuration steps as below: 1) Selected the “Enter a PIN into my access point”, the PIN will be show on the button of the windows.
- Page 20 4) If the WPS configuration was successful, the follow window will show on. 5) If the WPS configuration was failed, the follow window will show on.
-
Page 21: About
About This screen displays information about the Wireless N USB Adapter, such as the Driver and Utility version. When a new version of the utility becomes available for upgrade, users will be able to identify by version numbers. -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS Hardware Interface USB 2.0 Compliant Standards IEEE 802.11n draft v2..0, IEEE 802.11b and IEEE 802.11g Antenna Integrated Printed Antenna LED Indicator Activity and WPS Supported OS Windows 2000, XP, Vista Dimensions 33.4 x 17 x 7 mm (LxWxH) Temperature Operating: 0°...
