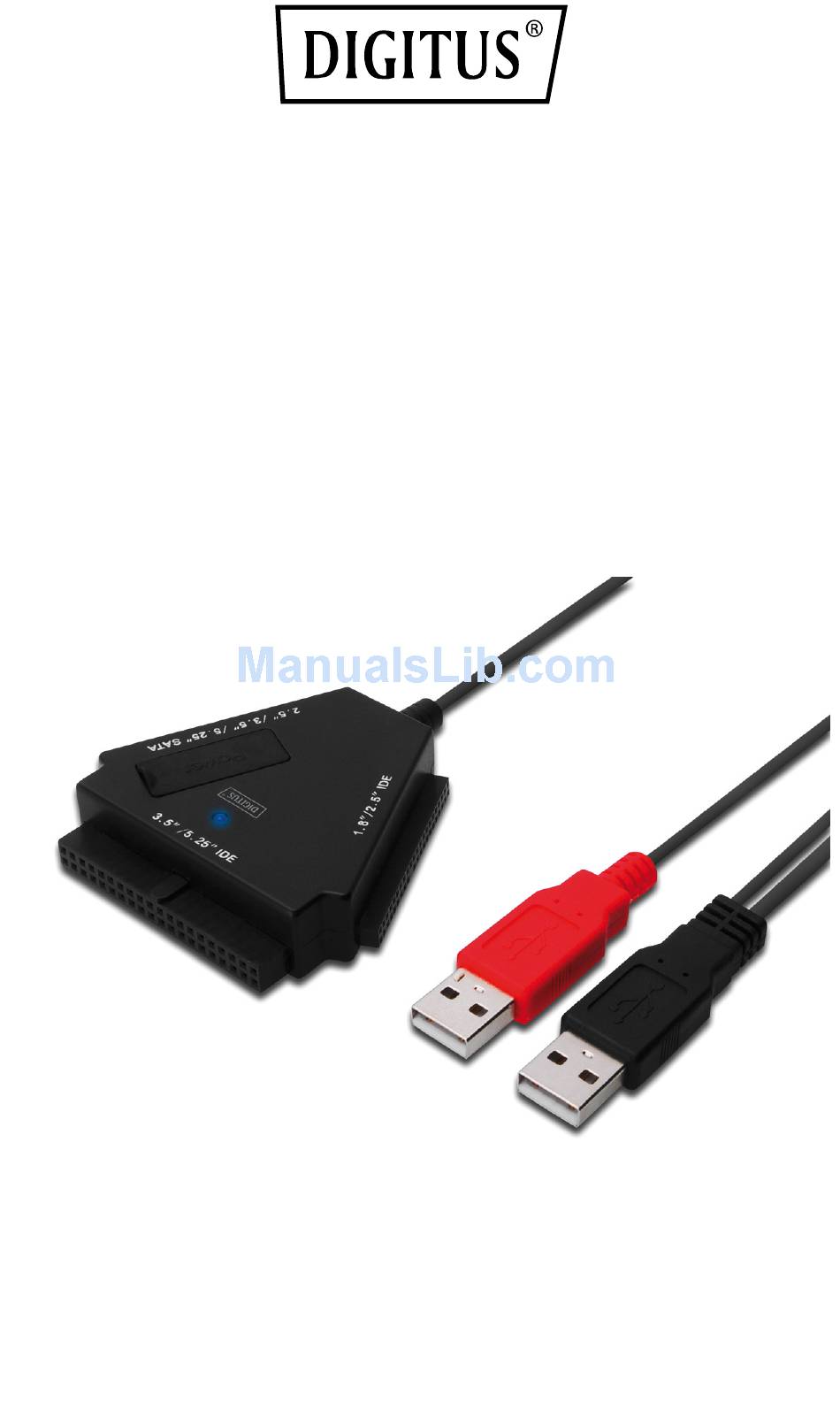

- Page 1 User Manual USB2.0 to IDE and SATA Adapter Cable Model: DA-70202...
-
Page 2: System Requirement
I. Foreword Congratulations on your purchase of our product! We will show you a new storage concept with safety and convenience. It is our pleasure to give you the best solution to expand your HDD'S Capacity and enhance your data's reliability in PC system or Mac system. - Page 3 4pin Power USB2.0 Power Plug(red) Power/Activity-LED (blue & red) USB2.0 Plug SATA Plug for 44-pin IDE plug for SATA device 1.8/2.5 IDE HDD 40-pin IDE plug for 3.5/5.25 IDE device Note: For 3.5/5.25 IDE devices, please plug in a 5V/12V power supply (not included) to appropriate port on the back side of HDD or DVD, so that the PC power switch (on/off) can’t control the current to HDD or DVD.
-
Page 4: Hardware Installation
V. Hardware installation Connect to a 2.5 SATA HDD SATA Plug b. Connect to a 2.5 IDE HDD 44pin IDE Plug For a 2.5 SATA HDD or IDE HDD, plug directly the SATA connector or the 44pin connector into the appropriate ports on the rear of the HDD, and plug the USB signal/data plug (Black) into USB port of PC. - Page 5 c. Connect to a 3.5 SATA HDD 3.5 SATA HDD 5V/12V Power supply (Please see chapter VIII. How to use power supply from your desktop computer). Alternatively, you can use 5V/12V external power supply . Connect to a 3.5 IDE HDD 3.5 IDE HDD 5V/12V Power supply For a 3.5 SATA HDD or a 3.5 IDE HDD, plug directly the...
-
Page 6: Driver Installation
e. Connect to a 5.25 IDE HDD 5V/12V Power supply For a 5.25 CD/DVD device, plug directly the 40pin connector into the appropriate ports on the rear of the CD/DVD device, and plug the USB signal/data plug (Black) into USB port of PC, then plug the 4-pin plug of the power supply to the 4-pin power jack (for IDE CD/DVD direct plug in CD/DVD power connector), and the other end plug to power source. - Page 7 VII. Under the following situation, you need to use 5V/12V Power supply 1) When connects with the 3.5 / 5.25 SATA devices ( HDD, CD ROM , DVD Rom ) 2) When this product connect with 3.5 / 5.25 IDE devices ( HDD , CD Rom , DVD Rom ) 3) Connecting with the 2.5 SATA HD, when the power consumption is bigger than 1A...
- Page 8 VIII. How to use the device with power supply from computer 1. Plug DA-70202 into USB port 2. Plug 3,5HDD into the correspondent port ( SATA/IDE) Point 3. Plug the power for supplying mentioned devices in . from computer...
- Page 9 Also, for 5,25 devices Connect from the 4 pin power connector of the power supply to DA-70202 (4Pin DC) supply Power...
- Page 10 Disclaimer A l l t h e i n f o r m a t i o n i n t h i s d o c u m e n t i s s u b j e c t t o c h a n g e w i t h o u t p r i o r n o t i c e . T h e m a n u f a c t u r e r m a k e s n o r e p r e s e n t a t i o n s o r a n y w a r r a n t i e s r e g a r d i n g t h e C o n t e n t s o f t h i s...
