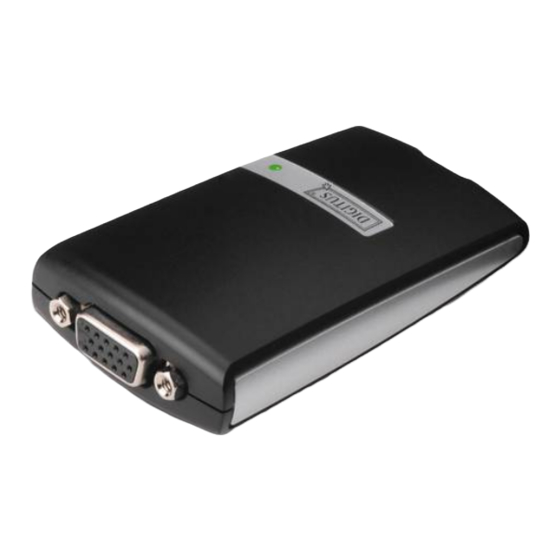

- Page 1 HIGH PERFORMANCE USB 2.0 GRAPHIC ADAPTER User Manual (DA-70831 / DA-70832)
-
Page 2: Table Of Contents
ONTENTS ..................3 ..................3 EATURES ..............3 YSTEM EQUIREMENTS ................ 3 ACKAGE ONTENTS : ........ 4 UPPORTED OMMON ISPLAY ESOLUTION : ............4 ECHNICAL PECIFICATIONS P ..........5 ............5 EVICE RIVER NSTALLATION ........7 ERIFYING EVICE RIVER NSTALLATION .......... -
Page 3: I N T R O D U C T I On
ANUAL Thank you for purchased the USB 2.0 . The USB 2.0 GRAPHIC ADAPTER GRAPHIC enables you to connect one display devices (CRT/LCD monitor, projector) ADAPTER to your desktop or notebook PC. The connected display can act as mirrored or extended desktop of the main display on your PC. -
Page 4: Supported Common Display Resolution
ANUAL UPPORTED OMMON ISPLAY ESOLUTION Refresh Rate USB-VGA USB-DVI Resolution Frequency 800 * 600 16bit, 32bit 16bit, 32bit 60Hz,75Hz 1024 *768 16bit, 32bit 16bit, 32bit 60Hz,75Hz 1152 * 864 16bit, 32bit 16bit, 32bit 60Hz 1280 * 720 16bit, 32bit 16bit, 32bit 60Hz 1280 * 768 16bit, 32bit... -
Page 5: I N S T A L L A T I O N O N W I N D O W S 2 / Xp
ANUAL EVICE RIVER NSTALLATION Installing the device driver enables your computer’s operating system to recognize the USB D once it’s connected. Please check your operating ISPLAY DAPTER system and refer to the appropriate installation procedure to begin installing the device driver. This section illustrates the simple device driver installation procedure for computer running Windows 2000 / XP operating system. - Page 6 ANUAL Step 4. Setup is searching for installed features….. *You may notice the screen flashes during hardware installation. It is part of the normal process. Step 5. Please select “Yes, I want to restart my computer now” and click “Finish” to complete the software installation.
-
Page 7: Verifying Device Driver Installation
ANUAL ERIFYING EVICE RIVER NSTALLATION The following procedure allows you to verify the device driver installation. Please right click “My Computer” → “Properties” → “Hardware” → “Device Manager”. Plug-in the USB D , then double click “Display adapters”, and ISPLAY DAPTER “Universal Serial Bus controllers”. - Page 8 ANUAL Multiple USB Display Adapter installation on the computer...
-
Page 9: Device Driver U N - Installation
ANUAL EVICE RIVER INSTALLATION Step 1. Start menu: Click “Start” → “ “Control Panel” → “Add or Remove Programs” Select “ USB Display Device (Trigger 1+) 9.xx.xxxx.0159” ( driver ver.) Click “Remove” button. Step 2. Unplug the USB D ISPLAY DAPTER and click “OK”... -
Page 10: I N S T A L L A T I O N O N W I N D O W S V I S Ta
ANUAL EVICE RIVER NSTALLATION Installing the device driver enables your computer’s operating system to recognize the USB D once it’s connected. Please check your operating ISPLAY DAPTER system and refer to the appropriate installation procedure to begin installing the device driver. This section illustrates the simple device driver installation procedure for computer running Windows Vista operating system. - Page 11 ANUAL Step 4 Setup is searching for installed features... *You may notice the screen flashes during hardware installation. It is part of the normal process. Step 5 Please select “Yes, I want to restart my computer now”. Then, click “Finish” to complete the software installation.
- Page 12 ANUAL To make sure the USB Display Adapter worked correctly, please reboot the computer after finished the installation. After reboot the computer, you will see an icon on the lower right toolbar, and the extended display will be shown on the attached display device.
-
Page 13: Verifying Device Driver Installation
ANUAL ERIFYING EVICE RIVER NSTALLATION The following procedure allows you to verify the device driver installation. Please right click “Computer” → “Properties” → “Device Manager”. Plug-in the USB D , then double click “Display adapters”, and ISPLAY DAPTER “Universal Serial Bus controllers”. It will show the new directions as below, Single USB Display Adapter installation on the computer... - Page 14 ANUAL Multiple USB Display Adapter installation on the computer...
-
Page 15: Device Driver U N - Installation
ANUAL EVICE RIVER INSTALLATION Step 1. Access Program Uninstall: Click “Start” →“Control Panel”. Under “Programs and Features” click “Uninstall or change a program” Look for “ USB Display Device (Trigger 1+) 9.xx.xxxx.0159” (driver ver.) Click “Uninstall” button. Step 2. Unplug the USB D ISPLAY DAPTER and click “OK”... -
Page 16: F U N C T I O N D E S C R I P T I On
ANUAL This section describes several friendly functions provided by the USB-D ISPLAY designed to ease your single or multiple USB display experience. A DAPTER display device described in this section means devices such as CRT, LCD monitor, TV display, projector. USB D CCESS ISPLAY... -
Page 17: Display Rotation
ANUAL ISPLAY OTATION 4 options available: “0°, 90°, 180°, 270° under the Extended or Primary display modes. It is a useful function for some rotatable display device. ISPLAY ODES “E ” XTENDED DISPLAY MODE EFAULT A default display mode; this feature allows the attached USB Display enabled display device to work as “Extended”... -
Page 18: Identify Monitors
ANUAL “P ” RIMARY DISPLAY MODE A unique feature to allow USB Display enabled device to act as the main working display. The USB Display Adapter will work as the main graphics adapter of the system. The on-board screen will work as the extended display. -
Page 19: Multi -Display Control Panel
ANUAL ULTI ISPLAY ONTROL ANEL An unique feature to allow much quicker and simpler working experience under multi-display environment. A series of hotkey to quickly move active window or cursor to the desired display device (either on-board or each USB Display enabled devices). -
Page 20: Q & A
ANUAL & & This section describes the common Q&A regarding to the installation or operation of the USB D ISPLAY DAPTER Q: Why can’t I make the USB the primary display? ISPLAY DAPTER A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card. -
Page 21: T R O U B L E S H O O T I N G T I Ps
ANUAL This section describes the general troubleshooting tips regarding to the installation or operation of the USB D ISPLAY EVICE Known Issues - Windows Vista Aero mode support will be available at MP version driver update (WDDM). WDDM driver update is also aimed to resolve most of video playback compatibility issue under Windows Vista. -
Page 22: Others
ANUAL K- Lite: http://www.free-codecs.com/download/K_Lite_Codec_Pack.htm Video/Media players have different decoding capability under different display modes. For better performance on watching DVD or certain video format on the USB graphics device attached display, it is recommended to use the following license free software. VLC Media Player: http://www.videolan.org/vlc/ Media Player Classic:... -
Page 23: Regulatory Compliance
ANUAL EGULATORY OMPLIANCE This equipment has been tested and found to comply with FCC Part 15 Subpart B § 15.109/15.107 Class B. Operation is subject to the following two conditions: • This device may not cause harmful interference • This device must accept any interference, including interference that may cause undesired operation of the device.
