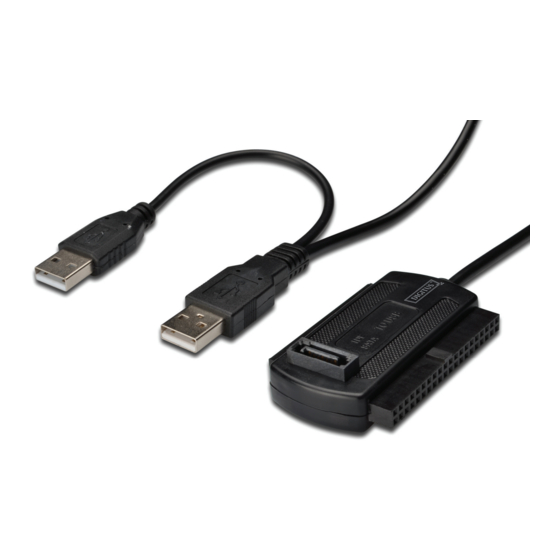

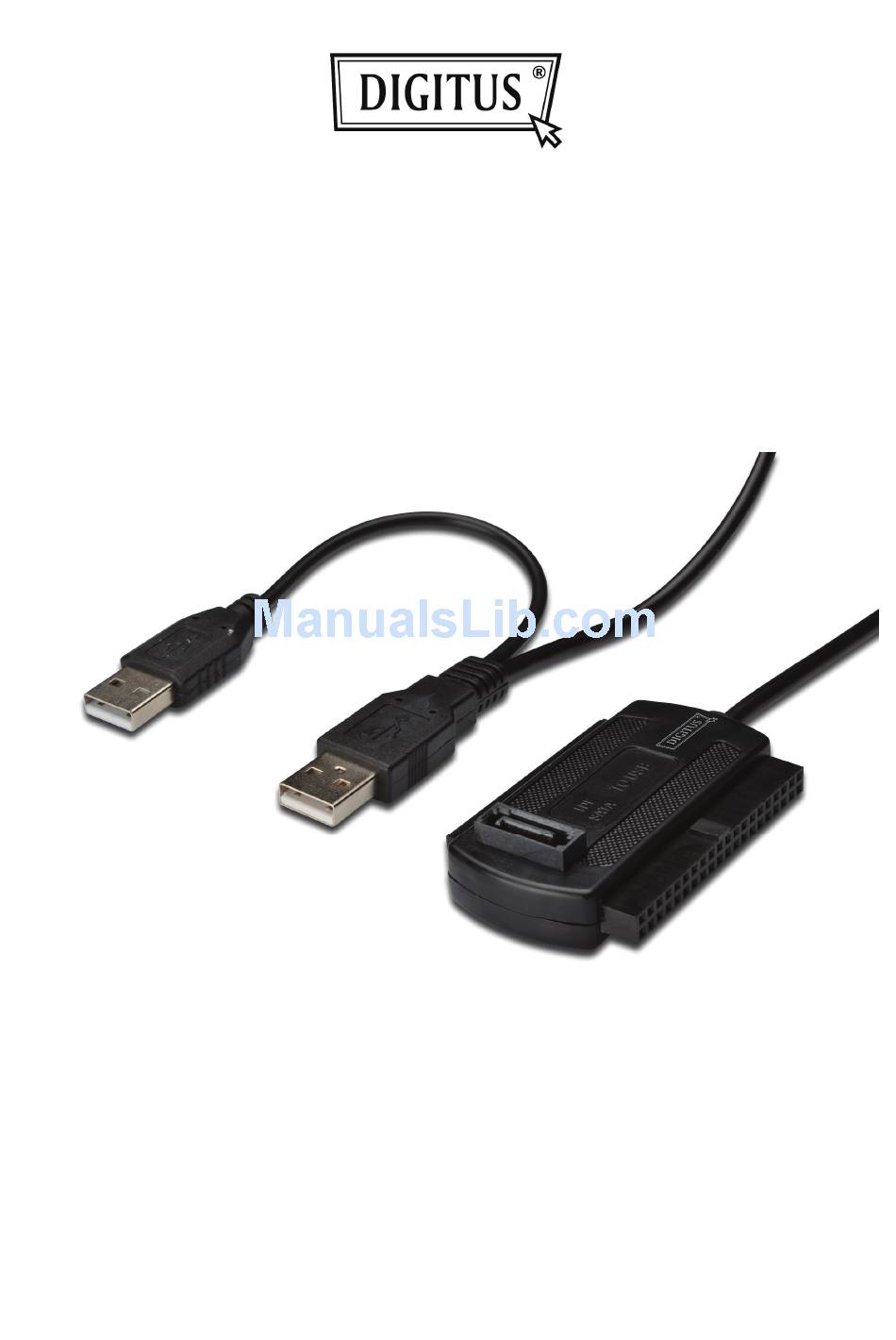

- Page 1 USB 2.0 TO IDE/SATA ADAPTER CABLE User Manual DA-70148-3...
-
Page 2: Product Introduction
1. Characteristics Support SATA spread-spectrum transmitter Support SATA II Asynchronous Signal Recovery (Hot Plug) feature Compliance with USB 2.0 (Hi-Speed USB) electrical specification Compliance with USB Mass Storage Class Bulk-Only Transport Specification Support 480Mbps High Speed (HS) and 12Mbps Full Speed USB operation ... - Page 3 3. Tips for HDD INSTALLATION For 2.5’’/3.5’’ SATA HDD (1) Have SATA Hard Drive to connect with ER CABLE. (2) Have the external Power Adapter connect with USB 2.0 TO IDE/SATA ADAPTER CABLE. (3) Have USB 2.0 TO IDE/SATA ADAPTER CABLE connect with and your computer, then power on, your computer system will detect the SATA HDD.
- Page 4 For 3.5’’ IDE HDD (1) Have the 3.5’’ IDE HDD connect with USB 2.0 TO IDE/SATA ADAPTER CABLE. (2) Have the external Power Adapter connect with USB 2.0 TO IDE/SATA ADAPTER CABLE. (3) Have USB 2.0 TO IDE/SATA ADAPTER CABLE connect with your computer, then power on, your computer system will detect the IDE HDD.
- Page 5 For 2.5’’ IDE HDD (1) Have 2.5’’ IDE HDD connect with USB 2.0 TO IDE/SATA ADAPTER CABLE. (2) Have USB 2.0 TO IDE/SATA ADAPTER CABLE connect with your computer, then power on, your computer system will detect the IDE HDD.
- Page 6 NOTES: Our product USB 2.0 TO IDE/SATA ADAPTER CABLE can support 2.5’’/3.5’’ SATA & IDE HDD synchronously, please refer to the below application image. Connect to PC Power supply...
-
Page 7: Software Installation
4. Software Installation Before installation, please connect the hard disk to the USB 2.0 to SATA II + IDE Adapter Cable Windows 98SE After installing the driver, please restart the computer, and then plug the USB 2.0 to SATA II + IDE Adapter Cable into the computer. - Page 8 5. Verification Please track the path "My computer” and "My computer” -- > “System Properties” -- > “Device Manager" and expand the item "Hard disk controllers”, you should meet the following screen.
-
Page 9: Remove Driver
6. Remove Driver 1) Pull out USB 2.0 to SATA II + IDE Adapter Cable from the USB port of the computer 2) Then, Open the program "Add or Remove Programs", according to the following pass: Start/ Control Panel/ Add or Remove Programs. 3) When the following screen displays, Please click ‘... - Page 10 8. FAQ Q: I could see the icon at the right down comer on the screen, but I still couldn't find my external HDD. A: a. Please make sure your HDD has been installed correctly. b. Please make sure your HDD has been set in "Master" position, c.
