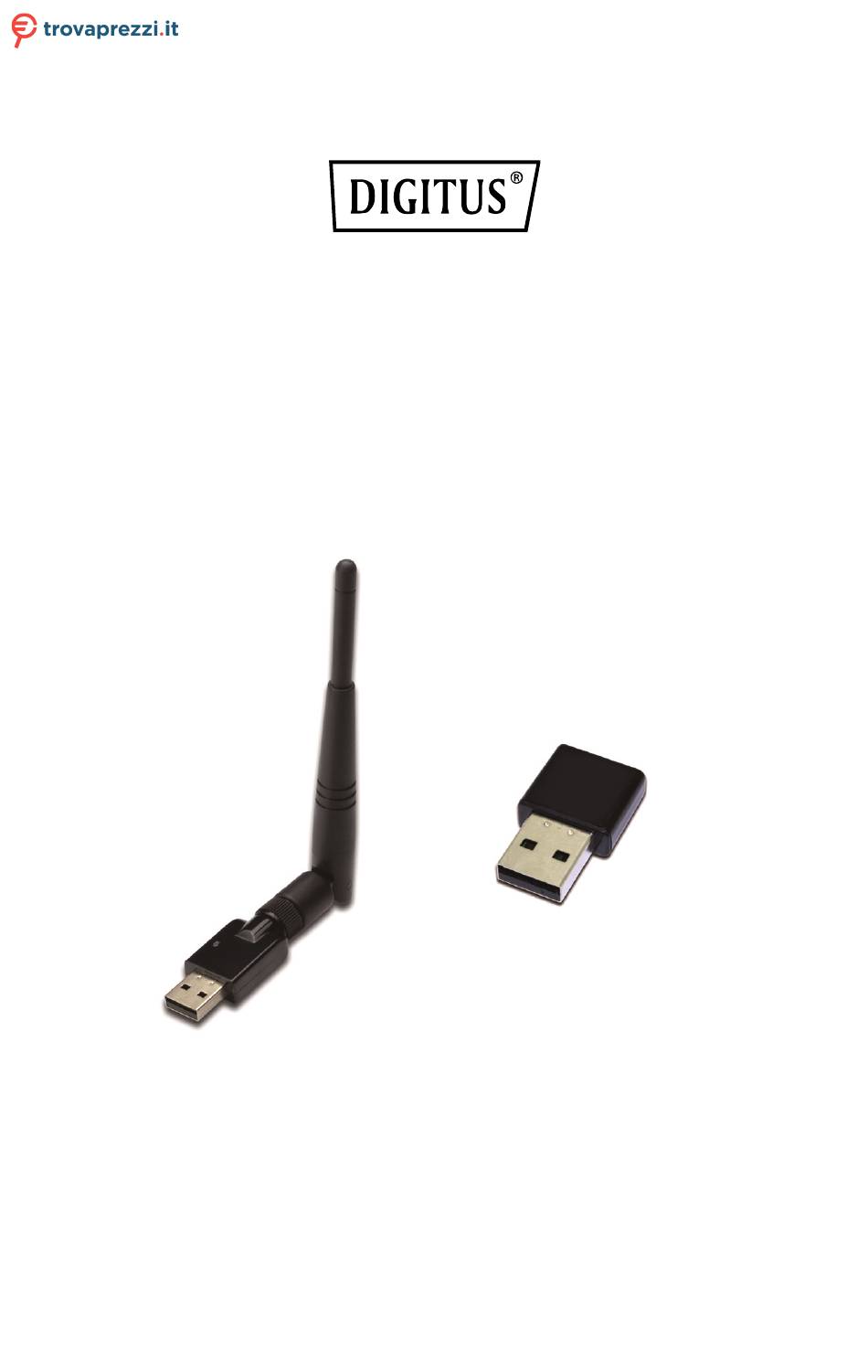

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Digitus DN-70543 cerca il tuo prodotto tra le migliori offerte di Schede di Rete WIRELESS 300N USB 2.0 INTERNET ADAPTER User Manual DN-70542 Rev.2 • DN-70543 Rev.2...
-
Page 2: Table Of Contents
Content CHAPTER 1. Introduction ................ 3 1.1 Product Features ..................3 1.2 Package contents ..................3 1.3 Indicator Description ..................3 CHAPTER 2: Quick Installation Guide ............. 4 2.1 Driver Installation ..................4 2.2 Connect to Wireless Access Point ..............7 2.2.2 Using Windows Zero Configuration ............. -
Page 3: Chapter 1. Introduction

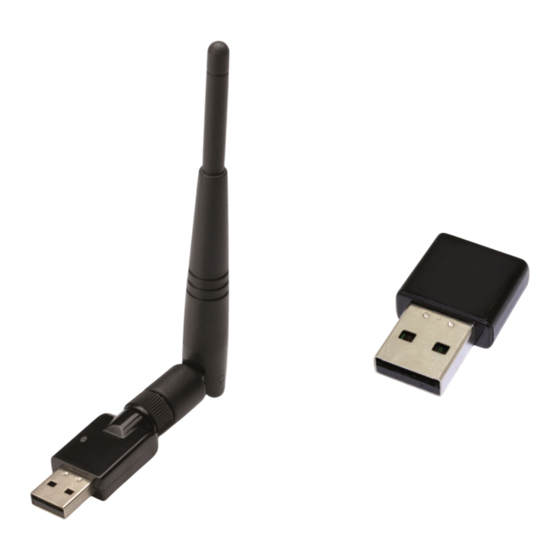

CHAPTER 1. Introduction DIGITUS new 2T2R wireless 802.11b/g/n USB adapter series comes with two models. DN-70542 is the mini-size version whereas DN-70543 integrates external detachable dipole antenna for better transmission and reception. In addition to the common wireless standards 802.11b/g, this new wireless adapter series is also 802.11n compatible with data transfer rate up to 300Mbps, which is three times faster than 802.11g wireless network! -
Page 4: Chapter 2: Quick Installation Guide
CHAPTER 2: Quick Installation Guide This chapter describes how to use the included CD-ROM which includes the Driver and the Client Utility. 2.1 Driver Installation Please follow the below instructions to install the Wireless USB Adapter: 2.1.1 Insert the USB wireless network adapter into an available USB 2.0 port of your computer. - Page 5 2.1.3 Insert the driver CD into your CD-ROM. You can see autorun screen below. If not, you can double click ‘autorun.exe’ on CD. Click ‘Install Driver’ to start the installation procedure 2.1.4 Installation wizard will then be shown. Click ‘Next’ to continue.
- Page 6 2.1.5 Once the installation is finished the computer will be asked to reboot. You can click ‘Finish’ and reboot the computer to finish the driver installation.
-
Page 7: Connect To Wireless Access Point
2.1.6 A new icon will appear near the clock of system tray: Left-click the icon will launch wireless network configuration utility, and you can right-click the icon to show the quick menu of configuration utility. This icon also uses different color to show the status of wireless connection: Wireless connection is established, good signal reception. - Page 8 2. Wireless utility will appear. Click ‘Available Network’ menu to search for wireless access points nearby. 3. Please wait for a while, and all wireless access points which can be reached by this wireless network card will be displayed here.
- Page 9 If the wireless access point you wish to connect does not appear here, you can click ‘Refresh’ button to scan for wireless access points again; if the wireless access point you’re looking for still not appear, try to move the computer closer. When the access point you’re looking for is on the list, left-click it and then double click it or click ‘Add to Profile’.
- Page 10 Profile name You can give a name to this profile, so you can remember its purpose easily. It can be any phrase to help you remember. Network Name (SSID) The SSID (Service Set IDentifier, i.e. access point’s name). This field will be filled as the access point you selected when SSID is not hidden and grayed out.
- Page 11 5. Network card will attempt to connect to access point now, this may require few seconds to minutes, please be patient. When the ‘Status’ become ‘Associated’ , your computer is connected to access point you selected. Click ‘Close’ to close configuration menu.
-
Page 12: Using Windows Zero Configuration
2.2.2 Using Windows Zero Configuration Windows XP and Vista has a built-in wireless network configuration utility, called as ‘Windows Zero Configuration’ (WZC). You can also use WZC to configure your wireless network parameter: 1. Right-click Client configuration utility icon, and click ‘Open Config Utility’. 2. - Page 13 3. A message indicating that you’ve been switched to Windows Zero. NOTE: To return to use Client utility, uncheck ‘Windows Zero Config’ box. 4. Click ‘Start’ button (should be located at the bottom-left corner of windows desktop), click ‘Control Panel’, then click ‘Network and Internet Connections’ in Control Panel.
- Page 14 5. Double click ‘Network Connections’. 6. Right-click ‘Wireless Network Connection’ (it may have a number as suffix if you have more than one wireless network card, please make sure you right-click the Wireless LAN 802.11n USB Network Adapter), then select ‘View Available Wireless Networks’.
- Page 15 7. All wireless access points in proximity will be displayed here. If the access point you want to use is not displayed here, please try to move your computer closer to the access point, or you can click ‘Refresh network list’ to rescan access points. Click the access point you want to use if it’s shown, then click ‘Connect’.
- Page 16 9. If you can see ‘Connected’ message, the connection between your computer and wireless access point is successfully established.
-
Page 17: Chapter 3: Client Utility
CHAPTER 3: Client Utility 3.1 Connection Profile Management If you need to connect to different wireless access points at different time, like of access point of your home, office, cybercafe, or public wireless service, you can store the connection parameters (encryption, passphrase, security etc, etc.) as a profile for every access point, so you don’t have to input these parameters every time when you want to connect to a specific wireless access point. -
Page 18: Add A New Profile
3.1.1 Add a new profile By this function you can setup the connection parameters for a specific wireless access point in advance, without contacting it first. If you want to create a new profile, click ‘Profile’ menu, then click ‘Add’ button. You’ll be prompted to input connection parameters for the wireless access point you wish to connect:... - Page 19 Required parameters are: Profile name You can give a name to this profile, so you can remember its purpose easily. It can be any phrase to help you remember. Network Name (SSID) The SSID (Service Set IDentifier, i.e. access point’s name). This must be identical with the SSID of the access point you wish to connect.
-
Page 20: Remove An Existing Profile
3.1.2 Remove an existing profile When you no longer need an existing profile, you can remove it. If you want to remove a profile, click ‘Profile’ menu, then select an existing profile which you wish to remove, and then click ‘Remove’ button. 3.1.3 Edit an existing profile If you have added a profile before, and you wish to change the content of the profile, you can use this function. -
Page 21: Make A Copy Of Existing Profile
3.1.4 Make a copy of existing profile If you need to make a copy of a specific profile, you can use this function. This function is very convenient when you need to build a new profile which parameters are similar to any existing profile. To do this, select an existing profile, then click ‘Duplicate’... -
Page 22: View Network Statistics, General Information, And Status
3.2 View Network Statistics, General Information, and Status The configuration utility provides information about network statistics and link status. If you want to know how your wireless network card works, you can use these functions to get detailed information about the wireless connection you’re using. 3.2.1 General Information If you want to know the general information of the access point you’re connecting to, click ‘General’... -
Page 23: Status
3.2.2 Status If you want to know the status of your wireless network card, click ‘Status’ menu: 3.2.3 View Network Statistics To view the statistical data of wireless network card, click ‘Statistics’ menu, and the statistics of wireless connection will be displayed: All connection-related statistics is displayed here. -
Page 24: Miscellaneous Settings
3.3 Miscellaneous Settings There are few functions provided by Client configuration utility, you can access these functions from the bottom of configuration menu: The descriptions of these function are listed as follow: Show Tray Icon Check this box to show an icon on system tray. Uncheck this box to hide it. -
Page 25: Establish Secure Connection With Ap By Wps
3.4 Establish secure connection with AP by WPS Wi-Fi Protected Setup (WPS) is the latest wireless network technology which makes wireless network setup become very simple. If you have WPS-enabled wireless access point, and you want to establish a secure connection to it, you don’t have to configure the wireless access point and setup data encryption by yourself. - Page 26 2. Click ‘Wi-Fi Protect Setup’ menu. 3. You can use PIN code or Push-Button configuration, and WPS-compatible wireless access point must use the same type of WPS. For instructions on setup each type of WPS, see next 2 chapters for detailed instructions.
-
Page 27: Pin Code
3.4.1 PIN Code To use PIN Code, please click ‘Pin Input Config (PIN)’ button: You’ll be prompted to select an access point you wish to connect. If you know its SSID, click ‘Yes’, otherwise click ‘No’. If you select ‘Yes’, a list of all WPS-compatible AP nearby will be displayed; you can click ‘Refresh’... -
Page 28: Push Button
After you select ‘Yes’ or ‘No’ in previous step, network card will attempt to connect to WPS-compatible AP, and an 8-digit number will appear. Please input this number to AP’s configuration menu within 2 minutes, and network card will establish secure connection with AP automatically. -
Page 29: Chapter 4 Soft-Ap Function
After you click “Push Button Config(PBC)”, a message box will appear: Please activate Push-Button function on wireless access point now, and wireless network card will establish secure connection with access point within one minute. CHAPTER 4 Soft-AP Function Excepting become a wireless client of other wireless access points, this wireless adapter can act as a wireless service provider also! You can switch this wireless adapter’s operating mode to ‘AP’... - Page 30 After mode switch is complete, you’ll see general information of software AP, which shows AP’s SSID and connected wireless clients. Client mode icon : Software AP icon:...
-
Page 31: Configure Ssid And Channel
4.1.1 Configure SSID and Channel To configure software AP, click ‘Config’ button: The ‘Wireless Network Properties’ is displayed. -
Page 32: Setup Soft-Ap Security
Please note that Ad-Hoc mode is not available when network card is in AP mode. The description of major setup items are listed below: Network Name Please input the SSID (the name used to identify this (SSID) wireless access point) here. Up to 32 numerical characters can be accepted here, excepting space. -
Page 33: Advanced Settings
The description of setup items about wireless security are listed below: Network Select network authentication mode from dropdown menu. Authentication Data Encryption Select data encryption method from dropdown menu. ASCII If the encryption method is WEP, check either ‘ASCII’ or PASSPHRASE ‘PASSPHRASE’... -
Page 34: Wireless Statistics
The description of all setup items are listed below: Beacon Interval Please input wireless beacon time interval here. DTIM Period Please input DTIM (Delivery Traffic Indication Message) here. Preamble Mode Select wireless frame preamble mode (long or short) from dropdown menu. Set Defaults Reset all settings back to factory default value. -
Page 35: Internet Connection Sharing (Ics)
4.4 Internet Connection Sharing (ICS) In this page, you can assign a network card on your computer as the path for all wireless clients to get connected to Internet. If you have only one network card (except this software access point), you don’t have to select network card here;... - Page 36 wireless access point or wireless device is located. Nothing happens 1. Please make sure the wireless network card is inserted into when I click ‘Open your computer’s USB port. Config Utility’ 2. Reboot the computer and try again. 3. Remove the card and insert it into another USB port. 4.
