Samson Stage 200 Owner's Manual

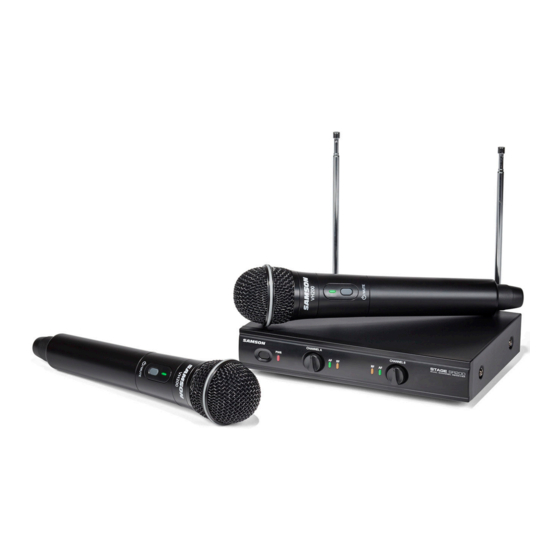

Dual-channel vhf wireless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Samson Stage 200

Summary of Contents for Samson Stage 200

  • Page 1 OWNER'S MANUAL...
  • Page 2 Copyright 2016, Samson Technologies Corp. Samson Technologies Corp. 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...

  • Page 3: Important Safety Information

    YOU CAN HELP TO PROTECT THE ENVIRONMENT! Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste disposal center. Stage 200: Dual Handheld Wireless System...
  • Page 4 Important Safety Information FCC Rules and Regulations Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 74. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected.
  • Page 5 19. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 20. The AC plug considered as disconnect device of adapter. Stage 200: Dual Handheld Wireless System...
  • Page 6 With the Stage 200 system, you’ll have great sound quality with clear reception, and the ability to walk freely around your venue. For any live sound application (karaoke, presentation, education, house of worship, etc.) the Stage 200 is the ideal tool for your dual-performer needs. The Stage 200 provides outstanding performance and reliability.
  • Page 7 Receiver Channel / Frequency Color Receiver Channel / Frequency Color CH 11 / 208.2 MHz Brown CH 37 / 207.675 MHz Green CH 28 / 195.4 MHz Black CH 38 / 184.35 MHz Purple Stage 200: Dual Handheld Wireless System...
  • Page 8 SR200 Receiver Rear Panel Features Antenna - The antenna mountings allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position. The antennas can be folded down for convenience when transporting the SR200. 10.
  • Page 9 WARNING: Do not insert the battery backwards; doing so can cause severe damage to the VH200 and will void your warranty. Battery Cover - Unscrew the battery cover and slide down to open the VH200 battery compartment. Stage 200: Dual Handheld Wireless System...

  • Page 10: Squelch Control

    (that is, if you hear some noise), you may need to adjust the receiver’s rear panel Squelch control. When the Squelch control is at the “LO” setting, the Stage 200 system provides maximum range without dropout; however, depending upon the particular environment your system is used in, you may need to reduce that range somewhat in order to eliminate band noise or interference when the transmitter is turned off.

  • Page 11: Quick Start Guide

    Quick Start Guide Follow these basic procedures for setting up and using your Stage 200 Wireless System. 1. Connect the SR200 receiver power adaptor to the rear panel DC input, and then to an electrical outlet. Fully extend the antennas vertically.

  • Page 12: Microphone Usage

    Volume knob of the SR200 in order to further attenuate the output signal. 7. When first setting up the Stage 200 System in a new environment, it is a good idea to do a walk-around in order to make sure that coverage is provided for your entire performance area.

  • Page 13: Overall System Specifications

    Current Consumption 100 mA typical Dimensions ø2.2” x 10” ø55mm x 255mm Net Weight 0.49lb 0.22kg At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. Stage 200: Dual Handheld Wireless System...

  • Page 14: Troubleshooting

    Audio Dropout Remove any sources that may cause RF interference, such as cell phones, cordless phones, lighting equipment, computers, etc. Transmitters and Contact your Samson reseller or distributor for assistance. Receiver on Different Channels...

  • Page 15: R&Tte Declaration Of Conformity

    Vice President Engineering Date: 2/25/2016 Hereby, Samson Technologies Corp., declares that this Stage 200 (RX: SR200, TX: VH200) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at: www.samsontech.com/samson/products/wireless-systems/stage-series/stage200/#downloads-and-manuals-tab...

  • Page 16: Phone: 1-800-3-Samson

    Samson Technologies 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com...
