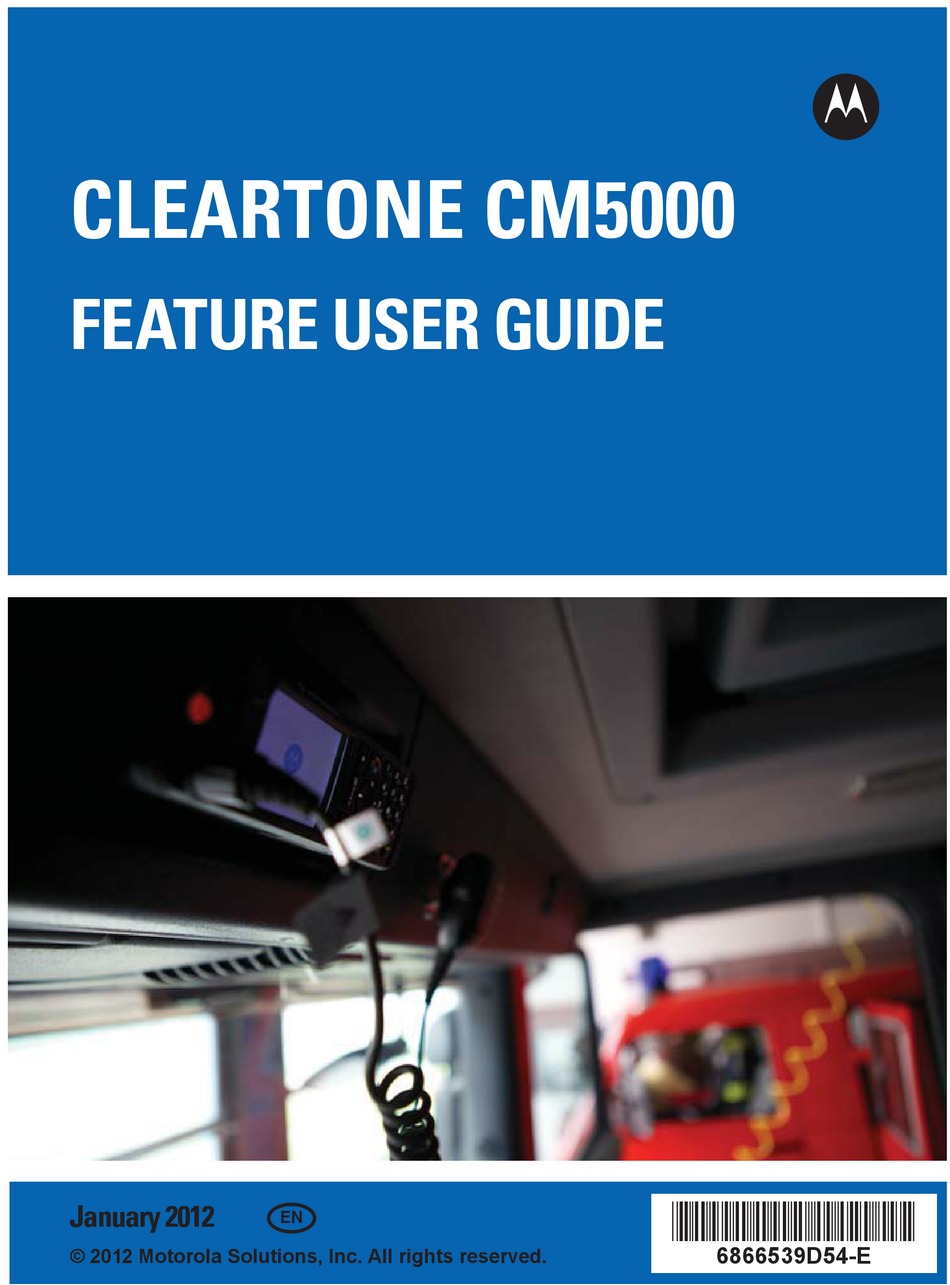

CLEARTONE CM5000
FEATURE USER GUIDE
January 2012
*6866539D54*
EN
6866539D54-E
© 2012 Motorola Solutions, Inc. All rights reserved.
