Hyundai H- CCR8083 Instruction Manual

Hyundai H- CCR8083 Instruction Manual

Car cassette receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

H- CCR8083
CAR CASSETTE RECEIVER
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H- CCR8083

Summary of Contents for Hyundai H- CCR8083

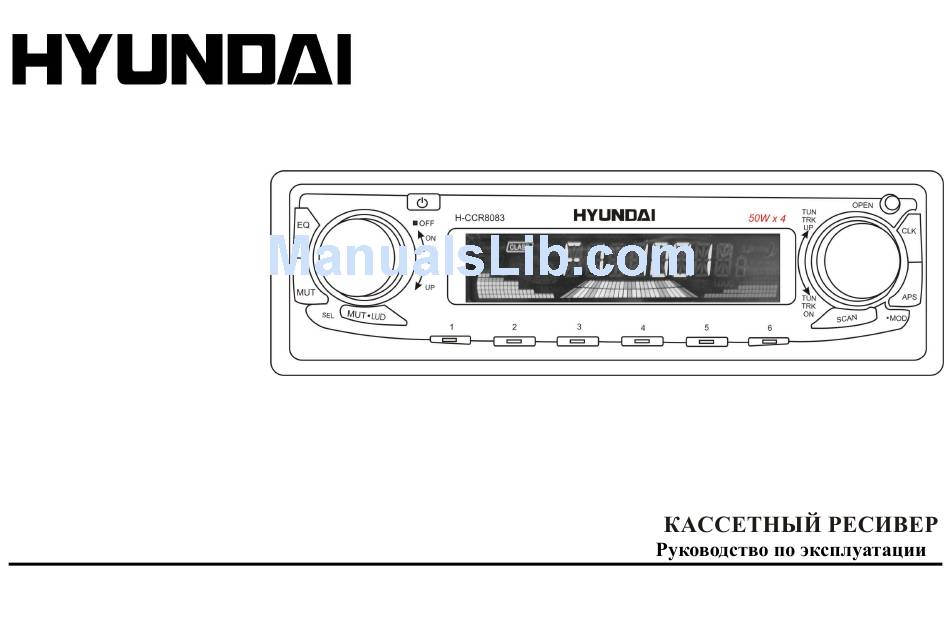

  • Page 1 H- CCR8083 CAR CASSETTE RECEIVER Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..................................2 Important safeguards.................................

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Use only in a 12-volt DC negative-ground electrical system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. The unit can be installed with the two methods. · This unit is designed to operate on 12 volt DC, negative ground electrical system only. Do not attempt to install this unit in a vehicle having a positive ground system.
  • Page 5 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap 7. Plain washer Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm),depending on the shape of the screw holes in the bracket.
  • Page 6 Remove the detachable panel 1. Switch off the power of the unit. 2. Remove the detachable panel. 3. Gently press the button of the case and open the cover. 4. Place the panel into the case and take it with you when you leave the car. 5.
  • Page 7 Electrical connections Note: · In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. · Good Ground connections eliminate most electrical noise problems and require tight with the metal vehicle chassis. Remove plastic, paint or dust for good electrical contact.

  • Page 8: Panel Controls

    Panel controls Sound select button VOL/BAS/TRE/BAL/FAD Encoder volume for volume & sound +/- Power on / off Multicolor LCD digital display Cassette / radio mode control Panel release button Clock display button APS -- auto preset & preset scan Tune/seek up/down Radio scan button Radio memory 1-6 AM/FM band select button / loud control...

  • Page 9: Basic Operation

    Basic operation Press the button to turn the unit on. Press the 'MOD' button to toggle between Radio mode and Cassette mode. VOLUME, BASS, TREBLE, BALANCE AND FADER. VOLUME Adjust Volume by simply rotating the volume knob, the display shows. BASS Press SEL button until the display shows Rotate the volume knob to adjust the bass of high/low sound level.
  • Page 10 PRESET BEEP SOUND ON/OFF & PRESET VOLUME LEVEL 1. Press the Sound Select button for 2 Seconds, the Display will show: Rotate the encoder volume to select between these two modes: indicates that there is beep sound when you press the buttons;...

  • Page 11: Radio Operation

    Radio operation Press the button OR press the MOD button to turn the radio on. MOD button enables you to toggle between RADIO and TAPE Mode. BAND AND TUNING-(TUNE, SEEK) Press the BAND (band) button for AM, FM or OIRT radio mode function. At the radio mode, rotate and hold TUNE up or TUNE down button for less than 1 second to SEEK up or SEEK down to the next clear station.

  • Page 12: Cassette Operation

    Cassette operation Press the button to turn the unit on, and insert a cassette tape with the open side facing to the right. The cassette will start to play. Insert a cassette tape with the open side facing to the right. Press the cassette tape until it locks into position of cassette compartment, then begins to play.

  • Page 13: Cleaning

    Cleaning Cleaning the cabinet · Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean. Cleaning the heads of tape recorder · Periodic cleaning of the tape head, capstan and pinch rollers will ensure good reproduction of music and trouble-free operation. ·...

  • Page 14: Troubleshooting Guide

    Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. No power or no sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. If above solutions cannot help, press the RESET button.

  • Page 15: Specification

    Specification General. Power supply: 12V DC (11V-16V), negative ground Maximum power output: 50Wx4 channels Fuses: 1 A and 10 A Suitable speaker impedance: 4-8 ohm Output wiring: 4 speakers only. RCA line out RCA low-level outputs 500 mV Dimensions (W x D x H)/Weight: 178 x 175 x 51 mm/1.5 kg FM Frequency coverage: 65 74 / 87.5 108 MHz...
  • Page 16 ....................................16 ................................17 ................................18 ................................23 ..................................24 ..............................26 ................................. 28 ....................................29 ....................................29 ..........................30 ............................... 31...
  • Page 17 · · 12 . · · · · · · · · · · · · ·...
  • Page 18 · · 0,75 (AWG18), · ·...
  • Page 19 · (5 x 25 · ·...
  • Page 20 (5 8 (4 8...
  • Page 21 POWER OPEN, OPEN...
  • Page 22 · ·...
  • Page 23 SEL. VOL/BAS/TRE/BAL/FAD OPEN OPEN, 8. APS AM/FM / OFF/FLAT/POP/CLASSIC/ROCK...
  • Page 24 'MOD', (VOLUME) (BASS) SEL, (TREBLE) SEL, (BALANCE) SEL, (FADER) SEL,...
  • Page 25 SEL, BAND/LOUD, OFF/FLAT/POP/CLASSIC/ROCK. 'CLOCK' , 'CLOCK' ,...
  • Page 26 MOD, BAND AM, FM OIRT. F 1, F 2, F3 ( BAND AM, FM...
  • Page 27 BAND 1 - 6.
  • Page 28 MOD,...
  • Page 29 · · · 20-30 · · · (5 x 25...
  • Page 30 30 ,...
  • Page 31 12 , RCA: 178 175 51 / 1,5 65 74 / 87,5 108,0 = 50 / 18 522-1620 4,75 -60) - 12 /Cross talk > 40 / > 45 < 0.35 % WRMS...

This manual is also suitable for:

H- ccr8080H-ccr8081H-ccr8083
