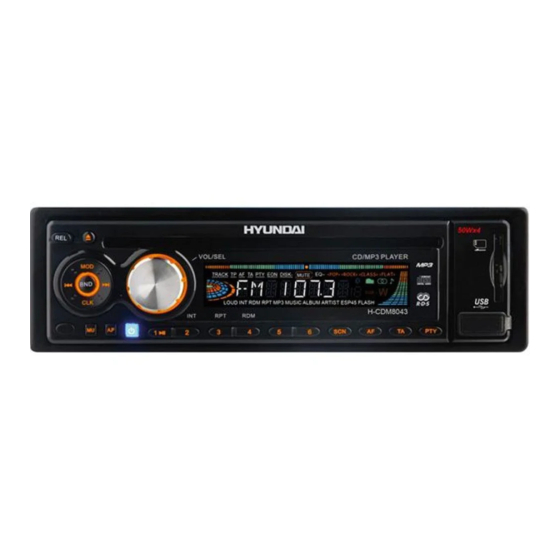

Hyundai H- CDM8043 Instruction Manual

Hyundai H- CDM8043 Instruction Manual

Cd/mp3 receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

H- CDM8043
CD/MP3 RECEIVER
CD/MP3
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H- CDM8043

Summary of Contents for Hyundai H- CDM8043

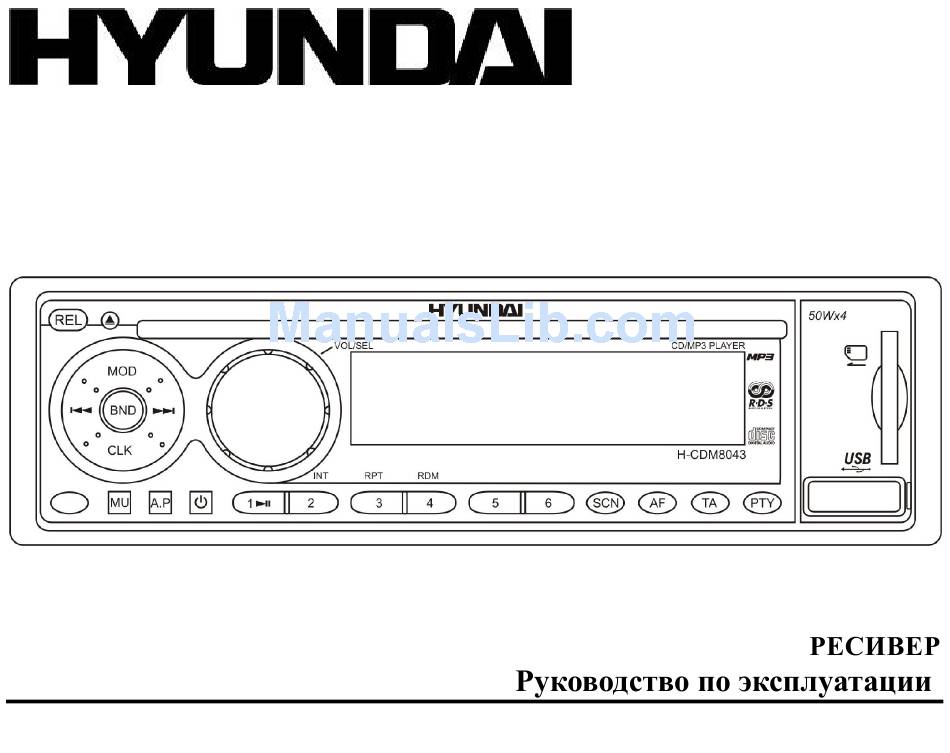

  • Page 1 H- CDM8043 CD/MP3 RECEIVER CD/MP3 Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Installation/ connection............................4 Panel controls ..............................9...

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. BEFORE USING PLEASE HEAT PASSENGER COMPARTMENT RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating.

  • Page 4: Installation/ Connection

    Installation/ connection Attention: REMOVE THE TRANSPORT CD STOPPER (2 SCREWS) BEFORE USE. Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides.
  • Page 5 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
  • Page 6 Detachable control panel Detaching the control panel Turn the Power off. Press the panel release button REL. Remove the control panel. Attaching the control panel Insert the right side of the control panel into the main unit. Note: the control panel must be attached into the T-Joint. Press the control panel on to the left side of middle of it until a “click”...
  • Page 7 Electrical connection 1A&10A...
  • Page 8 Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

  • Page 9: Panel Controls

    Panel controls Front panel 1. REL button Press it to detach the front panel. 2. EJECT button Press it to eject the disc. 3. PREVIOUS / NEXT buttons Use these buttons to search for the beginnings of the next/ previous tracks or automatic skip forward/ backward or automatic/ manual seek tuning.
  • Page 10 4. VOLUME knob/ SEL button Rotate VOL button clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. Press SEL button to set the characteristics: TA, PI, RETUNE, MASK, BEEP, SEEK, DSP, LOUD, STEREO, DX/LOCAL, VOL, ESP. 5.
  • Page 11 17. PLAY/ PAUSE button Use this button to play or pause playback. Under the pause status, press it to play. 18. PRESET STATION [1-6] buttons 19. POWER button Press POWER button to turn the power on, press again to turn the power off. 20.
  • Page 12 Back of the front panel Press the REL button to open the panel. Disc slot Reset hole Panel status indicator Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down; flashes when you remove the panel.

  • Page 13: General Operation

    General operation Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press REL button on the panel to open the panel and press the RESET hole with a point object to restore the unit to the original factory settings.
  • Page 14 Setting other characteristics During FM mode, keep pressing and holding for more than 2 seconds the SEL button to turn the setting TA on, then press it shortly and repeatedly to select other settings: PI, RETUNE, MASK, BEEP, SEEK, DSP, LOUD, STEREO, DX/LOCAL, VOL.
  • Page 15 Retune mode To determine the initial time of automatic TA (Traffic Announcement) search. There are 2 modes: RETUNE L and RETUNE S. - RETUNE L: 90 seconds. RETUNE S: 30 seconds. Note: Retune mode is active for TA SEEK mode only. d.
  • Page 16 SEEK2: Press and hold the button increase or decrease the frequency rapidly until the button is released, the different between the same operation at Seek 1 mode is that this time the radio will not stop at any station. g. DSP mode Select the following modes of the equalizer: OFF =>...
  • Page 17 Turning the sound off Press the MU button to turn the sound off. Press it again or press the MODE, BAND, rotate VOLUME knob, press the SEL button to turn the sound on. Mode setting Press the MOD button to select RADIO, DISC, CARD (after inserting the SD/ MMC card), USB (after inserting the USB card) modes.

  • Page 18: Digital Tuner

    Digital tuner Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band selection Press POWER to power on, then press the MOD button to select RADIO. Press BND once or more to select: FM1, FM2, FM3, AM1, AM2.

  • Page 19: Scan Function

    A.P function (Auto storage/ Preset memory scan) Preset scan: press A.P button for less than 1 second to scan all preset stations in the memories of the current band and stay on each memory stations for about 5 seconds. The memory location indicator on the LCD will flash during the process.
  • Page 20 PTY (Program Type) function Press PTY the first time, then press the number buttons, you can select the music program style. Press PTY the second time, then press the number buttons, you can select the language program style. To choose the desired program style use the following table: When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.
  • Page 21 If volume is adjusted during traffic announcement, only the traffic announcement volume is valid. TA interruption function: the current traffic announcement is cancelled by pressing the TA key. But the TA mode will not be off. Note: When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received or saved only when traffic program identification code has been received.

  • Page 22: Cd/ Sd/ Mmc/ Usb Operations

    CD/ SD/ MMC/ USB operations Loading a disc 1. Insert the disc with the printed side facing upward into the slot. 2. Press EJECT button to eject the disc. Inserting the SD/ MMC card/ USB device Insert the MMC/ SD card or USB device into MMC/ SD compartment or USB socket. Then the playing mode will be changed into MMC/ SD or USB mode and display will show CARD or USB.
  • Page 23 Note: USB format supports 2.0. Capacity: 8 MB ~ 512 MB. SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB ~ 512 MB. MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc. Capacity: 16 MB ~ 512 MB.

  • Page 24: Intro Play

    Repeat playing 1. During the SD/ MMC/ USB playback press the RPT button to repeat current track. The display shows M-RPT. 2. During the CD/ MP3/ WMA playback press the RPT button to repeat the current track. The display shows S-RPT.
  • Page 25 During any playback press and hold it for 2 seconds to start intro play of the tracks in current folder. The display shows D-INT. Press it again to cancel the function. Inserting the number of track 1. Press the number buttons to input the desired tracks. 2.

  • Page 26: Mp3 Overview

    Directory search In DIRECTORY SEARCH mode of MMC/ SD, USB or MP3/ WMA disc, the LCD will display the root folder (if there is not the root folder, it will found a root folder named ROOT). 1. Rotate VOLUME knob to select your desired folder. 2.
  • Page 27 Maximum number of directory level is 8, including the root directory. Maximum number of files and folders per disc is 256. The unit may not play tracks in the order of Track numbers. The unit plays only the audio tracks if a disc contains both audio tracks and MP3 files. When playing a disc of 8 kbps or “VBR”, the elapsed playing time in the display window will not be correct and also the intro play may not function properly.

  • Page 28: Anti-Theft System

    Anti-theft system Remove the panel 1. Press POWER button to switch off the power of the unit. 2. Press REL button to flip down the panel. 3. Hold the middle of the panel. Take off one end, and then take off the other end. 4.

  • Page 29: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 30: Troubleshooting Guide

    Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected to the car No power The fuse is blown. accessory switch the ignition key to “ACC”. Replace the fuse. Disc Presence of disc inside the player. Remove the disc in the player then put a new Disc cannot be loaded.

  • Page 31: Specification

    The radio does not work, The antenna cable is not connected the Insert the antenna cable firmly select a station the radio station signals are too weak. manually. automatic selection does not work. Specification General Power supply: 12 V DC Current consumption/Fuse: max.
  • Page 32 ..............................32 ..........................33 ..........................34 ............................39 ............................43 ............................48 CD/ MP3/ USB .....................52 3 ..............................56 ..........................59 ............................60 ..............................61 ....................62 ........................63...
  • Page 33 -10º...
  • Page 34 (5 x 25...
  • Page 35 (5 8 (4 8...
  • Page 36 REL ( . 1). . 2). .3). . 4).
  • Page 38 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
  • Page 39 EJECT VOLUME,...
  • Page 40 TA, PI, RETUNE, MASK, BEEP, SEEK, DSP, LOUD, STEREO, DX/LOCAL, VOL, ESP. SD/ MMC TA ( AF ( 5, 6 INT ( Intro. PLAY/ PAUSE...
  • Page 41 [1-6] POWER POWER, SD/MMC/USB SD/MMC/USB...
  • Page 42 EJECT RESET RESET...
  • Page 43 RESET ( REL. RESET, REL EJECT MMC/ USB POWER SEL ( : VOL ), BAS ( ), TR ( ), BAL ( ), FAD...
  • Page 44 SEL, SEL, PI, RETUNE, MASK, BEEP, SEEK, DSP, LOUD, STEREO, DX/LOCAL, VOL. TP ( SEEK ALARM. - TA SEEK: TP (Traffic Program – - RETUNE SHORT (60 RETUNE LONG (90 PI ( ALARM: (AF),...
  • Page 45 - PI SOUND - PI MUTE RETUNE Retune-S Retune-L – TA Seek. - Retune S: TA SEEK 30 - Retune L: TA SEEK 90 Retune TA SEEK. MASK : MASK DPI MASK ALL. - MASK DPI: - MASK ALL: RDS. BEEP - BEEP 2 - BEEP ALL:...
  • Page 46 SEEK - SEEK 1: - SEEK 2: DSP ( : OFF (DSP ) => FLAT => POP M => CLASSICS => ROCK. LOUD : LOUD ON, LOUD OFF. STEREO : MONO, STEREO. MONO LOCAL/ DISTANT LOCAL DISTANT (DX) ( VOL LAST/ ADJUST. ESP ( - ESP 40 - ESP 120...
  • Page 47 MOD, (RADIO), (DISC), SD/ MMC (CARD) (USB). RADIO, BND, FM 1, FM 2, FM 3, AM 1, AM 2. CLK, => => => CD/SD/MMC/USB: RDS: => => CLK,...
  • Page 48 RDS ( POWER, MOD, RADIO. BND, FM1, FM2, FM3, AM1, AM2. 1~6, 1~6.
  • Page 49 A. ( A. , A. . 1~6. A. . – AF ( RDS. , AF REGION ON REGION OFF. - REGION ON (...
  • Page 50 REG ON. - REGION OFF ( PTY ( RDS, PTY, , NO PTY PTY.
  • Page 51 TA ( “ ”. TA SEEK. CD/ SD/ MMC/ USB EON-TA LOCAL/ EON-TA DISTANCE: : LOCAL DISTANTCE. - EON-TA LOCAL: : EON TA LO. - EON-TA DISTANCE: : EON TA LO. : DISTANCE. LOCAL...
  • Page 52 CD/ MP3/ USB EJECT, / USB/ SD/ MMC SD/ MMC SD/ MMC USB/ SD/ MMC SD/ MMC. 2 1 (SD/ MMC). FAT 12/ FAT 16/ FAT 32 - FAT 12/ 16 ( , 500 - FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0).
  • Page 53 USB: USB 2.0. : 8 M ~ 512 M . : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, : 8 M ~ 512 M MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, : 16 M ~ 512 M SD/ MMC PLAY/ PAUSE PLAY/ PAUSE...
  • Page 54 SD/ MMC/ USB M-RPT. CD/ MP3/ WMA S-RPT. D-RPT. SD/ MMC/ USB RDM, M-RDM. CD/ MP3/ WMA RDM, S-RDM. RDM, D-RDM. Intro SD/ MMC/ USB INT, M-INT. CD/ MP3/ WMA INT, S- INT.
  • Page 55 INT, D- INT. SD/ MMC/ USB A.P, TRACK SEARCH ( DIRECTORY SEARCH ( CD/ MP3/ WMA A.P, TRACK SEARCH ( ), CHARACTER SEARCH ( DIRECTORY SEARCH ( (Track search) MP3/ WMA T 000 ( (0-9). SEL, (0-9).
  • Page 56 SEL, (Directory search) “ROOT” ( SEL, (Character search) MP3/ WMA : “ --……”. NON ( SEL, MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”.
  • Page 57 “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW...
  • Page 58 1. ID3TAG.
  • Page 59 POWER...
  • Page 62 “ ”. RESET.
  • Page 63 12 , 10 / 10 218 83 285 -10º - +60º 87.5 - 108.0 / 10.7 522-1620 RMS (+/-3 – 20 (A-vtd): Classic, Pop, Rock, Flat . 2000...
