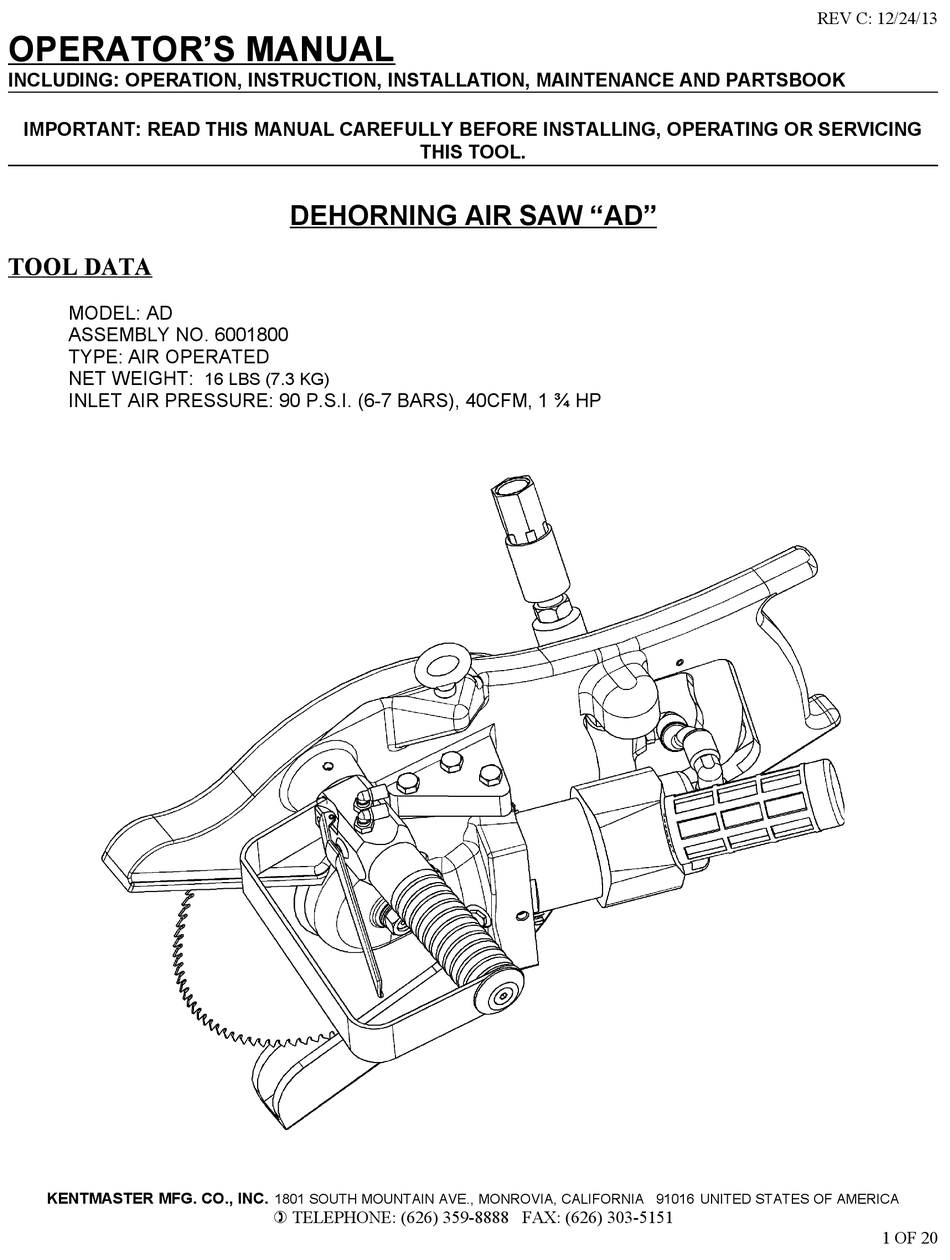

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING
TOOL DATA
MODEL: AD
ASSEMBLY NO. 6001800
TYPE: AIR OPERATED
NET WEIGHT:
INLET AIR PRESSURE: 90 P.S.I. (6-7 BARS), 40CFM, 1 ¾ HP
KENTMASTER MFG. CO., INC.

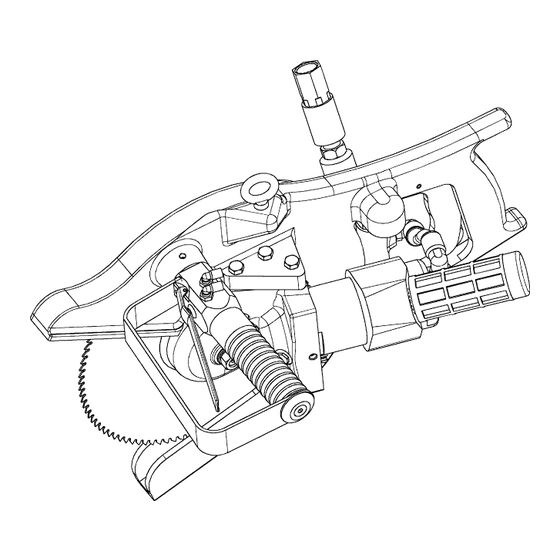

DEHORNING AIR SAW "AD"
16 LBS (7.3 KG)
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
THIS TOOL.
REV C: 12/24/13
1 OF 20
Advertisement
Table of Contents
Related Manuals for KENTMASTER AD
Summary of Contents for KENTMASTER AD
- Page 1 REV C: 12/24/13 OPERATOR’S MANUAL INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL. DEHORNING AIR SAW “AD” TOOL DATA MODEL: AD ASSEMBLY NO. 6001800 TYPE: AIR OPERATED NET WEIGHT: 16 LBS (7.3 KG)
-
Page 2: Operating And Safety Instructions
REV C: 12/24/13 WARNING = Hazards or unsafe practices which could result in severe personal injury, death or substantial property damage. CAUTION = Hazards or unsafe practices which could result in minor personal injury, product or property damage. NOTICE = Important installation, operation or maintenance information OPERATING AND SAFETY INSTRUCTIONS DO NOT OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THE SAFETY WARNING... -
Page 3: Maintenance
TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE. 6. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL. -
Page 4: Parts Book
1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION. - Page 5 REV C: 12/24/13 MAIN ASSEMBLY Figure 2 MODEL “AD” – MAIN ASSEMBLY 5 OF 20...
-
Page 6: Figure 3 Bom For Model "Ad
WRENCH- AIRMOTOR, GEAR CASE 4501390 WRENCH- AIRMOTOR HOUSING MODEL “AD” WITH TWO TRIGGERS (FRONT HANDLE #6600620) REQUIRES POPPET VALVE (#6001605). AN AIR FILTER-REGULATOR-LUBRICATOR (#7200030) MUST BE INSTALLED IN AIR SUPPLY FOR EACH TOOL. Figure 3 BOM FOR MODEL “AD” GEAR NOSE ASSEMBLY KENTMASTER MFG. -
Page 7: Figure 4 Gear-Nose Assembly
8337240 SET SCREW 8500470 8506170 WASHER 8600320 8705010 WASHER 8705120 WASHER Figure 4 GEAR-NOSE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 7 OF 20... -
Page 8: Gear Housing Disassembly
AIR MOTOR ASSEMBLY 7680360 O-RING 8311030 SET SCREW Figure 5 AIR MOTOR AND GEAR CASE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 8 OF 20... -
Page 9: Figure 6 Gear Case Assembly
6001050 IDLER GEAR 6001060 GEAR CAGE AND SPLINE RING ASSEMBLY Figure 7 GEAR CAGE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 9 OF 20... -
Page 10: Gear Case And Airmotor Disassembly
ROTOR BLADES (SET OF 5) 6000760 LOWER END PLATE 6001020 LONG GEAR SPINDLE Figure 8 AIR MOTOR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 10 OF 20... -
Page 11: Handle Assembly
SPRING FRONT HANDLE WITH AIR SWITCH (#6600620) REQUIRES POPPET VALVE (#6001605). Figure 9 FRONT HANDLE WITH AIR SWITCH KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151... -
Page 12: Air Valve Assembly
6001070 HOUSING 6001431 BALL 6001630 VALVE BODY 6001640 VALVE PIN Figure 10 AIR VALVE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 12 OF 20... -
Page 13: Popet Vale Assembly
7300980 GREEN AIR TUBE 7802050 BREATHER VENT FILTER 7802500 POPPET VALVE 8211240 SCREW POPPET VALVE IS USED WITH MODEL “AD” WITH TWO TRIGGERS. Figure 11 POPPET VALVE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA ... -
Page 14: Wiring Diagram
REV C: 12/24/13 WIRING DIAGRAM This wiring diagram is for model “AD” with two triggers. As shown on the diagram above, two triggers option requires poppet valve (Kentmaster part No. 6001605). Figure 12 WIRING DIAGRAM KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA ... -
Page 15: General Information
REV C: 12/24/13 [ENGLISH] GENERAL INFORMATION MODELS DEHORNING AIR SAW “AD” ________________________________________________________________________________ SERVICE CENTERS KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC. 16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE. WEST TOWN ROAD MONROVIA, CALIFORNIA 91016 AVONMOUTH - BRISTOL BS11 9DE... -
Page 16: Notice To Employer And Purchaser Of Tool
8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators... - Page 17 REV C: 12/24/13 GENERAL INFORMATION ___________________________________________________________________________________________ COVERING: SAFETY PRECAUTIONS AND PLACING INTO SERVICE AIR POWERED DEHORNING AIR SAW “AD” ___________________________________________________________________________________________ READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL _____________________________________________________________________________________________________ IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THIS INFORMATION INTO THE HANDS OF THE OPERATOR.
-
Page 18: Installation Instructions
TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL A BALANCER IS REQUIRED FOR OPERATION AND USE OF THIS TOOL. -
Page 19: Kentmaster Worldwide Location
REV C: 12/24/13 Kentmaster Worldwide Location Kentmaster Equipment (Aust) PTY.LTD. Kentmaster South Africa (PTY) LTD. Unit 2,24 Central Court Johannesburg - S. Africa Browns Plains Qld. 4118 Unit 54 Sunnyrock Park Australia Sunrock Close, Germiston South Africa Telephone: (07) 3806-8400... - Page 20 Kentmaster Worldwide Location ..............................19 INDEX ......................................20 FIGURES - INDEX ..................................20 FIGURES - INDEX Figure 1 MODEL AD – BLADE REPLACMENT........................4 Figure 2 MODEL “AD” – MAIN ASSEMBLY..........................5 Figure 3 BOM FOR MODEL “AD”..............................6 Figure 4 GEAR-NOSE ASSEMBLY..............................7 Figure 5 AIR MOTOR AND GEAR CASE ASSEMBLY......................8...
