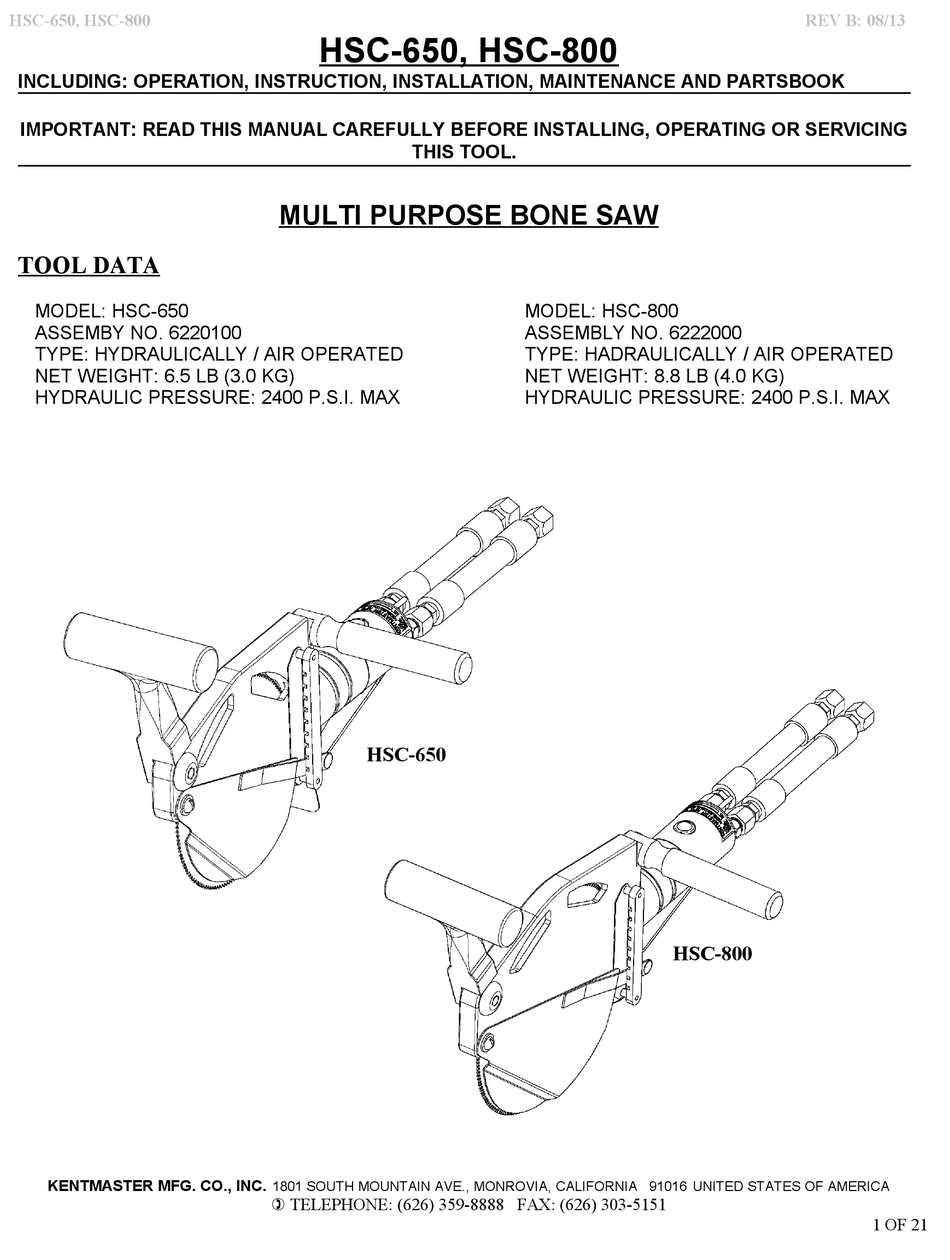

HSC-650, HSC-800
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING
TOOL DATA
MODEL: HSC-650
ASSEMBY NO. 6220100
TYPE: HYDRAULICALLY / AIR OPERATED
NET WEIGHT: 6.5 LB (3.0 KG)
HYDRAULIC PRESSURE: 2400 P.S.I. MAX
KENTMASTER MFG. CO., INC.
HSC-650, HSC-800
THIS TOOL.
MULTI PURPOSE BONE SAW
HSC-650
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
MODEL: HSC-800
ASSEMBLY NO. 6222000
TYPE: HADRAULICALLY / AIR OPERATED
NET WEIGHT: 8.8 LB (4.0 KG)
HYDRAULIC PRESSURE: 2400 P.S.I. MAX
HSC-800
REV B: 08/13
1 OF 21
Advertisement
Table of Contents
Related Manuals for KENTMASTER HSC-650
Summary of Contents for KENTMASTER HSC-650
- Page 1 NET WEIGHT: 8.8 LB (4.0 KG) HYDRAULIC PRESSURE: 2400 P.S.I. MAX HYDRAULIC PRESSURE: 2400 P.S.I. MAX HSC-650 HSC-800 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 1 OF 21...
-
Page 2: Operating And Safety Instructions
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED. WARNING KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151... -
Page 3: Maintenance
ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE WARNING AND SERVICE TO THIS TOOL. FILL LUBRICATOR WITH KENTMASTER AIR MIST OIL (PART NO. 7903050). SET DRIP RATE ACCORDING TO INSTRUCTIONS SUPPLIED. TOOL REQUIRES GREASING AFTER 40 HOURS OF OPERATION. GREASE USING KENTMASTER GREASE (PART NO. -
Page 4: Parts Book
SERVICE KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION. PARTS BOOK KENTMASTER MFG. -
Page 5: Model Hsc-650, Multi Purpose Bone Saw
HSC-650, HSC-800 REV B: 08/13 MODEL HSC-650, MULTI PURPOSE BONE SAW Figure 2 MODEL HSC-650 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 5 OF 21... - Page 6 HSC-650, HSC-800 REV B: 08/13 6220100: HSC-650, MULTI PURPOSE BONE SAW ITEM PART # DESCRIPTION 4000050 6.5" SAW BLADE, 140 TOOTH 4000620 6.5" SAW BLADE, SKIP TOOTH, 70 TOOTH 1 6201640 FRONT HANDLE/ OPTIONAL 6201120 HOLDER, BLADE 6211670 LEVER 6211690 NAME PLATE...
-
Page 7: Gears And Gear Housing Assembly
DESCRIPTION 6200230 DRIVEN CARTRIDGE ASSEMBLY 6201110 HOLDER, SLEEVE 6220201 DRIVE CARTRIDGE 6221110 HOUSING, GEAR 7014060 LUBE FITTING 8612050 ROLL PIN Figure 4 6221160: GEAR HOUSING ASSEMBLY, HSC-650 6200230: DRIVEN CARTRIDGE ASSEMBLY ITEM PART # DESCRIPTION 3050060 BEARING 5000870 RETAINING RING... -
Page 8: Special Tools (Optional)
6201040 SPACER 6201050 DRIVE SHAFT 6201060 PINION GEAR 6201210 SHIM WASHER 6221021 SLEEVE 8503120 NUT 8600420 KEY Figure 6 6220201: DRIVE CARTRIDGE ASSEMBLY, HSC-650 SPECIAL TOOLS (OPTIONAL) 4501470 GREASE GUN 4501460 WRENCH, DRIVE SHAFT SLEEVE 4501430 WRENCH, LOCKNUT ITEM DESCRIPTION... - Page 9 HSC-650, HSC-800 REV B: 08/13 HSC-650, BLADE GUARD AND DEPTH GAUGE, 6.5” 6220220: GUARD AND DEPTH GAUGE, 6.5" ITEM PART # DESCRIPTION 6201180 SPACER, BRIDGE 6201200 WASHER 6211030 HANDLE 6221030 GUARD 6221040 BRIDGE 6221050 DEPTH GAUGE, 6.5" BLADE 6221070 PLATE, FRICTION...
-
Page 10: Front Handle (Optional)
PART # DESCRIPTION 6201620 FRONT HANDLE 6201630 NUT 8245080 SCREW Figure 9 6201640: FRONT HANDLE (OPTIONAL) KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 10 OF 21... -
Page 11: Model Hsc-800, Multi Purpose Bone Saw
HSC-650, HSC-800 REV B: 08/13 MODEL HSC-800, MULTI PURPOSE BONE SAW Figure 10 MODEL HSC-800 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 11 OF 21... - Page 12 8602050 KEY 8620080 PIN 8640030 DRIVE SCREW 8890010 SPRING Figure 11 BOM FOR MODEL HSC-800 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 12 OF 21...
-
Page 13: Gears And Gear Housing Asssembly
6201230 RETAINER NUT 6201240 SLEEVE 8236020 SCREW 8255460 SCREW Figure 13 6200230: DRIVEN CARTRIDGE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 13 OF 21... - Page 14 4501460 WRENCH, DRIVE SHAFT SLEEVE 4501430 WRENCH, LOCKNUT ITEM DESCRIPTION SPECIAL TOOLS (OPTIONAL) Figure 15 HSC-800, SPECIAL TOOLS (OPTIONAL) KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 14 OF 21...
- Page 15 8241050 SCREW 8413080 SCREW 8505100 WASHER 8507150 WASHER Figure 16 6222200: GUARD AND DEPTH GAUGE, 8.0” KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 15 OF 21...
- Page 16 PART # DESCRIPTION 6201620 FRONT HANDLE 6201630 NUT 8245080 SCREW Figure 17 6201640: FRONT HANDLE (OPTIONAL) KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 16 OF 21...
-
Page 17: Hsc- Tubing Diagram And Power Supply
REV B: 08/13 HSC- TUBING DIAGRAM AND POWER SUPPLY Figure 18 HSC- TUBING DIAGRAM AND POWER SUPPLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 17 OF 21... -
Page 18: General Information
HSC-650, HSC-800 REV B: 08/13 [ENGLISH] GENERAL INFORMATION MODELS HSC-650 MULTI PURPOSE BONE SAW (6220100) HSC-800 MULTI PURPOSE BONE SAW (6222000) ________________________________________________________________________________ SERVICE CENTERS KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC. 16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE. WEST TOWN ROAD... -
Page 19: Notice To Employer And Purchaser Of Tool
8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators... -
Page 20: Kentmaster Worldwide Location
Kentmaster Worldwide Location Kentmaster Equipment (Aust) PTY.LTD. Kentmaster South Africa (PTY) LTD. Unit 2,24 Central Court Johannesburg - S. Africa Browns Plains Qld. 4118 Unit 54 Sunnyrock Park Australia Sunrock Close, Germiston South Africa Telephone: (07) 3806-8400 Fax: (07) 3806-7933 Telephone: (27) 11-455-3748 Australia@Kentmaster.com... - Page 21 PARTS BOOK....................................4 MODEL HSC-650, MULTI PURPOSE BONE SAW........................5 GEARS AND GEAR HOUSING ASSEMBLY........................7 SPECIAL TOOLS (OPTIONAL).............................8 HSC-650, BLADE GUARD AND DEPTH GAUGE, 6.5”......................9 FRONT HANDLE (OPTIONAL)............................10 MODEL HSC-800, MULTI PURPOSE BONE SAW.........................11 GEARS AND GEAR HOUSING ASSSEMBLY........................13 SPECIAL TOOLS (OPTIONAL)............................14 HSC-800, BLADE GUARD AND DEPTH GAUGE, 8.0”....................15...
