KENTMASTER 210-JB Operator's Manual

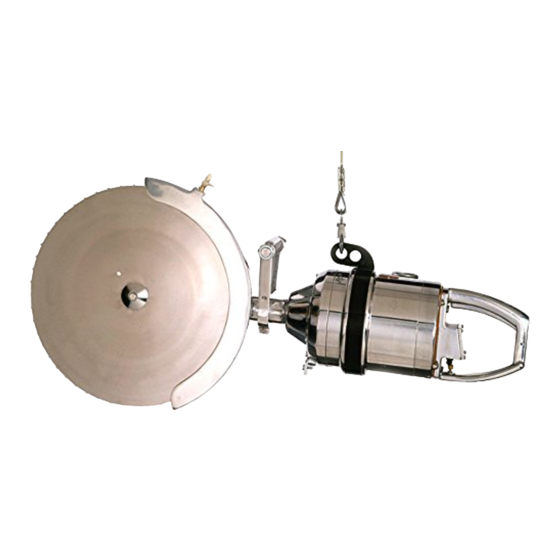

Hog splitting saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

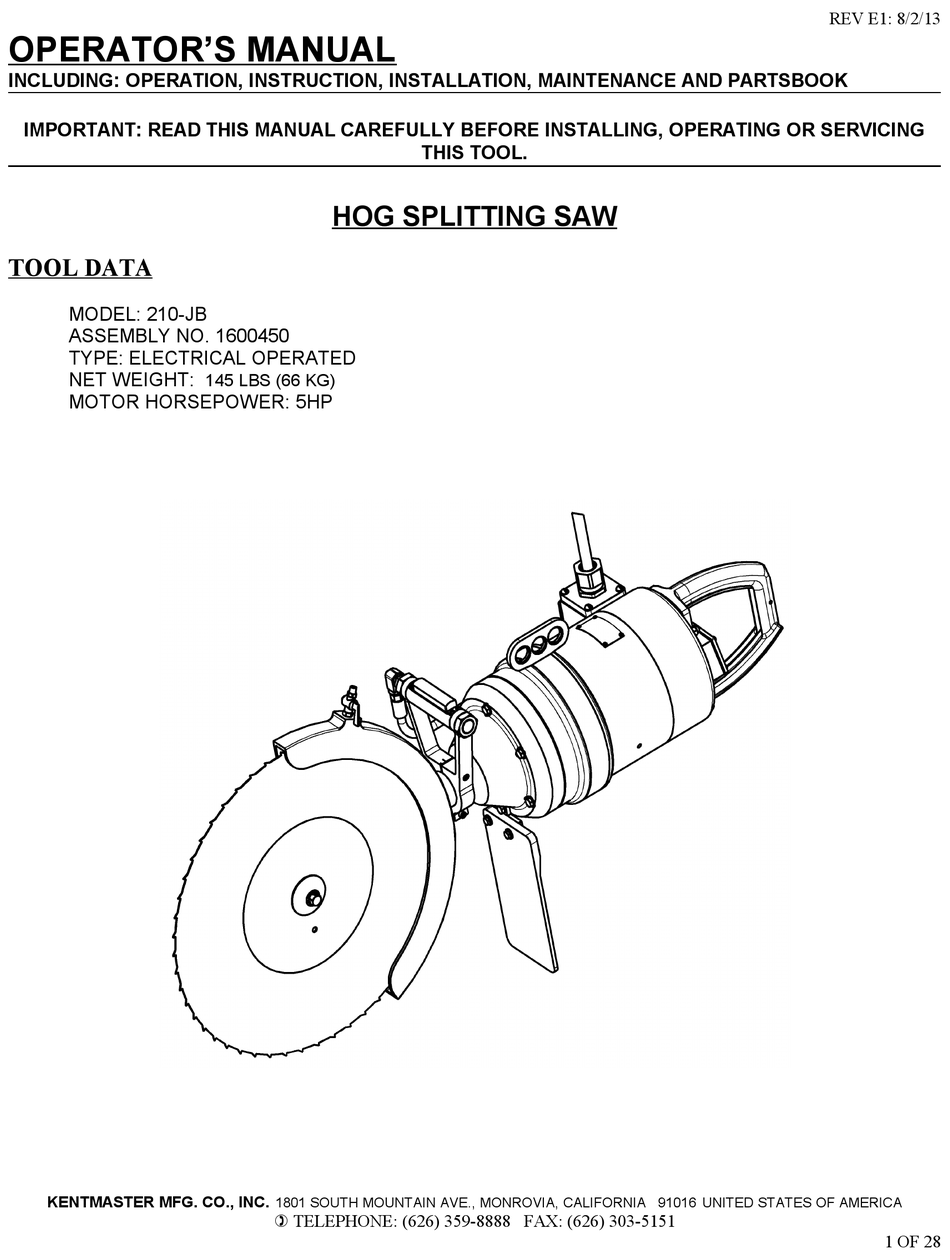

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING
TOOL DATA
MODEL: 210-JB
ASSEMBLY NO. 1600450
TYPE: ELECTRICAL OPERATED
NET WEIGHT:
MOTOR HORSEPOWER: 5HP
KENTMASTER MFG. CO., INC.
HOG SPLITTING SAW
145 LBS (66 KG)
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
 TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
THIS TOOL.
REV E1: 8/2/13
1 OF 28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 210-JB and is the answer not in the manual?

Questions and answers

Related Manuals for KENTMASTER 210-JB

Summary of Contents for KENTMASTER 210-JB

  • Page 1 ASSEMBLY NO. 1600450 TYPE: ELECTRICAL OPERATED NET WEIGHT: 145 LBS (66 KG) MOTOR HORSEPOWER: 5HP KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 1 OF 28...

  • Page 2: Operating And Safety Instructions

    REV E1: 8/2/13 = Hazards or unsafe practices which could result in severe personal injury, death or substantial property damage. = Hazards or unsafe practices which could result in minor personal injury, product or property damage. = Important installation, operation or maintenance information OPERATING AND SAFETY INSTRUCTIONS DO NOT OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THE SAFETY WARNING...

  • Page 3: Maintenance

    TROUBLE SHOOTING IF THE BRAKE WON’T STOP THE BLADE, CHECK FOLLOWING: SWITCHES IN THE HANDLES (ITEMS 2000710 & 2000720 ON 210-JB. ITEMS 2000690 & 2000700 ON 210-JB-A). THE POWER SUPPLY CONVERTOR – RECTIFIER, PLACED IN THE WIRE BOX (ITEM 2000300).
  • Page 4 1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION.

  • Page 5: Parts Book

    REV E1: 8/2/13 PARTS BOOK 210-JB Figure 2 MODEL “210-JB” – MAIN ASSEMBLY 5 OF 28...
  • Page 6 POWER SUPPLY CONVERTOR RECTIFIER 2000730 SWITCH 7011650 SPRAY NOZLE 7025110 SHUT OFF VALVE 8029040 SCREW 8411060 SCREW 8413100 SCREW 8413180 SCREW 8413200 SCREW 8417580 SCREW 8505100 WASHER 8506170 WASHER 8507150 WASHER 8606080 Figure 3 BOM FOR MODEL “210-JB” 6 OF 28...

  • Page 7: Electro-Magnetic Brake

    REV E1: 8/2/13 ELECTRO-MAGNETIC BRAKE 2000201: ELECTRO-MAGNETIC BRAKE, 90VDC       ITEM PART # DESCRIPTION       2000211 MAGNETIC COIL, 90VDC 2000200 2000220 ARMATURE ASSEMBLY 2020010 RESISTOR 2506105 FEMALE QUICK DISCONNECT 8415040 SCREW 115V BRAKE: 0.435 AMPS @ 90DC (+/-10%) Figure 4 2000201: ELECTRO-MAGNETIC BRAKE, 90VDC 2000350: ELECTRO-MAGNETIC BRAKE, 42VDC ITEM...
  • Page 8 REV E1: 8/2/13 2000220: ARMATURE ASSEMBLY ITEM PART # DESCRIPTION 2000230 ARMATURE 2000240 RELEASE SPRING 2000250 DRIVEN HUB 5102150 RETAINING RING 8028030 SCREW 8311020 SET SCREW 8506580 WASHER Figure 6 2000200: ARMATURE ASSEMBLY Figure 7 BRAKE ADJUSTMENT 8 OF 28...

  • Page 9: Brake Adjustment

    5. USE BELLEVILLE WASHER (8712020) (AS NEEDED) BETWEEN SPLINED SLEEVE (1000180) AND BOLT - DRIVEN SIDE (1300390). MOTOR ASSEMBLY, 5HP Figure 8 5HP MOTOR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 9 OF 28...
  • Page 10 MOTOR ASSEMBLY 380V, 3PH, 60HZ, 5HP, 9.0AMPS 1600940-380-360 2340040 MOTOR ASSEMBLY 220V, 3PH, 60HZ, 5HP, 15.0AMPS 1600940-220-360 2340040 MOTOR OPTION DESCRIPTION MOTOR ASSEMBLY STATOR 210-JB - MOTOR ASSEMBLY 16009__: MOTOR ASSEMBLY, 5HP ITEM PART # DESCRIPTION OPTIONS STATOR 1000070 MOTOR, FRONT END BELL...

  • Page 11: Motor Disassembly And Reassembly Procedure

    SHELL WILL EXPAND IT. STATOR WILL BE EASIER TO REMOVE. TO REASSEMBLY MOTOR REVERSE STEPS 1 TO 3. KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151...

  • Page 12: Power Supply

    PLUG, MALE 2001620 SOCKET, FEMALE 8031070 SCREW 8507100 WASHER Figure 11 1302963: POWER SUPPLY, NON 42V KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 12 OF 28...
  • Page 13 PLUG, MALE 2001620 SOCKET, FEMALE 8031070 SCREW 8507100 WASHER Figure 12 1302962: POWER SUPPLY, 115V KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 13 OF 28...
  • Page 14 CONNECTOR 2008241 CORD STRAIN RELIEF 2008260 CONNECTOR 8011080 SCREW Figure 13 1302964: POWER SUPPLY, 42V KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 14 OF 28...

  • Page 15: Front Handle

    3. Insert closed end of spring (item 3) into 8211080 SCREW plunger (item 4). 8211180 SCREW 8500580 Figure 14 1302410: FORWARD HANDLE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 15 OF 28...

  • Page 16: Rear Handle

    SCREW 8070070 SCREW 8411080 SCREW 8500100 8507090 WASHER 8613200 Figure 15 1302540: REAR HANDLE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 16 OF 28...

  • Page 17: Standard Torque

    8712020 SPRING WASHER, AS NEEDED Figure 16 1302970: DRIVE SHAFT HOUSING – NOSE, STANDARD TORQUE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 17 OF 28...
  • Page 18 O-RING 7701250 O-RING 8209040 SCREW 8603050 SQUARE KEY Figure 17 1302530: NOSE ASSEMBLY, STANDARD TORQUE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 18 OF 28...

  • Page 19: High Torque

    8712020 SPRING WASHER, AS NEEDED Figure 18 1302552: DRIVE SHAFT HOUSING - NOSE, HIGH TORQUE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 19 OF 28...
  • Page 20 7701250 O-RING 8209040 SCREW 8603050 SQUARE KEY Figure 19 1302531: NOSE ASSEEMBLY – HIGH TORQUE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 20 OF 28...
  • Page 21 5. PRIMARY SIDE OF TRANSFORMER SHOULD ALWAYS COME FROM THE SAME SOURCE AS THE POWER FOR THE MAGNETIC STARTER COILS. To obtain the correct Kentmaster part number for 3-pole contactor and overload relay, please contact the Kentmaster representative. Figure 20 WIRING DIAGRAM FOR JB without ATD – NON 42V KENTMASTER MFG.

  • Page 22: Three Phase

    10. PRIMARY SIDE OF TRANSFORMER SHOULD ALWAYS COME FROM THE SAME SOURCE AS THE POWER FOR THE MAGNETIC STARTER COILS. To obtain the correct Kentmaster part number for 3-pole contactor and overload relay, please contact the Kentmaster representative. Figure 21 WIRING DIAGRAM FOR JB without ATD - 42V KENTMASTER MFG.

  • Page 23: General Information

    REV E1: 8/2/13 [ENGLISH] GENERAL INFORMATION MODEL “210-JB” HOG SPLITTING SAW ______________________________________________________________________________ SERVICE CENTER KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE. MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 KENTMASTER MFG. CO., INC.
  • Page 24 8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators...

  • Page 25: Placing Into Service

    Always disconnect power supply from tool before: (A) Installing or removing blade from tool. (B) Making repairs or adjustments to the tool. (C) performing maintenance or cleanup work. KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX:...
  • Page 26 REV E1: 8/2/13 Kentmaster Worldwide Location Kentmaster Equipment (Aust) PTY.LTD. Kentmaster South Africa (PTY) LTD. Unit 2,24 Central Court Johannesburg - S. Africa Browns Plains Qld. 4118 Unit 54 Sunnyrock Park Australia Sunrock Close, Germiston South Africa Telephone: (07) 3806-8400...
  • Page 27 WIRING DIAGRAM - 42V..............................22 NOTICE TO EMPLOYER AND PURCHASER OF TOOL.......................24 GENERAL INFORMATION...............................25 Kentmaster Worldwide Location..............................26 INDEX......................................27 FIGURES - INDEX..................................28 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (818) 359-8888 (818) 303-5151...
  • Page 28 REV E1: 8/2/13 FIGURES - INDEX Figure 1 MODEL 210 – BLADE REPLACMENT........................4 Figure 2 MODEL “210-JB” – MAIN ASSEMBLY........................5 Figure 3 BOM FOR MODEL “210-JB”............................6 Figure 4 2000201: ELECTRO-MAGNETIC BRAKE, 90VDC.....................7 Figure 5 2000350: ELECTRO-MAGNETIC BRAKE, 42VDC.....................7 Figure 6 2000200: ARMATURE ASSEMBLY..........................8 Figure 7 BRAKE ADJUSTMENT..............................8...
