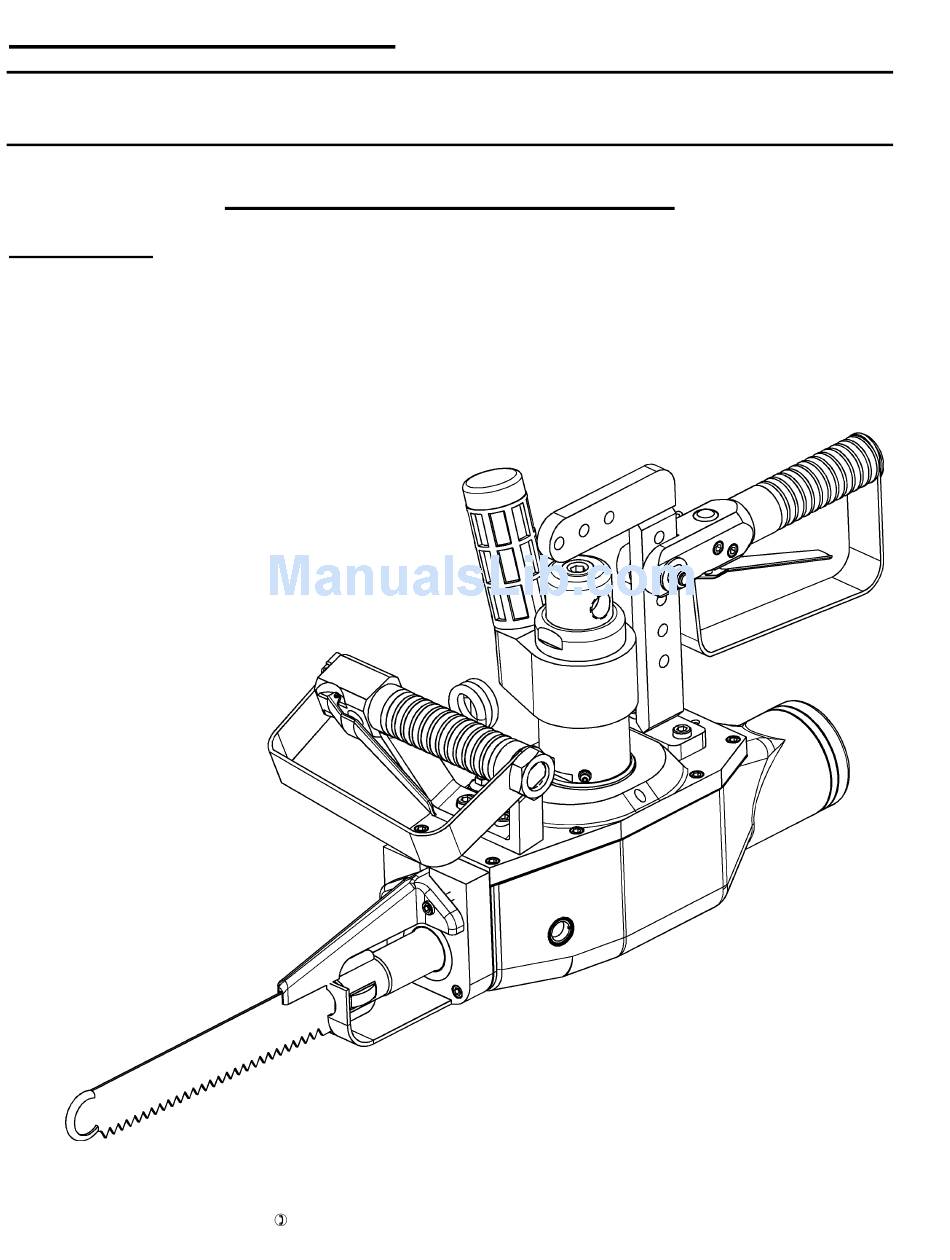

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR
TOOL DATA
MODEL: ABB-II
ASSEMBLY NO. 6330000
TYPE: AIR OPERATED
NET WEIGHT:
INLET AIR PRESSURE: 90 P.S.I. (6-7 BARS), 40 cft/min
KENTMASTER MFG. CO., INC.
SERVICING THIS TOOL.

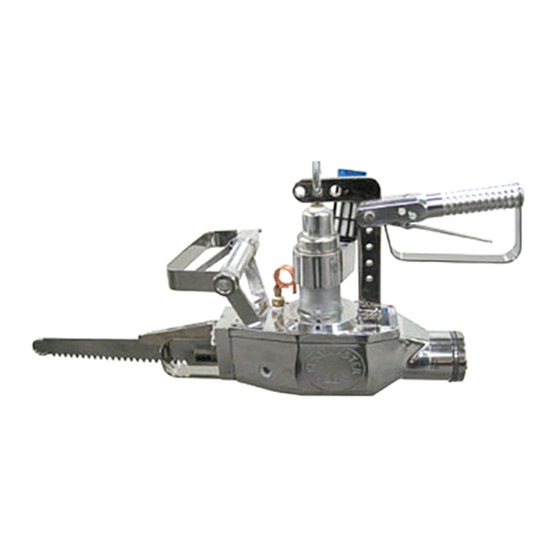

AIR BEEF BRISKET SAW "ABB-II"
42 LBS (19 KG)
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
1 OF 21
Advertisement
Table of Contents
Related Manuals for KENTMASTER ABB-II
Summary of Contents for KENTMASTER ABB-II
- Page 1 OPERATOR’S MANUAL INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL. AIR BEEF BRISKET SAW “ABB-II” TOOL DATA MODEL: ABB-II ASSEMBLY NO. 6330000 TYPE: AIR OPERATED NET WEIGHT: 42 LBS (19 KG) INLET AIR PRESSURE: 90 P.S.I.
-
Page 2: Operating And Safety Instructions
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED. WARNING KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151... -
Page 3: Maintenance
4. TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE. 5. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL. - Page 4 1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION.
-
Page 5: Parts Book
PARTS BOOK Figure 2 MODEL “ABB-II” – MAIN ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 5 OF 21... - Page 6 6552020 HOUSING ASSEMBLY 6552030 DRIVE ASSEMBLY, AIR 6600530 AIR HANDLE, REAR MODEL “ABB-II” REQUIRES POPPET VALVE (#6001605- SEE KIT 6001607). AN AIR FILTER-REGULATOR-LUBRICATOR (#7200030) MUST BE INSTALLED IN AIR SUPPLY FOR EACH TOOL. Figure 3 BOM FOR MODEL “ABB-II” 6001607: POPPET VALVE, REGULATOR/FILTER/LUBRICATOR & AIR HOSE...
- Page 7 7300980 GREEN AIR TUBE 7802050 BREATHER VENT FILTER 7802500 POPPET VALVE 8211240 SCREW Figure 5 6001605: POPPET VALVE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 7 OF 21...
- Page 8 7680140 O-RING 8500580 NUT 8620080 PIN 8890010 SPRING 9213080 SCREW Figure 7 6551340: AIR HANDLE, FRONT KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 8 OF 21...
-
Page 9: Figure 8 6552020: Housing Assembly
Figure 8 6552020: HOUSING ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 9 OF 21... -
Page 10: Figure 9 Bom For 6552020: Housing Assembly
SCREW 9333000 SET SCREW 9803060 INSERT 9803150 INSERT Figure 9 BOM FOR 6552020: HOUSING ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 10 of 21... - Page 11 6551130 FLANGE 6551200 JORNAL 6551440 BEARING 9211111 SCREW 9620520 PIN Figure 10 6552010: DRIVE LINK KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 11 of 21...
- Page 12 8622500 DOWEL PIN 9211050 SCREW 9211060 SCREW 9213080 SCREW Figure 11 6552030: DRIVE ASSEMBLY, AIR KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 12 of 21...
- Page 13 7000040 PLUG 7680360 O-RING 8311030 SET SCREW Figure 12 6330150: AIR MOTOR AND GEAR CASE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 13 of 21...
- Page 14 6001050 IDLER GEAR 6001060 GEAR CAGE AND SPLINE RING Figure 14 6001030: GEAR CAGE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 14 of 21...
-
Page 15: General Information
[ENGLISH] GENERAL INFORMATION MODELS “ABB-II” AIR BEEF BRISKET SAW ___________________________________________________________________________ SERVICE CENTERS KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC. 16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE. WEST TOWN ROAD MONROVIA, CALIFORNIA 91016 AVONMOUTH - BRISTOL BS11 9DE UNITED STATES OF AMERICA... -
Page 16: Notice To Employer And Purchaser Of Tool
8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators... -
Page 17: Installation Instructions
TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL KENTMASTER MFG. - Page 18 1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN YOUR PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION.
-
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY DECLARATION DE CONFORMITE -DECLARACION DE CONFORMIDAD- ERKLARUNG BEZUGLICH EINHALTUNG DER VORSCHRIFTEN DICHIARAZIONE DI CONFORMITA . CONFORMITEITSVERKLARING MANUFACTURED BY: KENTMASTER MFG CO., INC. FABRIQUE PAR: 1801 SOUTH MOUNTAIN AVE. FABRICADA POR: MONROVIA, CALIFORNIA 91016 HERGESTELLTVON:... -
Page 20: Kentmaster Worldwide Location
Kentmaster Worldwide Location Kentmaster South Africa (PTY) LTD. Kentmaster Equipment (Aust) PTY.LTD. Johannesburg - S. Africa Unit 2,24 Central Court Unit 54 Sunnyrock Park Browns Plains Qld. 4118 Sunrock Close, Germiston Australia South Africa Telephone: (07) 3806-8400 Telephone: (27) 11-455-3748... - Page 21 FIGURES - INDEX....................................21 FIGURES - INDEX Figure 1 MODEL ABB-II – BLADE REPLACMENT........................... 4 Figure 2 MODEL “ABB-II” – MAIN ASSEMBLY ..........................5 Figure 3 BOM FOR MODEL “ABB-II” ..............................6 Figure 4 6001607: POPPET VALVE, REGULATOR/FILTER/LUBRICATOR & AIR HOSE ............6 Figure 5 6001605: POPPET VALVE ASSEMBLY..........................
