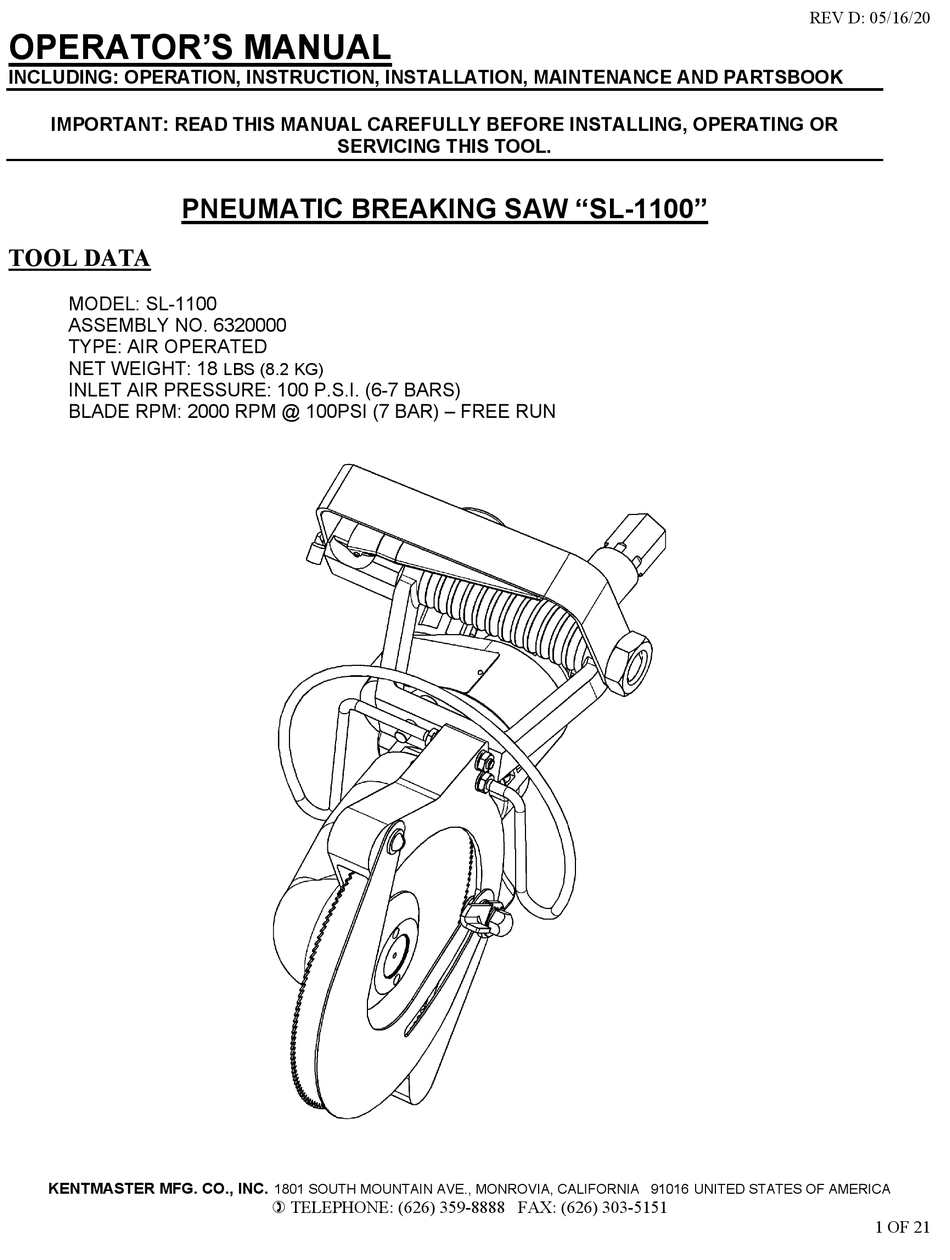

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR
PNEUMATIC BREAKING SAW "SL-1100"
TOOL DATA
MODEL: SL-1100
ASSEMBLY NO. 6320000
TYPE: AIR OPERATED
NET WEIGHT: 18
INLET AIR PRESSURE: 100 P.S.I. (6-7 BARS)
BLADE RPM: 2000 RPM @ 100PSI (7 BAR) – FREE RUN
KENTMASTER MFG. CO., INC.
SERVICING THIS TOOL.
LBS (8.2 KG)
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
REV D: 05/16/20
1 OF 21
Advertisement
Table of Contents
Related Manuals for KENTMASTER SL-1100
Summary of Contents for KENTMASTER SL-1100
- Page 1 REV D: 05/16/20 OPERATOR’S MANUAL INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL. PNEUMATIC BREAKING SAW “SL-1100” TOOL DATA MODEL: SL-1100 ASSEMBLY NO. 6320000 TYPE: AIR OPERATED NET WEIGHT: 18 LBS (8.2 KG)
-
Page 2: Operating And Safety Instructions
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED. WARNING KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151... -
Page 3: Maintenance
5. TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE. 6. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL. - Page 4 1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION.
-
Page 5: Parts Book
REV D: 05/16/20 PARTS BOOK Figure 2 MODEL “SL-1100” – MAIN ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 5 OF 21... - Page 6 8640130 DRIVE SCREW 9411050 SCREW MODEL “SL-1100” WITH TWO TRIGGERS (FRONT HANDLE #6551340) REQUIRES POPPET VALVE (#6001605). AN AIR FILTER-REGULATOR-LUBRICATOR (#7200030) MUST BE INSTALLED IN AIR SUPPLY FOR EACH TOOL. Figure 3 BOM FOR MODEL “SL-1100” KENTMASTER MFG. CO., INC.
- Page 7 6320150 NOSE 9241050 SCREW 6620250 MANDREL - R.H. 9311030 SET SCREW Figure 4 GEAR-NOSE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 7 OF 21...
-
Page 8: Gear Housing Disassembly
GREEN AIR TUBE 7680080 O-RING 7680140 O-RING 8209080 SCREW 8620080 8890010 SPRING Figure 5 REAR HANDLE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 8 OF 21... -
Page 9: Front Handle
8500580 NUT 8620080 PIN 8890010 SPRING 9213080 SCREW Figure 6 FRONT HANDLE WITH AIR SWITCH KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 9 OF 21... - Page 10 7000040 PLUG 7680360 O-RING 8311030 SET SCREW Figure 7 AIR MOTOR & GEAR CASE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 10 OF 21...
- Page 11 6001050 IDLER GEAR 6001060 GEAR CAGE AND SPLINE RING ASSEMBLY Figure 9 GEAR CAGE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 11 OF 21...
- Page 12 ATTACH AIR TO TOOL. WITH TOOL ACTIVATED, TIGHTEN WITH A WRENCH, CASE ONTO HOUSING. THIS HELPS MAINTAIN THE ALIGNMENT OF AIRMOTOR TO GEAR CASE ASSEMBLY. DISCONNECT AIR SUPPLY. KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA ...
-
Page 13: Depth Gauge
6003240 DEPTH GAUGE 6201200 WASHER 8031060 SCREW 8505100 WASHER Figure 11 DEPTH GAUGE FOR 8” BLADE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 13 OF 21... - Page 14 7300980 GREEN AIR TUBE 7802050 BREATHER VENT FILTER 7802500 POPPET VALVE 8211240 SCREW POPPET VALVE IS USED WITH MODEL “SL-1100” WITH TWO TRIGGERS. Figure 12 POPPET VALVE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA ...
-
Page 15: Wiring Diagram
REV D: 05/16/20 WIRING DIAGRAM Figure 13 WIRING DIAGRAM KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 15 OF 21... -
Page 16: General Information
REV D: 05/16/20 [ENGLISH] GENERAL INFORMATION MODELS “SL-1100” BREAKING SAW ________________________________________________________________________________ SERVICE CENTERS KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC. 16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE. WEST TOWN ROAD MONROVIA, CALIFORNIA 91016 AVONMOUTH - BRISTOL BS11 9DE UNITED STATES OF AMERICA UNITED KINGDOM ... - Page 17 8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators...
- Page 18 TOOL REQUIRES 40 S.C.F.M. OF AIR @ 90 P.S.I. AIR PRESSURE. FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL KENTMASTER MFG.
- Page 19 1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN YOUR PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION.
- Page 20 REV D: 05/16/20 Kentmaster Worldwide Location Kentmaster South Africa (PTY) LTD. Kentmaster Equipment (Aust) PTY.LTD. Johannesburg - S. Africa Unit 2,24 Central Court Unit 54 Sunnyrock Park Browns Plains Qld. 4118 Sunrock Close, Germiston Australia South Africa Telephone: (07) 3806-8400...
- Page 21 INDEX ........................................21 FIGURES - INDEX ....................................21 FIGURES - INDEX Figure 1 MODEL SL-1100 – BLADE REPLACMENT ........................... 4 Figure 2 MODEL “SL-1100” – MAIN ASSEMBLY ..........................5 Figure 3 BOM FOR MODEL “SL-1100” ..............................6 Figure 4 GEAR-NOSE ASSEMBLY ................................ 7 Figure 5 REAR HANDLE ..................................
