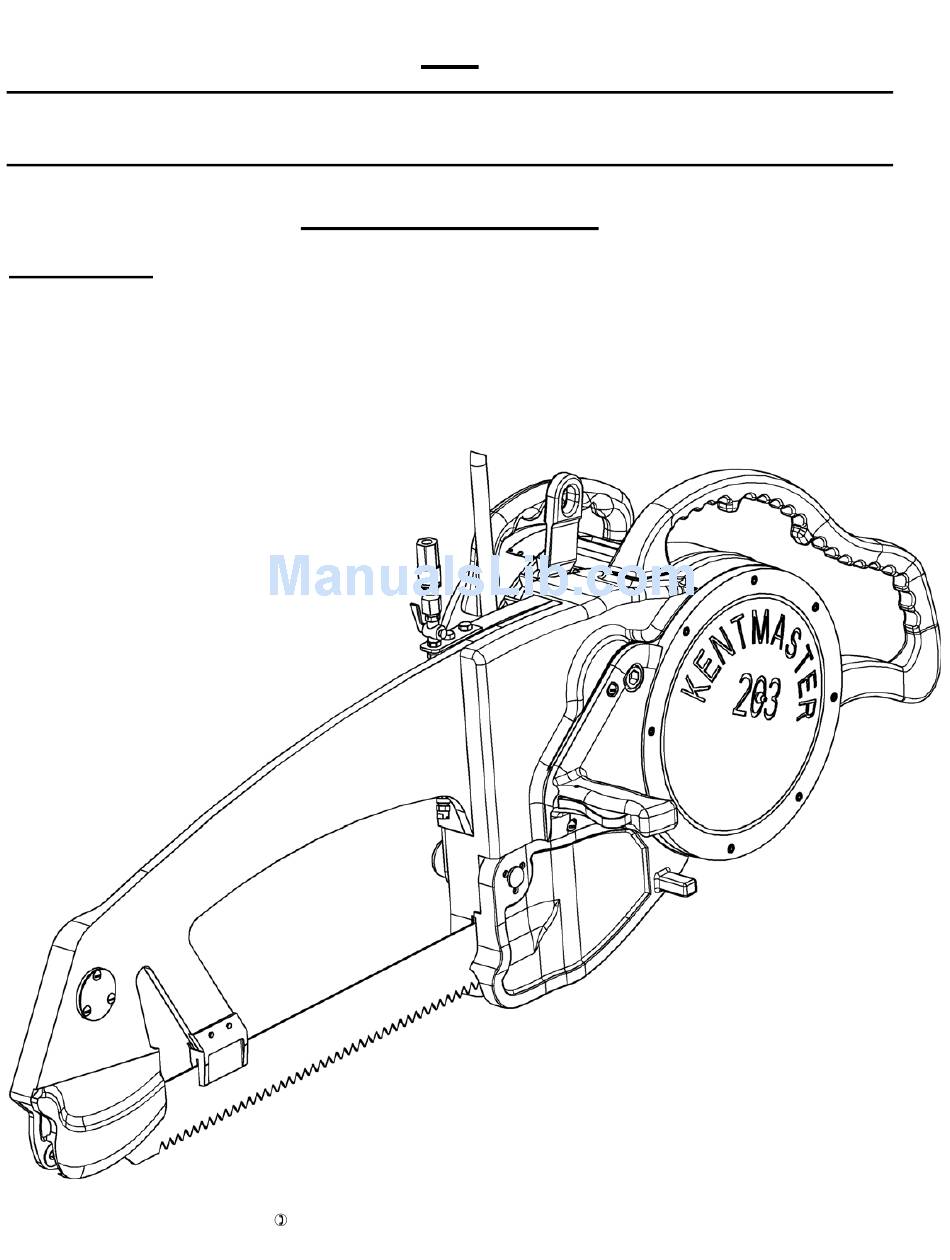

INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR
TOOL DATA
MODEL: KENTMASTER 203
ASSEMBLY NO. 1200000
TYPE: ELECTRICAL OPERATED
NET WEIGHT:
MOTOR HORSEPOWER: 3HP / 50Hz, 60Hz
KENTMASTER MFG. CO., INC.
SERVICING THIS TOOL.

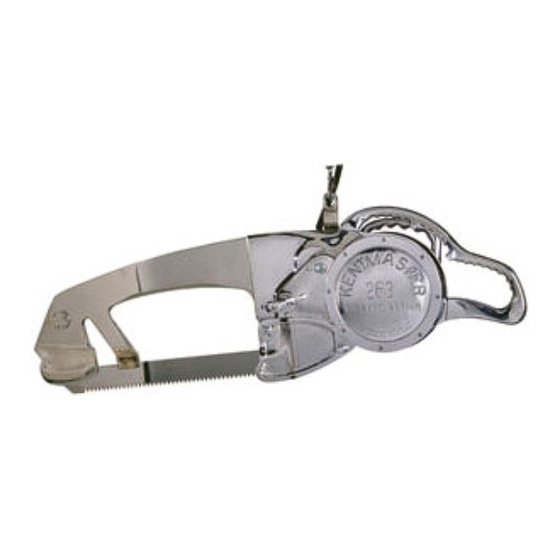

BEEF SPLITTING SAW
206 LB (94 KG)
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
203
REV C: 12/15/04
1 OF 28
Advertisement
Table of Contents
Related Manuals for KENTMASTER 203
Summary of Contents for KENTMASTER 203
- Page 1 INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL. BEEF SPLITTING SAW TOOL DATA MODEL: KENTMASTER 203 ASSEMBLY NO. 1200000 TYPE: ELECTRICAL OPERATED NET WEIGHT: 206 LB (94 KG) MOTOR HORSEPOWER: 3HP / 50Hz, 60Hz KENTMASTER MFG.
-
Page 2: Operating And Safety Instructions
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED. KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151... -
Page 3: Parts Book
1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. 2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. 3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION. -
Page 4: Figure 1 Model
REV C: 12/15/04 Figure 1 MODEL “203" KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 4 OF 28... -
Page 5: Figure 2 Bom For Model
REV C: 12/15/04 1200000: 203 - BEEF SPLITTING SAW ITEM PART # DESCRIPTION OPTIONS MOTOR ASSEMBLY / REQUIRED 1002420 POWER CORD ASSEMBLY, NON 42V 1002430 POWER CORD ASSEMBLY, 42V 4100130 BLADE, STANDARD. 3TPI 4100140 BLADE, 4TPI 4100240 BLADE, "SKIP TOOTH". 2TPI... -
Page 6: Motor Assembly
REV C: 12/15/04 MOTOR ASSEMBLY Figure 3 MOTOR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 6 OF 28... -
Page 7: Figure 4 Bom For Motor Assembly
DESCRIPTION MOTOR OPTION STATOR (ITEM 1) MOTOR ASSEMBLY OPTIONS (STATOR) Figure 4 BOM FOR MOTOR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 7 OF 28... -
Page 8: Figure 5 1201671: Rotor –Shaft Assembly
ITEM PART # DESCRIPTION 1201650 FAN 8411180 SCREW 8501410 NUT 8507100 WASHER Figure 6 1201651: MOTOR FAN ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 8 OF 28... -
Page 9: Power Supply
ITEM PART # DESCRIPTION 2001270 CABLE CONNECTOR 2001700 GROMMET 2007030 POWER CORD Figure 8 1002430: POWER SUPPLY, 42V KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 9 OF 28... -
Page 10: Switch Assembly
2000770 TOP PLATE, SWITCH 8029020 SCREW 8029040 SCREW 10 8507090 WASHER Figure 9 1202540: SWITCH PLATE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 10 OF 28... -
Page 11: Frame & Rear Handle
REV C: 12/15/04 FRAME & REAR HANDLE Figure 10 1203001: FRAME AND REAR HANDLE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 11 OF 28... -
Page 12: Figure 11 Bom For Frame And Rear Handle Assembly
1202210 WASHER, HANGER 1710032 BEARING ASSEMBLY 8250180 SCREW 8705340 SHIM 8705480 SHIM Figure 12 1202470: HANGER ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 12 OF 28... -
Page 13: Figure 13 1201520: Rocker Arm
7018400 CAP, LUBE FITTING 8211030 SCREW 8506100 WASHER 8705680 WASHER 8705810 WASHER Figure 13 1201520: ROCKER ARM KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 13 of 28... -
Page 14: Figure 14 1710031: Bearing Assembly
1710032: BEARING ASSEMBLY ITEM PART # DESCRIPTION 1710030 OUTER BEARING 3706400 INNER BEARING Figure 15 1710032: BEARING ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 14 of 28... -
Page 15: Yoke And Suspension Arm
1201610 YOKE 1201660 BLADE GUIDE 1202420 SUSPENSION ARM ASSEMBLY 8411060 SCREW 8506100 WASHER Figure 16 1203002: YOKE AND SUSPENSION ARM KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE FAX: (626) 359-8888 (626) 303-5151... -
Page 16: Figure 17 1202420: Suspension Arm
3601180 BEARING 5100500 RETAINING RING 8110040 SCREW 8507090 WASHER 8600530 KEY Figure 17 1202420: SUSPENSION ARM KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 16 of 28... -
Page 17: Water Spray
MALE PLUG 7034090 SOCKET 7904020 CLAMP 8029030 SCREW 8413060 SCREW Figure 18 1201760: WATER SPRAY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 17 of 28... -
Page 18: Figure 19 Wiring Diagram – Different Control And Motor Voltage
3. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION. 4. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME OF THE MACHINE. To obtain the correct Kentmaster part number for 3-pole contactor and overload relay, please contact the Kentmaster representative. -
Page 19: Figure 20 Wiring Diagram – Same Control And Motor Voltage
3. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION. 4. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME OF THE MACHINE. To obtain the correct Kentmaster part number for 3-pole contactor and overload relay, please contact the Kentmaster representative. -
Page 20: Figure 21 Electric Motor Lead Hookup Diagram 3 Phase Motor
REV C: 12/15/04 Figure 21 ELECTRIC MOTOR LEAD HOOKUP DIAGRAM 3 PHASE MOTOR KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 20 of 28... -
Page 21: General Information
REV C: 12/15/04 [ENGLISH] GENERAL INFORMATION MODEL “203” BEEF SPLITTING SAW (1200000) ________________________________________________________________________________ SERVICE CENTERS KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC. 16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE. WEST TOWN ROAD MONROVIA, CALIFORNIA 91016 AVONMOUTH - BRISTOL BS11 9DE... -
Page 22: Notice To Employer And Purchaser Of Tool
8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators... -
Page 23: Installation Instructions
1. A BALANCER IS REQUIRED FOR OPERATION AND USE OF THIS TOOL. WEIGHT OF TOOL MUST FALL WITHIN WEIGHT RANGE OF BALANCER. "AIR-BALANCERS" WHICH OPERATE ON COMPRESSED AIR, ARE HIGHLY RECOMMENDED FOR USE WITH “203” SAWS. THEY PROVIDE LONG TRAVEL AND VERY SMOOTH, UNIFORM RISE AND FALL. THEY CAN BE INTERFACED WITH THE OPERATION OF THE SAW. -
Page 24: Operating Instructions
GREASE LUBRICANT AT POINT G, GREASE FITTING IS ACCESSIBLE FROM THE MOTOR SIDE OF THE MACHINE. LUBRICATION OF POINTS DESCRIBED ABOVE WILL INSURE PROPER OPERATION AND LONG BEARING LIFE OF YOUR “KENTMASTER 203 BEEF SPLITTING SAW”. CAUTION: DO NOT OVER GREASE. RECOMMENDED... -
Page 25: Declaration Of Conformity
DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY DECLARATION DE CONFORMITE -DECLARACION DE CONFORMIDAD- ERKLARUNG BEZUGLICH EINHALTUNG DER VORSCHRIFTEN DICHIARAZIONE DI CONFORMITA . CONFORMITEITSVERKLARING MANUFACTURED BY: KENTMASTER MFG CO., INC. 1801 SOUTH MOUNTAIN AVE. FABRIQUE PAR: FABRICADA POR: MONROVIA, CALIFORNIA 91016 HERGESTELLTVON:... -
Page 26: Kentmaster Worldwide Location
REV C: 12/15/04 Kentmaster Worldwide Location Kentmaster South Africa (PTY) LTD. Kentmaster Equipment (Aust) PTY.LTD. Johannesburg - S. Africa Unit 2,24 Central Court Unit 54 Sunnyrock Park Browns Plains Qld. 4118 Sunrock Close, Germiston Australia South Africa Telephone: (07) 3806-8400... -
Page 27: Table Of Contents
REV C: 12/15/04 INDEX OPERATING AND SAFETY INSTRUCTIONS.............................2 SERVICE ........................................3 PARTS BOOK......................................3 “203” MAIN ASSEMBLY ..................................3 MOTOR ASSEMBLY..................................6 POWER SUPPLY....................................9 SWITCH ASSEMBLY ..................................10 FRAME & REAR HANDLE ................................11 YOKE AND SUSPENSION ARM ..............................15 WATER SPRAY ....................................17 WIRING DIAGRAMS ..................................18 3-PHASE, DIFFERENT CONTROL AND MOTOR VOLTAGE ....................18 3-PHASE, SAME CONTROL AND MOTOR VOLTAGE......................19... - Page 28 REV C: 12/15/04 FIGURES - INDEX Figure 1 MODEL “203" ....................................4 Figure 2 BOM FOR MODEL “203” .................................5 Figure 3 MOTOR ASSEMBLY ................................6 Figure 4 BOM FOR MOTOR ASSEMBLY .............................7 Figure 5 1201671: ROTOR –SHAFT ASSEMBLY ..........................8 Figure 6 1201651: MOTOR FAN ASSEMBLY ............................8 Figure 7 1002420: POWER SUPPLY, NON 42V ............................9...
