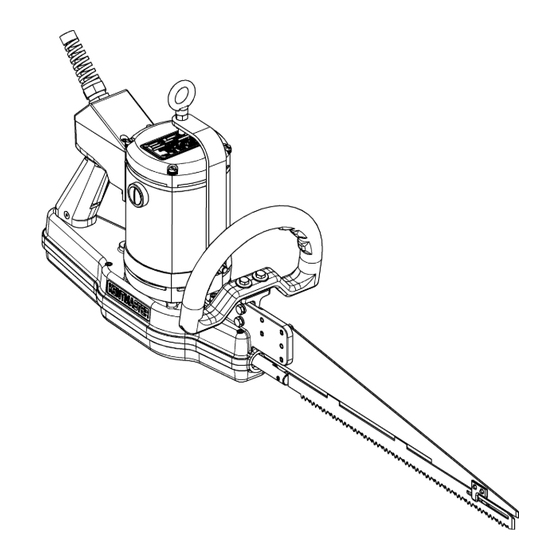

Reciprocating quartering and all-purpose saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL [ENGLISH]:
RECIPROCATING QUARTERING
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION AND MAINTENANCE
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR
SERVICING THIS TOOL.
Powerful Universal Splash-Proof Motor
Counterbalanced for Reduced Vibration
KENTMASTER MFG. CO., INC.
AND ALL-PURPOSE SAW
ZIP SAW
8000 Cutting Stokes per Minute
Easy to Clean and Sanitize
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
:
 TELEPHONE
(626) 359-8888
ZIP SAW
FAX:
(626) 303-5151
REV J: 05/02/13
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIP and is the answer not in the manual?

Questions and answers

Related Manuals for KENTMASTER ZIP

Summary of Contents for KENTMASTER ZIP

  • Page 1 ZIP SAW Powerful Universal Splash-Proof Motor 8000 Cutting Stokes per Minute Counterbalanced for Reduced Vibration Easy to Clean and Sanitize KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888...
  • Page 2 ZIP SAW REV J: 05/02/13 TOOL DATA MODEL: ZIP SAW ASSEMBLY NO.: 1900000 TYPE: ELECTRCALLY OPERATED NET WEIGHT: 18.2 lbs (8 kg) MOTOR OUTPUT: VOLTAGE: 115/230 FREQUENCY POWER SUPPLY: 50/60 single phase BLADE LENGTH: 16” (406mm) / 8” (203mm) PROTECTION CLASS: IP24...
  • Page 3  Check components for wear  Replace components as required  Grease – Use only Kentmaster-recommended grease; low-quality grease could cause premature wear and tear. Use Kentmaster grease 7903100 (11oz per machine). This is a food grade grease specially formulated for high speed and motion application.

  • Page 4: General Information

    ZIP SAW REV J: 05/02/13 GENERAL INFORMATION COVERING: SAFETY PRECAUTIONS AND PLACING INTO SERVICE SERIES ZIP SAW __________________________________________________________________________ READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL _____________________________________________________________________________________________________ IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THIS INFORMATION INTO THE HANDS OF THE OPERATOR.

  • Page 5: Installation Instructions

    ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE AND SERVICE TO THIS TOOL. 1. TOOL REQUIRES GREASING. CHECK GREASE AFTER 100 OF OPERATION. USE KENTMASTER GREASE GUN NO. 4501470, FILL WITH GREASE KM#7903100. THE MACHINE IS ASSEMBLED AT FACTORY WITH 12 OZ. OF KM#7903100 .

  • Page 6: Zip Saw Assembly

    ZIP SAW REV J: 05/02/13 ZIP SAW ASSEMBLY Figure 1 1900000: ZIP SAW ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 6 of 24...
  • Page 7 7100220 RANGE: 13lb TO 18lb, TRAVEL: 8.2 ft PART # DESCRIPTION SPRING BALANCER (OPTIONAL) Figure 2 1900000: BOM, ZIP SAW ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888...

  • Page 8: Motor Assembly

    ZIP SAW REV J: 05/02/13 MOTOR ASSEMBLY Figure 3 1900500-: MOTOR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 8 of 24...
  • Page 9 SPRING WASHER 9208060 SCREW 9208140 SCREW 9505130 WASHER Figure 4 1900500: BOM, MOTOR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 9 of 24...

  • Page 10: Case Assembly

    ZIP SAW REV J: 05/02/13 CASE ASSEMBLY Figure 5 1900100: CASE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 10 of 24...
  • Page 11 DESCRIPTION 1901010-M CASE - UPPER 8622500 DOWEL PIN 9620110 Figure 7 1901010: UPPER CASE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 11 of 24...
  • Page 12 COUNTER BALANCE 3850700 BEARING 8614120 9700010 RETAINING RING Figure 9 1901250: COUNTER BALANCE ASS’Y KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 12 of 24...
  • Page 13       1901510 BEARING CARTRIDGE 3851330 BEARING Figure 11 1901500: CARTRIDGE – BEARING ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 13 of 24...
  • Page 14   1901190 PIN-BEARING, CONROD 1901650 SHAFT 9409010 SCREW 9700010 RETAINING RING Figure 12 1901600: BLADE SHAFT ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 14 of 24...
  • Page 15 PIN-BEARING, CONROD 1901410 GEAR 3102120 BEARING 9700010 RETAINING RING Figure 14 1901400: GEAR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 15 of 24...

  • Page 16: Rear Handle Assembly

    8653140 PIN 8890050 SPRING 9208040 SCREW 9208070 SCREW 9510080 WASHER Figure 15 1900800: REAR HANDLE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 16 of 24...
  • Page 17 2000810 LEVER- SWITCH 2000820 INSULATION- SWITCH 2504105 DISCONNECT 8620090 PIN 8620110 PIN Figure 17 1902600: SWITCH ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 17 of 24...

  • Page 18: Wiring Diagram

    ZIP SAW REV J: 05/02/13 WIRING DIAGRAM Figure 18 ZIP SAW WIRING DIAGRAM KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 18 of 24...

  • Page 19: Front Handle Assembly

    8463070 SHOULDER EYE BOLT 8500130 NUT 8504130 NUT 8520060 WASHER 8870300 SCREW Figure 20 1902400: HANGER ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 19 of 24...

  • Page 20: Blade And Blade Support Options

        1902210 BLADE GUIDE 1902260 BLADE SUPPORT, 16" 8451120 RIVET Figure 21 BLADE SUPPORT KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 20 of 24...

  • Page 21: Spare Parts List

    1901730 Seal - Case 2308090 or 2308150 Brush - Motor 1900840 Diaphragm - Switch KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE FAX: (626) 359-8888 (626) 303-5151 Page 21 of 24...

  • Page 22: Notice To Employer And Purchaser Of Tool

    8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request.

  • Page 23: Kentmaster Worldwide Location

    ZIP SAW REV J: 05/02/13 Kentmaster Worldwide Location Kentmaster Equipment (Aust) PTY.LTD. Kentmaster South Africa (PTY) LTD. Unit 2,24 Central Court Johannesburg - S. Africa Browns Plains Qld. 4118 Unit 54 Sunnyrock Park Australia Sunrock Close, Germiston South Africa Telephone: (07) 3806-8400...
  • Page 24 BLADE AND BLADE SUPPORT OPTIONS..........................20 SPARE PARTS LIST.................................21 RECOMMENDED SPARE PARTS SHORT-TERM MAINTENANCE................21 Figure 1 1900000: ZIP SAW ASSEMBLY.............................6 Figure 2 1900000: BOM, ZIP SAW ASSEMBLY .........................7 Figure 3 1900500-: MOTOR ASSEMBLY.............................8 Figure 4 1900500: BOM, MOTOR ASSEMBLY..........................9 Figure 5 1900100: CASE ASSEMBLY............................10 Figure 6 1900100: BOM, CASE ASSEMBLY..........................11...
