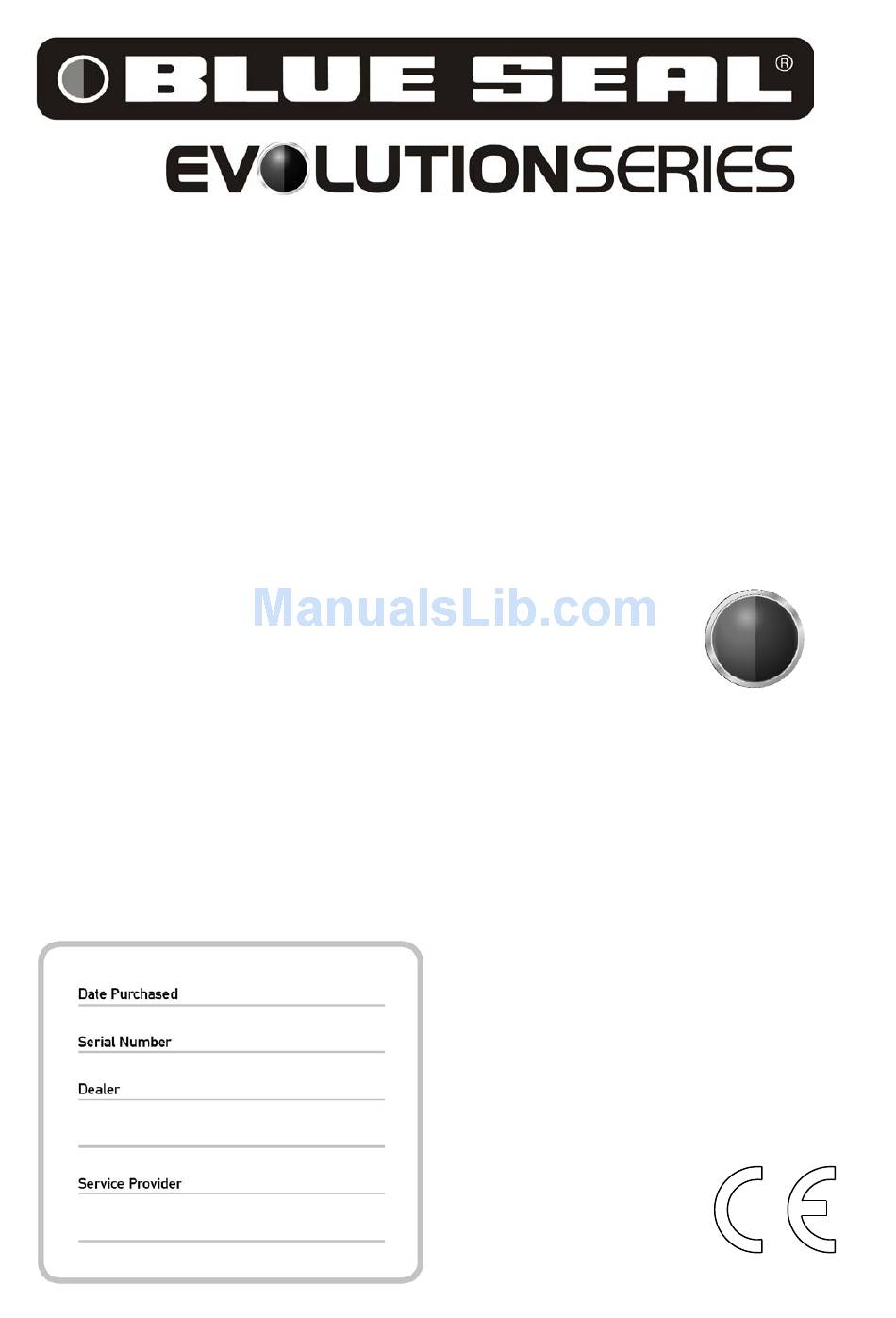

- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS CHARGRILL G592 G594 G596 G598 For use in GB, IE & DK...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
-
Page 3: Table Of Contents
Contents List G592-B Gas Chargrill, 300mm wide - Bench Model. G594-[2] Gas Chargrill, 600mm wide. G596-[2] Gas Chargrill, 900mm wide. G598-[2] Gas Chargrill, 1200mm wide. NOTE: [2]: LS - On Leg Stand. - Bench Models. Introduction ....................2 Specification ....................3... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL CHARGRILL, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal CHARGRILL, there are two important things you can do. -
Page 5: Specification
” BSP Male NOTE: * - Measure burner operating pressure at manifold test point with one burner for G592 Model or two burners for other models operating at full setting. Operating pressure is ex-factory set and not to be adjusted, apart from when converting between gases, if required. (Refer... -
Page 6: Gas Connection
23mm from rear, 39mm from floor and is reached from rear of appliance. (Refer to ‘Dimensions’ section). Connection is ½" BSP male (For G592 model). Bench Models (G594 / G596 / G598 Models Only) Gas supply connection point is located at rear of appliance, approximately 216mm from left hand side, 31mm from rear, 55mm from floor and is reached from rear of appliance. -
Page 7: Dimensions
Dimensions NOTE: G592 are only available in Bench Model (- B) Option. G592-B G594-B G596-B G598-B = Rating Plate Location for this option. - Page 8 Dimensions G594-LS G596-LS G598-LS = Rating Plate Location for this option.
-
Page 9: Installation
Blue Seal chargrills are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 10: Clearances
Left / Right Hand Side 200mm Rear 150mm Assembly Bench Models (G592 Model Only) Check all feet are securely fitted. Bench Models (G594 / G596 / G598 Models Only) Check all feet are securely fitted. Adjust feet to make Chargrill steady and level. -
Page 11: Fitting Leg Stand To Chargrill
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Blue Seal Chargrills do not require an electrical connection, as they function on the gas supply only. It is essential that gas supply is correct for Chargrill to be installed and that adequate supply pressure and volume is available. -
Page 12: Commissioning
Fit gas regulator supplied, into gas supply line as close to appliance as possible. For G592, regulator connection is ½" BSP female. Connection on unit is ½" BSP male. For G594/G596/G598 regulator connections are ¾" BSP female. Connection on unit is ¾" BSP male. -
Page 13: Operation
/ operator. Blue Seal Chargrills have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce life of Chargrill and produce a poor quality product. -
Page 14: Lighting Pilot Burners
Operation Lighting Pilot Burner Warning 350°C HEN THE SOLID GRIDDLE PLATE IS USED S SURFACE TEMPERATURE CAN REACH OVER WHEN THE APPLIANCE IS OPERATED AT FULL SETTING NOTE: All chargrill models incorporate push button piezo ignition system for each individual pilot burner. -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn off the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean chargrill regularly. A clean chargrill looks better, will last longer and will perform better. Carbonised grease on surface or on chargrill will hinder transfer of heat from cooking surface to food. -
Page 16: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: If chargrill usage is very high, we recommend that weekly cleaning procedure is carried more frequently. Ensure that protective gloves are worn during cleaning process. DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage chargrill and burners. -
Page 17: Periodic Maintenance
Cleaning and Maintenance Griddle Plate (Steel - Drop-On) (Optional Extra) Caution Always ensure that even pressure is applied over whole surface of scraper tool when using on flat surface of griddle, to prevent scoring of griddle surface. NEVER bang sharp edge of scraper tool on flat surface of griddle as this will damage griddle and invalidate the warranty. -
Page 18: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 19: Gas Conversion And Specifications
Gas control knobs. Control Panel. Chargrill castings / griddle plates and inner radiants. G592 Only - Remove left / right and end inner heat shield Main Burner panels. Main burners. Remove main burner injectors and replace with correct size Aeration Shutter injectors as shown in ‘Gas Specifications Tables’... -
Page 20: Gas Specifications
See Figure Above NOTE: * - Measure burner operating pressure at manifold test point with one burner for G592 Model or two burners for other models operating at full setting. Operating pressure is ex-factory set and not to be adjusted, apart from when converting between gases, if required. (Refer... -
Page 21: Replacement Parts List
Chargrill 300mm - Main Assembly Parts List ITEM DESCRIPTION PART NO BBQ TOP GRATE 227001 CASTING BURNER RADIENT 014508 SPLASHBACK WA 229577 BLUE SEAL BADGE 227960 BURNER SUPPORT 229569 GRATE SUPPORT 229555 BURNER 227286 SIDE HEAT SHEILD 229679 INNER RADIATION PANEL... - Page 22 Replacement Parts List Chargrill 300mm - Main Assembly...
- Page 23 Replacement Parts List Chargrill 300mm - Gas System Assembly Parts List ITEM DESCRIPTION PART NO BURNER 227286 PIEZO - SIT 227508 SUPPLY PIPE 229563 BURNER SHIELD 229718 THERMOCOUPLE 320mm M9 x 1 019428 GAS VALVE 21S 227404 SPARK ELECTRODE 231540 PILOT ASSY 3 WAY 229719 PILOT INJECTOR - 0.35mm - NAT GAS...
- Page 24 Replacement Parts List Chargrill 300mm - Gas System Assembly...
- Page 25 Replacement Parts List Chargrill 600mm / 900mm / 1200mm - Main Assembly Parts List PART No. ITEM DESCRIPTION CH8600G CH8900G CH8120G BBQ TOP GRATE 227001 GRIDDLE PLATE BBQ (300mm) 227002 (OPTIONAL ACCESSORY) GRIDDLE PLATE BBQ (450mm) 227003 (OPTIONAL ACCESSORY) GRIDDLE WA (300mm) 230707 (OPTIONAL ACCESSORY) GRIDDLE WA (450mm) 230710 (OPTIONAL ACCESSORY)
- Page 26 Replacement Parts List Chargrill 600mm / 900mm / 1200mm - Main Assembly Bench Mount Option...
- Page 27 Replacement Parts List Chargrill 600mm / 900mm / 1200mm - Gas System Assembly PART NO ITEM DESCRIPTION G594 G596 G598 BURNER 227286 SUPPLY PIPE WA BBQ 227182 UNION BRASS CONICAL 1/2" BSPT 016044 MANIFOLD 227248 227187 227249 PILOT BURNER KIT - BBQ 019464K PILOT INJECTOR - 0.45mm - NAT.
- Page 28 Replacement Parts List Chargrill 600mm / 900mm / 1200mm - Gas System Assembly...
-
Page 29: Gas Conversion Kits
Replacement Parts List Gas Regulators Gas Regulators Gas Type Model Part No. Description G592 228533 ½” BSP F/F Convertible. Nat. Gas G594 G596 228531 ¾” BSP F/F Convertible. Butane G598 Town Gas 230185 ¾” BSP F/F Adjustable. Gas Conversion Kits...
