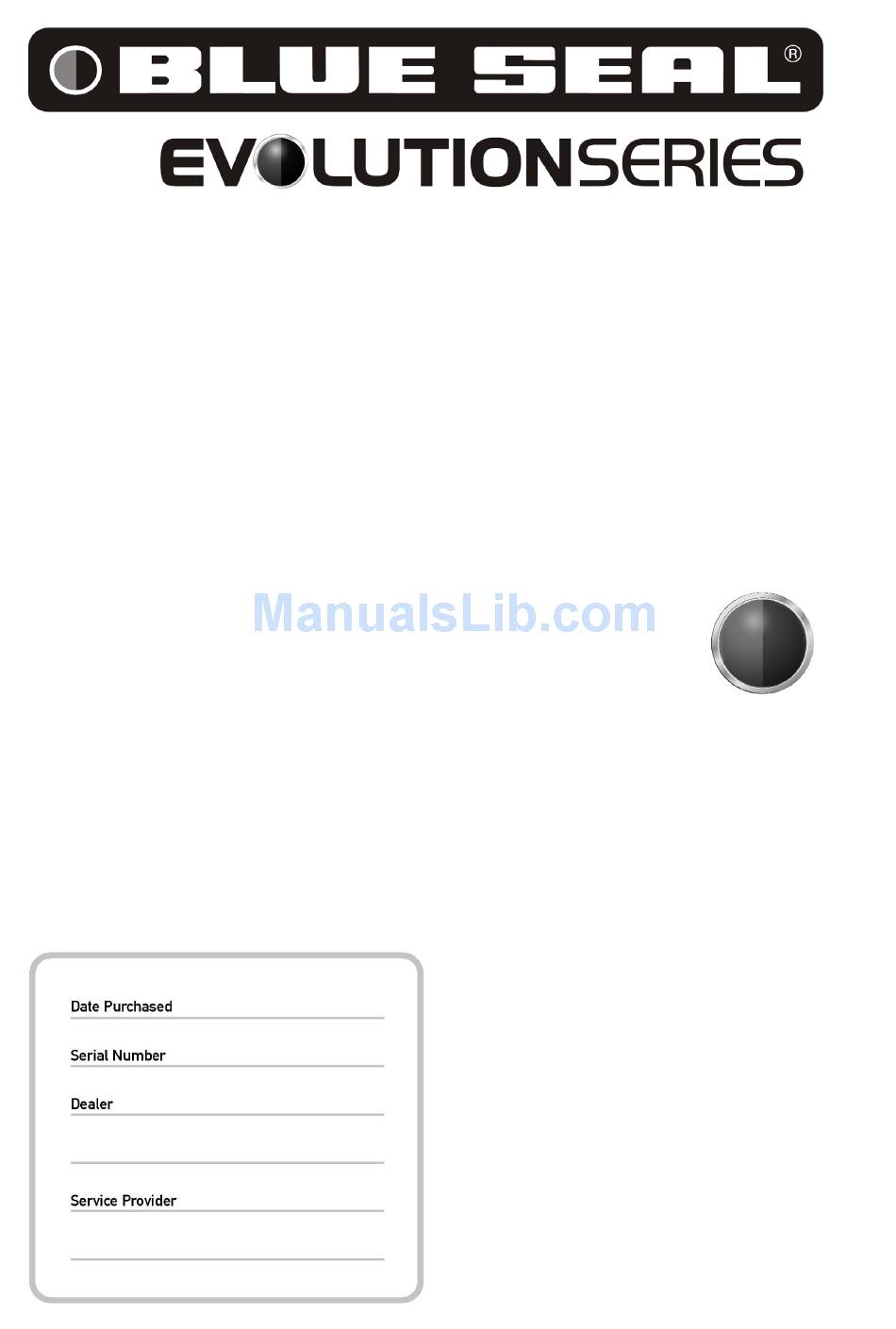

I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L
GAS CHARGRILL
G592
G594
G596
G598
232419-6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution G592 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blue Seal Evolution G592

  • Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS CHARGRILL G592 G594 G596 G598 232419-6...
  • Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design without prior notice.
  • Page 3: Table Of Contents

    Contents G592-B Gas Chargrill, 300mm wide - Bench Model. G594-LS-[2] Gas Chargrill, 600mm wide. G596-LS-[2] Gas Chargrill, 900mm wide. G598-LS-[2] Gas Chargrill, 1200mm wide. Introduction ....................2 Specification ....................3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................
  • Page 4: Introduction

    Introduction We are confident that you will be delighted with your BLUE SEAL CHARGRILL, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal CHARGRILL, there are two important things you can do.
  • Page 5: Specification

    (*) NOTE: • The chargrill burner operating pressure is to be measured at the manifold test point with one burner for G592 model or two burners for other models operating at full setting. • NAT, LPG & Butane Only - The operating pressure is ex-factory set and is not to be adjusted, apart from when converting between gasses, if required.
  • Page 6: Gas Connection

    23mm from the rear and 39mm from the floor and is reached from the rear of the appliance. (Refer to the ‘Dimensions’ section). Connection is ½" BSP male (For G592 model). Bench Models (G594 / G596 / G598 Models Only)
  • Page 7: Dimensions

    Dimensions NOTE: The G592 are available in Bench Model (- B) Option Only. G592-B Plan Side Front G594-B G596-B G598-B = Rating Plate Location for this option.
  • Page 8 Dimensions G594-LS G596-LS G598-LS = Rating Plate Location for this option.
  • Page 9: Installation

    • Report any deficiencies to the distributor who supplied the chargrill. • Check that the available gas supply is correct to that shown on the rating plate attached to the underside of the R/H side, front hob lower trim. Location Combustion Air Requirements G592 G594 G596 G598 Natural Gas...
  • Page 10: Clearances

    200mm Rear 150mm Assembly Bench Models (G592 Model Only) Check that all the feet are securely fitted. Bench Models (G594 / G596 / G598 Models Only) Check that all the feet are securely fitted. Adjust the feet to make the Chargrill steady and level.
  • Page 11: Fitting Leg Stand To Chargrill

    Installation Fitting Leg Stand to Chargrill WARNING: TO PREVENT EQUIPMENT DAMAGE AND RISK OF INJURY REMOVE ALL CHARGRILL CASTINGS BURNERS AND OTHER REMOVABLE ITEMS PRIOR TO FITTING THE LEG STAND Remove the grates, griddle plates and radians from the chargrill. Lower the Chargrill onto it’s rear face.
  • Page 12: Location

    Fit the gas regulator supplied, into the gas supply line as close to the appliance as possible. For G592 the regulator connection is ½" BSP female. The connection on the unit is ½" BSP male. For G594 / G596 / G598 the regulator connections are ¾" BSP female. The connection on the unit is ¾"...
  • Page 13: Operation

    Operation Operation Guide AUTIO N • This appliance is for professional use and is only to be used by qualified people. • Only authorised service persons should be used to carry out installation, servicing or gas conversion operations. • Components having adjustments protected...
  • Page 14: Lighting The Pilot Burners

    Operation Lighting the Pilot Burner WARNING: 350°C HEN THE SOLID GRIDDLE PLATE IS USED URFACE TEMPERATURE CAN REACH OVER WHEN THE APPLIANCE IS OPERATED AT FULL SETTING NOTE: All chargrill models incorporate the push button piezo ignition system for each individual pilot burner.
  • Page 15: Cleaning And Maintenance

    Cleaning and Maintenance AUTIO N Always turn off the gas supply before cleaning. This appliance is not water proof. Do Not use water jet spray to clean interior or exterior of this appliance. General Clean the chargrill regularly. A clean chargrill looks better, will last longer and will perform better. Carbonised grease on the surface or on the chargrill will hinder the transfer of heat from the cooking surface to the food.
  • Page 16: Weekly Cleaning

    Cleaning and Maintenance Weekly Cleaning NOTE: • If the chargrill usage is very high, we recommend that the weekly cleaning procedure is carried out on a more frequent basis. • Ensure that protective gloves are worn during the cleaning process. •...
  • Page 17: Periodic Maintenance

    Cleaning and Maintenance Griddle Plate - (Steel Drop-On) (Optional Extra) AUTIO N Always ensure that an even pressure is applied over the whole surface of the scraper tool when using on the flat surface of the griddle, to prevent scoring of the surface.
  • Page 18: Fault Finding

    Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section.
  • Page 19: Gas Conversion And Specifications

    Gas Conversion and Specifications Conversion Procedure NOTE: • These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning appliance. • Adjustment of components that have adjustments / settings sealed (e.g. paint sealed) can only be adjusted in accordance with the following instructions and shall be re-sealed before re-commissioning this appliance.
  • Page 20 Gas Conversion and Specifications Pilot Burners To remove the pilot burner, disconnect the gas supply tube from the base of the pilot burner. Gas Supply Tube Using a small screwdriver,withdraw injector from inside the pilot burner. Determine the correct injector size for the corresponding gas from the rating plate attached to Fig 15 the inner bulkhead adjacent to the manifold test...
  • Page 21 Gas Conversion and Specifications G592 Model Only Main Burner Heat Shield Panels Remove the gas control knob from the front control panel. The control knob is a push fit onto the shaft of the gas control valve. Remove the front control panel by slackening the 2 x 8mm screws on the front lower edges of the control panel and gently lift off the control panel.
  • Page 22 Gas Conversion and Specifications Using a small flat blade screwdriver, unscrew and remove the pilot injector and spring from the base of Pilot the pilot burner. Burner Determine the correct injector size for the corresponding gas from the rating plate attached to the inner bulkhead adjacent to the manifold test point behind the front control panel or from the table at the rear of this section.
  • Page 23 Gas Conversion and Specifications Low Fire Adjustment (All Models) To set the burner low fire adjustment, the low fire adjustment screw on the gas control valve should be screwed fully in, then un-screwed by the measurement shown in the 'Gas Specifications' table at the end of this section.
  • Page 24 Screw NOTE: The operating pressure measured at the manifold test point with one burner for G592 models and burners other models, operating at the 'High Flame' setting. Turn off the mains gas supply and bleed the gas out of the appliance gas lines.
  • Page 25: Gas Specifications

    • The burner operating pressure is to be measured at the manifold test point with one burner for G592 Model or two burners for other models operating at full setting. • NAT, LPG & Butane Only - The operating pressure is ex-factory set and is not to be adjusted, apart from when converting between gasses, if required.
  • Page 26: Replacement Parts List

    Replacement Parts Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual).
  • Page 27 Replacement Parts Chargrill 300mm - Main Assembly...
  • Page 28: Replacement Parts

    Replacement Parts Chargrill 300mm - Gas System Assembly Parts List ITEM DESCRIPTION PART NO BURNER 227286 PIEZO - SIT 227508 SUPPLY PIPE 229563 BURNER SHIELD 229718 THERMOCOUPLE 320mm M9 x 1 019428 GAS VALVE 21S 227404 SPARK ELECTRODE 231540 PILOT ASSY 3 WAY 229719 PILOT INJECTOR - 0.35mm - NAT GAS 227985...
  • Page 29 Replacement Parts Chargrill 300mm - Gas System Assembly...
  • Page 30 Replacement Parts Chargrill 600mm / 900mm / 1200mm - Main Assembly Parts List PART No. ITEM DESCRIPTION CH8600G CH8900G CH8120G BBQ TOP GRATE 227001 GRIDDLE PLATE BBQ (300mm) 227002 (OPTIONAL ACCESSORY) GRIDDLE PLATE BBQ (450mm) 227003 (OPTIONAL ACCESSORY) GRIDDLE WA (300mm) 230707 (OPTIONAL ACCESSORY) GRIDDLE WA (450mm) 230710 (OPTIONAL ACCESSORY)
  • Page 31 Replacement Parts Chargrill 600mm / 900mm / 1200mm - Main Assembly Bench Mount Option...
  • Page 32 Replacement Parts Chargrill 600mm / 900mm / 1200mm - Gas System Assembly Parts List PART NO ITEM DESCRIPTION G594 G596 G598 BURNER 227286 SUPPLY PIPE WA BBQ 227182 UNION BRASS CONICAL 1/2" BSPT 016044 MANIFOLD 227248 227187 227249 PILOT BURNER KIT - BBQ 019464K PILOT INJECTOR - 0.45mm - NAT.
  • Page 33 Replacement Parts Chargrill 600mm / 900mm / 1200mm - Gas System Assembly...
  • Page 34: Gas Conversion Kits

    Replacement Parts Gas Regulators Gas Regulators Gas Type Model Part No. Description G592 228533 ½” BSP F/F Convertible. Nat. Gas G594 G596 228531 ¾” BSP F/F Convertible. Butane G598 Town Gas 230185 ¾” BSP F/F Adjustable. Gas Conversion Kits Gas Type to Convert to...
