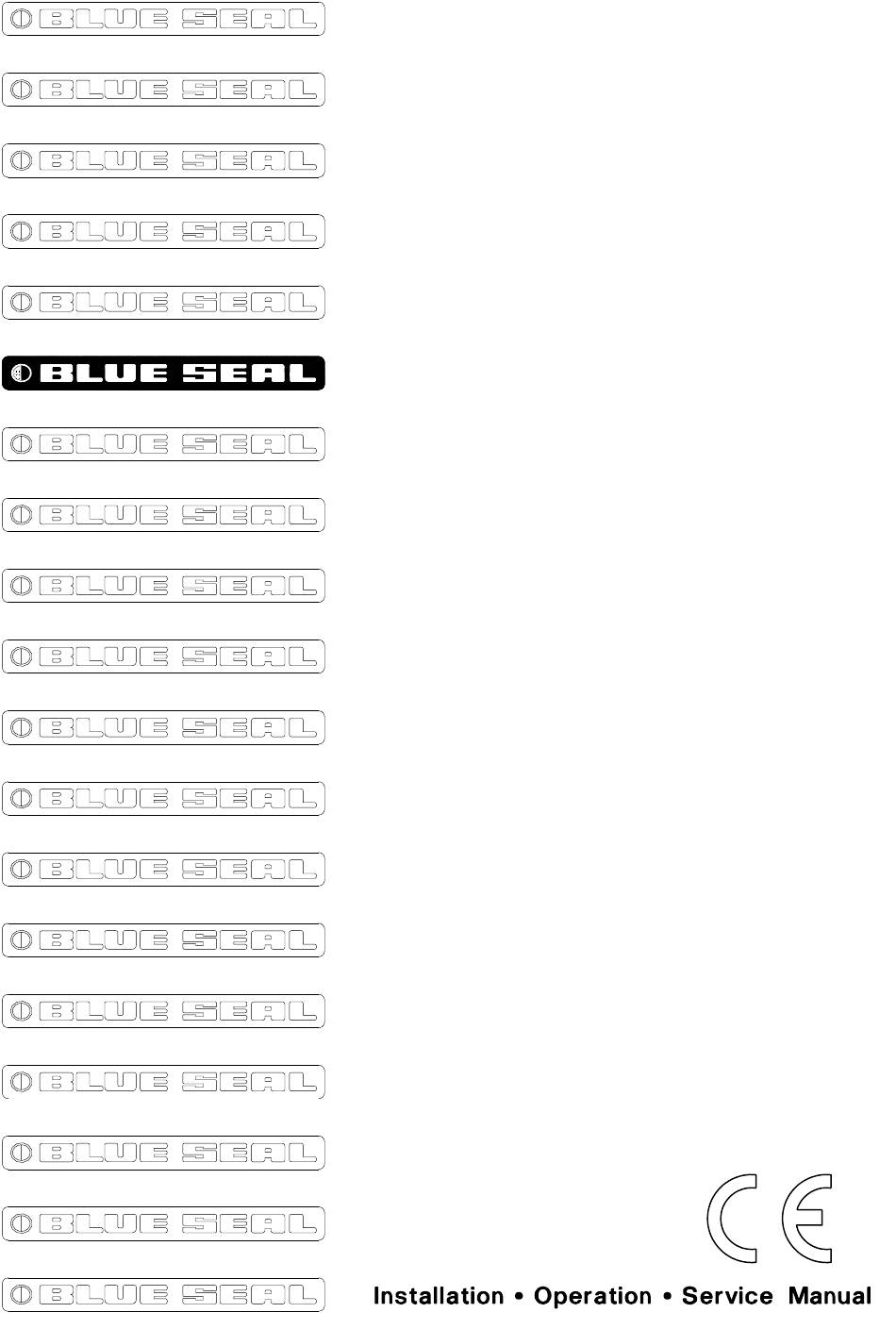

- Page 1 G59 BARBEQUE...
- Page 2 P O Box 10-001 Christchurch New Zealand (03) 3891-007 Fax: (03) 3891-276 WORLD-WIDE BRANCHES UNITED KINGDOM Blue Seal Units 6-7, Mount Street Business Park Mount Street, Nechells Birmingham B7 5 QU (121) 327-5575 Fax: (121) 327-9711 UNITED STATES Moffat Inc...
-
Page 3: Table Of Contents
BLUE SEAL BARBEQUES - G59-4 600mm WIDE BARBECUE - G59-6 900mm WIDE BARBECUE CONTENTS: PAGE INTRODUCTION SPECIFICATION INSTALLATION LOCATION COMMISSIONING OPERATION CLEANING MAINTENANCE SERVICING SPARE PARTS Date Purchased..................Serial No........Dealer................................Service Agent.............................. F19648-6... -
Page 5: Introduction
Please ready the instruction book carefully and follow the directions given. The time take will be well spent. Secondly If you are unsure of any aspect of the installation, instructions or performance of your Barbecue, contact you BLUE SEAL dealer promptly. In many cases, a phone call could answer your questions. -
Page 6: Specification
SPECIFICATION GENERAL A gas fired Barbecue created for modular kitchens. G59-4 600mm wide barbecue G59-4C 600mm wide barbecue with 275 mm griddle plate G59-6 900mm wide barbecue G59-6B 900mm wide barbecue with 430 mm griddle plate G59-6C 900mm wide barbecue with 275 mm griddle plate... - Page 7 SPECIFICATION OVERALL DIMENSIONS G59-4 G59-6 Width 600mm 900mm Height to Hob 915mm 915mm Height to Splashback 1065mm 1065mm Depth 812mm 812mm WEIGHT G59-4 115kg G59-4C 105kg G59-6 159kg G59-6B 144kg G59-6C 149kg...
- Page 8 SPECIFICATION G59-4...
- Page 9 SPECIFICATION G59-6...
-
Page 10: Installation
Check the gas supply and characteristics for the type of gas supply line pressure and capacity. Installation must allow for a sufficient flow of fresh air for the combustion air supply. Combustion air requirements: G59-4 G59-6 Natural Gas (G20) 18m³/hr minimum 27m³/hr minimum... -
Page 11: Location
INSTALLATION Pressures can be tested at the test point nipple located on the manifold behind the front control panel. To alter the gas pressure, adjust the pressure regulator. The 3/4" inlet/outlet gas regulator supplied only with units for use on NATURAL GAS must be installed on the 3/4"... -
Page 12: Operation
THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND TO BE USED BY QUALIFIED PEOPLE. IGNITION OF PILOT BURNER The G59-4, G59-6 and Barbecues incorporate the push bottom piezo ignition system for each individual pilot burner. Push-in control knob and rotate anti-clockwise to PILOT position. -
Page 13: Cleaning
CLEANING EXTERIOR: Clean with detergent. Baked on deposits or discolouration may require a good quality Stainless Steel Cleaner or stainless steel wool. Always apply cleaner when Barbecue is cold and rub in the direction of the grain. INTERIOR: The entire top grates, inner radiants, burners and lower heat deflectors can be dismantled for cleaning. -
Page 14: Servicing
SERVICING IT IS RECOMMENDED THAT A SERVICE CHECK IS CONDUCTED EVERY SIX MONTHS. NOTE: Components having adjustments protected (e.g. paint sealed) by manufacturer are only allowed to be adjusted by an authorised service agent. They are not to be adjusted by an unauthorised service person. BURNER AIR ADJUSTMENT All gas adjustments should be carried out by an authorised person. - Page 15 SERVICING GAS CONTROL - Servicing To regrease gas control, remove control knobs and control panel. Remove 2 screws holding shaft plate to gas control body and remove control shaft and plate. Note orientation of shaft for correct re-assembly. Using needle nose pliers or similar, pull out gas control spool, again noting orientation. Using suitable compound rated for use with Natural and LP gases and high temperature rating, re-grease spool.
-
Page 16: Spare Parts
SPARE PARTS The supplier will be able to offer quicker service if parts are ordered by their correct name and part number. If the part is not in the list below, please quote the model and serial number and a description of the part required. DESCRIPTION PART NO Main Burner... - Page 17 -17-...
- Page 18 -18-...
