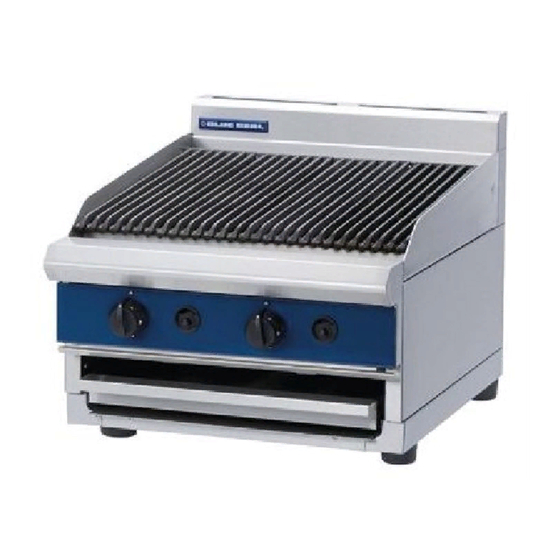

Blue Seal G592 Installation And Operation Manual
Evolution series gas chargrill
Hide thumbs
Also See for G592:
- Service manual (44 pages) ,
- Installation and operation manual (35 pages) ,
- Installation and operator's manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Blue Seal G592
Summary of Contents for Blue Seal G592
- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS CHARGRILL G592 G594 G596 G598 For use in GB, IE & DK...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
-
Page 3: Table Of Contents
Contents List G592-B Gas Chargrill, 300mm wide - Bench Model. G594-[2] Gas Chargrill, 600mm wide. G596-[2] Gas Chargrill, 900mm wide. G598-[2] Gas Chargrill, 1200mm wide. NOTE: [2]: LS - On Leg Stand. - Bench Models. Introduction ....................2 Specification ....................3... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL CHARGRILL, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Blue Seal CHARGRILL, there are two important things you can do. -
Page 5: Specification
” BSP Male ” BSP Male * - Measure burner operating pressure at the manifold test point with one burner for G592 Model or two burners for other models, operating at full setting. Operating pressure is ex-factory set and not to be adjusted, apart from when converting between gases, if... -
Page 6: Dimensions
Dimensions G592-B NOTE: The G592 are available in Bench Model (- B) Option Only. G594-B G596-B G598-B... - Page 7 Dimensions G594-LS G596-LS G598-LS = Rating Plate Location for all options.
-
Page 8: Installation
Blue Seal chargrills are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 9: Clearances
Left / Right Hand Side 200mm Rear 150mm Assembly Bench Models (G592 Model Only) Check all feet are securely fitted. Bench Models (G594 / G596 / G598 Models Only) Check all feet are securely fitted. Adjust feet to make Chargrill steady and level. -
Page 10: Fitting Leg Stand To Chargrill
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED PERSON. Blue Seal Chargrills do not require an electrical connection, as they function on the gas supply only. It is essential that the gas supply is correct for the Chargrill to be installed and that an adequate supply pressure and volume is available. -
Page 11: Commissioning
Fit gas regulator supplied, into gas supply line as close to appliance as possible. For G592, regulator connection is ½" BSP female. Connection on unit is ½" BSP male. For G594/G596/G598 regulator connections are ¾" BSP female. Connection on unit is ¾" BSP male. -
Page 12: Operation
Operation Operation Guide Caution This appliance is for professional use and is only to be used by qualified persons. Only authorised service persons are to carry out installation, servicing or gas conversion operations. Components having adjustments protected (e.g. -
Page 13: Lighting Pilot Burner
Operation Lighting Pilot Burner Warning 350°C HEN THE SOLID GRIDDLE PLATE IS USED S SURFACE TEMPERATURE CAN REACH OVER WHEN THE APPLIANCE IS OPERATED AT FULL HEAT SETTING NOTE: All chargrill models incorporate a push button piezo ignition system for each individual pilot burner. -
Page 14: Griddle Plate Fitting
Operation Griddle Plate Fitting. The following options of griddle plate (Fig 4) can be fitted to the chargrill:- (A) Griddle Plate 300mm or 450mm wide (cast). (B) Griddle Plate 300mm or 450mm (fabricated). NOTE: If fitting a Griddle Plate to your Fig 4 chargrill, remove the required cast... -
Page 15: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn ‘Off’ the gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean the chargrill regularly. A clean chargrill looks better, will last longer and will perform better. Carbonised grease on the cooking surface or on the chargrill will hinder the transfer of heat from the cooking surface to the food. -
Page 16: Weekly Cleaning
Cleaning and Maintenance Weekly Cleaning NOTE: If chargrill usage is very high, we recommend weekly cleaning is carried out more frequently. Ensure protective gloves are worn during cleaning. DO NOT use harsh abrasive detergents, strong solvents or caustic detergents as they will damage chargrill and burners. -
Page 17: Periodic Maintenance
Cleaning and Maintenance Main Burners a. Clean main burners with hot water, a recommended detergent solution and a scrubbing brush. Ensure any excess water is removed from inside burners. Dry all burners thoroughly with a dry cloth. Fig 9 b. Ensure burners are fitted correctly over main injectors and are located properly into recesses in chargrill. -
Page 18: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 19: Gas Conversion And Specifications
Remove the following:- Gas control knobs. Control Panel. Chargrill castings / griddle plates and inner radiants. G592 Only - Remove left / right and end inner heat shield Main Burner panels. Main burners. Aeration Shutter Remove main burner injectors and replace with correct size injectors as shown in ‘Gas Specifications Tables’... -
Page 20: Gas Specifications
See Figure Above NOTE: * - Measure burner operating pressure at manifold test point with one burner for G592 Model or two burners for other models, operating at full setting. Operating pressure is ex-factory set and is not to be adjusted, apart from when converting between gases, if required. -
Page 21: Replacement Parts List
When ordering replacement parts, please quote the part number and description as listed below. If the part required is not listed below, request part by description and quote the model and serial number which is shown on rating plate. CHARGRILL G592 - PARTS LIST Part No. Description... -
Page 22: Gas Conversion Kits
Replacement Parts List Gas Regulators Gas Regulators Gas Type Model Part No. Description G592 228533 ½” BSP F/F Convertible. Nat. Gas G594 G596 228531 ¾” BSP F/F Convertible. Butane G598 Town Gas 230185 ¾” BSP F/F Adjustable. Gas Conversion Kits...
