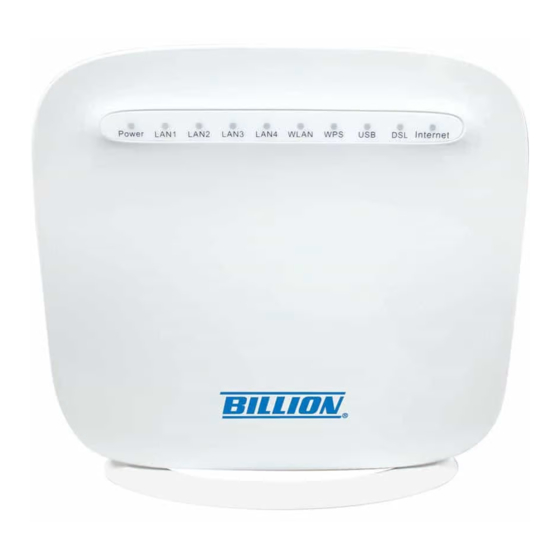

How to setup your Billion 8800NL Radio
Router
What is in the box:
1 Welcome letter including a setup guide
1 Router
1 Power Lead
1 Yellow Ethernet Lead
1 Blue Ethernet Lead
Procedure:
1. Take your router out of the box and connect the power lead to the router, please do not
turn it on until you have all other leads connected.
Please see image below:
2. Connect your Blue Ethernet Lead into the
Please see image below:
3. The blue lead then connects into the IDU's (Black box labelled Alvarion) Ethernet port
(On the side)
The black lead in the end goes off to the aerial and must be in the 'Radio' port in the end
of the IDU.
When fully functional you will have 2 lights on the IDU as highlighted in the image.
blue
EWAN port on the back of the router.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Billion 8800NL
Summary of Contents for Billion 8800NL
- Page 1 How to setup your Billion 8800NL Radio Router What is in the box: 1 Welcome letter including a setup guide 1 Router 1 Power Lead 1 Yellow Ethernet Lead 1 Blue Ethernet Lead Procedure: 1. Take your router out of the box and connect the power lead to the router, please do not turn it on until you have all other leads connected.
- Page 2 4. If you wish to connect a device hardwired, you will need to use the Yellow Ethernet Lead provided with the router and connect it to one of the 3 Yellow LAN ports available. Please see image below: Please Note: blue Ethernet port labelled EWAN must only be used for the connection to the IDU.
