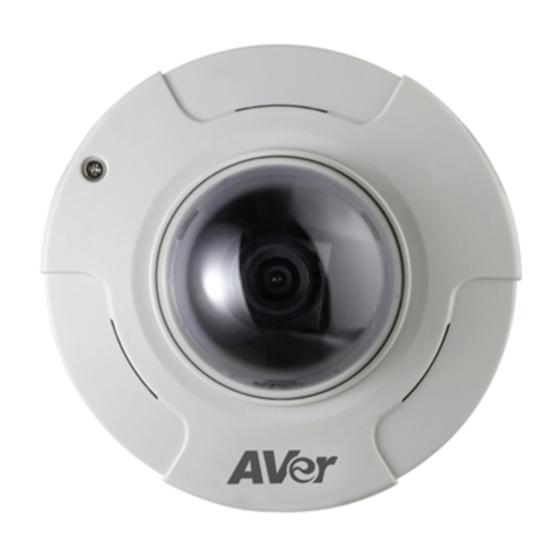

AVer FD2000
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVer FD2000

Summary of Contents for AVer FD2000

  • Page 1 AVer FD2000 User Manual...

  • Page 3: Table Of Contents

    Table of Contents PREFACE............................1 PRODUCT FEATURES ........................1 SPECIFICATIONS ..........................2 PACKAGE CONTENTS........................4 PRODUCT INSTALLATION ......................... 5 ........................... 5 ONITOR ETTING I/O P ................6 ARDWARE NSTALLATION AND SSIGNMENT ......................... 6 RODUCT VERVIEW ................... 8 ETWORK UTTON EFINITION ..........................
  • Page 4 > U > G ................32 YSTEM ANAGEMENT UEST > N > S ..................33 YSTEM ETWORK ETTING ETTING > N > RTSP ................... 34 YSTEM ETWORK ETTING > I ..........................35 YSTEM MAGE > I >P ...................... 35 YSTEM MAGE REFERENCE >...

  • Page 5: Preface

    FD2000 can provide superior quality video during the day without compromising on nighttime performance with its digital day and night function.

  • Page 6: Specifications

    Specifications Hardware 256MB Flash 256MB Image Sensor 1/3” CMOS (2 megapixels) Lens Type Fixed lens, f=3.4mm Electric Shutter 1/25~ 1/8192 sec (PAL); 1/30~ 1/8192 sec (NTSC) Video Out Audio In 1 (built-in microphone, mono type) G.711 (64K) Audio Out Power over Ethernet Power Consumption PoE Class 0 (IEEE802.3af): 5.5W This unit operates with PoE as power supply only.
  • Page 7 System Motion Detection Yes, 4 different areas Triggered Action N/A. All the triggered actions have to be done on VMS software or standalone NVR device. Pre/ Post Alarm N/A. All the triggered actions have to be done on VMS software or standalone NVR device. Security Password Protection Firmware Upgrade...

  • Page 8: Package Contents

    Package contents Item Descriptions 1. FD2000 2. CD (User’s Manual and Quick Guide included) 3. Mounting template label *This model doesn’t support power adapter and only supports PoE power.

  • Page 9: Product Installation

    Product Installation Monitor Setting 1. Right-click on the desktop. Select “ Properties” 2. Change “Color quality” to “Highest (32-bit)”.

  • Page 10: Hardware Installation And I/O Pin Assignment

    Hardware Installation and I/O Pin Assignment 1. Product Overview...
  • Page 11 Definition: Index # Name Bracket Body Top Case...

  • Page 12: Network Led And Button Definition

    Network LED and Button Definition 2. Installation Step 1: Use the mounting template label to mark-out and prepare the mounting area. Drill a round hole with Ø84 ㎜ in diameter in the ceiling. Put network cable through the round hole on the ceiling, and then attach to the camera body.
  • Page 13 Step 2: Use a screwdriver to swivel three screws to bring out three locking arms. Tighten the screws sufficiently to compress the arms to adjust to mounting surface. [Notes] The clip design is suitable for the suspended ceiling less than 25.5mm in thickness Locking arm Step 3: Then adjust the tilt angle screw to shoot the suitable scenery...
  • Page 14 Step 4: Attach the camera housing with extra care on direction. Step 5: Fasten the camera by screwing cover to the pedestal with screws and complete installation.

  • Page 15: Disassembling The Camera

    3. Disassembling the Camera Step 1: Loosen the screws on the cover. Step 2: Remove the camera housing...
  • Page 16 Step 3: Pull down the camera while the bracket is still attached to the ceiling. Move the two fasteners to take out the camera body. (Two of three applicable fasteners in total can be forced to move). Take off the camera body while the bracket is still attached to the ceiling.
  • Page 17 Step 4： ： ： ： Pull down network cable and finish disassembly.

  • Page 18: Power Over Ethernet (Poe)

    Power Over Ethernet (PoE) Set up the IP camera through Power over Ethernet (PoE). PoE is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations.

  • Page 19: Ip Assignment

    Finding IP Camera by using “NXU Lite recording software” − Finding IP Camera by using “AVer IPCam Utility” Finding IP Camera by using “NXU Lite recording software” 1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first.
  • Page 20 3. Click “Setup” button. 4. Click “Add IPCam” button. 5. Select “IP Camera” item.
  • Page 21 IP camera’s setting; even the IP camera is not in the same IP segment. Press “OK” to back to previous screen and press “Connect” to start live view. Double-click the IP camera model that user has purchased (ex: FD2000). Please ignore ONVIF protocol selection; NXU Lite doesn’t support ONVIF...

  • Page 22: Finding Ip Camera By Using "Ip Installer

    Finding IP Camera by using “AVer IPCam Utility” 1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is in the attached software CD. 2. Run the IPCam Utility 3. Select the proper network adapter and click [Search] to begin searching.
  • Page 23 The IE browser will open and direct you to IP camera login page. This requires IPViewer.ocx to run. If the IE ActiveX warning message appears, click to allow running the add-on. [Note] The default IP address is: 192.168.1.168 The default ID and Password are both ”admin”. It is not allowed to enter device name in Chinese and any other special characters (' "...

  • Page 24: Using Dhcp Server/Router Network

    Using DHCP Server/Router Network To use DHCP, please change the setting on the IE: IE configuration network setting enable DHCP function Apply. After finishing the setting, please use AVer IPCam Utility to find IP Camera.

  • Page 25: Using Non-Dhcp Server/Router Network

    Using NON-DHCP Server/Router Network In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict. Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same.
  • Page 26 A quick way to access remote monitoring is to double-click on a selected IP camera in “Camera Name list” in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera. [Notes]: The default Gateway number is 0.0.0.0. Users can change Gateway number only when choosing Static IP.

  • Page 27: Install Activex Control

    Install ActiveX Control The first time you attempt to view the camera video via Internet Explorer, it will ask you to install the ActiveX component. If the installation fails, please check the security settings for the Internet Explorer browser. 1. IE Tools Internet Options…...
  • Page 28 When the following dialogue box appears, click “Yes”.

  • Page 29: Using The Ip Camera Browser Interface

    Using the IP Camera Browser Interface The admin have the full access to the IP Camera browser interface. The menu on the left, you can expand and navigate to access all the features. Preview Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box.
  • Page 30 Name Function (4) FW Version Show IP camera’s current firmware version (5) Logout Exit the application (6) Stream status display Press button to display video stream status, such as codec and frame rate. Press it again to turn off. (7) Video screen Change the video screen display.

  • Page 31: System > General

    System > General n this section, only admin level is authorized to configure the IP camera system maintenance and the date and time settings. System > General > Maintenance In the Maintenance tab, the administrator can upgrade the system firmware; reset the configuration settings, reboot, and restore all back to factory default settings.

  • Page 32: To Upgrade The Ip Camera Firmware

    Name Function (5) Network Camera Turn the IP camera off and on again. Reboot (6) Firmware Upgrade Upgrade the firmware to the latest version. All camera motions will shut down during firmware update. Close any other screens before starting a firmware update.

  • Page 33: System > General > Date & Time

    System > General > Date & Time In the “Date & Time” tab, the administrator can set and update the system’s date and time. After filling in the correct settings, click Apply to apply the new settings. Name Function (1) Synchronization Mode Select the date &...

  • Page 34: System> General > Event Log

    Name Function time. (effective in NTP mode only) System> General > Event Log In this section, it displays the IP camera system event log.

  • Page 35: System > User Management

    System > User Management In this section, only admin level is authorized to create, delete, and edit the account in Account tab and configure the client connection setting in Connection tab. System > User Management > Admin IP camera supports two different user accounts – Administrator (Admin) and Guest User. User Type Access Rights Admin...

  • Page 36: System > User Management > Guest User

    System > User Management > Guest User There are five Guest Users. Enter the user name in “Username”, the password in “Password”, and re-enter the password to confirm. The default language is English. [Note] 1. The password can’t be empty, otherwise, user are not able to login successfully. 2.

  • Page 37: System > Network Setting > Setting

    System > Network Setting > Setting Device Name: Key in the preferred device name to rename it. Default name is “ipcam”. Network Type: IP camera supports DHCP, static IP. Click Apply to save the configuration. − DHCP: Using DHCP, please choose “ON” to enable it and IP camera will get all the network parameters from DHCP server automatically.

  • Page 38: System > Network Setting > Rtsp

    System > Network Setting > RTSP Users can set RTSP port here. 1. RTSP URLs for Stream 1, Stream 2 and Stream3 are: rtsp://(ip address):(RTSP port)/stream1, rtsp://(ip address):(RTSP port)/stream2, rtsp://(ip address): (RTSP port)/stream3, respectively. 2. RTSP default ID/Password: rtsp/1234. If users set the ID the same as login ID, the password has to be the same as login in password.

  • Page 39: System > Image

    System > Image There are 2 tabs: Preference and Privacy Mask. System > Image>Preference In Preference tab, you can adjust the IP camera image parameters, change the video orientation, and adjust the enhanced functions, such as Shutter Speed, Day-Night and D-WDR. Exposure: Auto Exposure: Automatic Exposure controls the light intensity of picture.
  • Page 40 Sense up: Sense up can be enabled if the sensitivity is still not good enough under “High” gain condition at dark. Optimal image level can be maintained by appropriate gain and shutter combination that determined automatically inside the unit system. Sense up can be selected from OFF, 1/30, 1/15, and 1/7.5.
  • Page 41 WDR: This function to provide clear images even under back light circumstances where intensity of illumination can vary excessively namely when there are both very bright and very dark areas simultaneously in the field of view of the unit. WDR enables capturing and displaying of both bright and dark areas in the same frame in a way that there are details in both areas, i.e.

  • Page 42: System > Image > Privacy Zone

    System > Image > Privacy Zone For the security purpose, there are four areas can be setup for privacy mask. Click “Set Privacy Zone” button first and drag an area on the image screen. Then, click Apply button to save the setting. Please set up these four privacy zones one by one.

  • Page 43: System > Video Stream > Profile

    Bit Rate Control, and GOP. Be sure to click Apply when done. [Note] 1. To get the best mobile viewing quality, please download AVer iViewer (AndroidViewer) from the Apple App store or Google Play. iViewer takes video from Stream 1 or Stream 2.

  • Page 44: System > Audio

    System > Audio FD2000 supports 1-way audio (mono). User can send audio from IP camera built-in MIC to remote site. a. IP Camera to PC: select “ON” to start this function. b. Select audio input level among High, Mid, and Low for sound input level.

  • Page 45: Event > Motion

    Event > Motion This function is designed to trigger a video recording when the unit detects a motion. Motion Detection: Set “ON” to turn on motion detection and set motion sensitivity and area Sensitivity: Choose different levels of 1~100 for sensitivity. “100”: Motion is activated with slight changes in brightness or motion.

  • Page 46: Status Information

    Status Information Networking Info: Displays network information of the IP camera. Product Info: Displays product information of IP camera.

  • Page 47: Factory Default

    Factory Default 1. Beside Ethernet jack, find the default hole at left side. 2. Press and hold for 5 seconds to return to factory default. 3. To reboot system, press reset hole for 5 seconds. 4. When it goes back to default setting, the default gateway is 0.0.0.0. Please change the setting in IP finder utility from DHCP to Static IP and then modify the gateway number so that the IP finder utility can find the IP camera successfully.

  • Page 48: Troubleshooting

    Problem Solution I forgot the account and password for Please refer to the manual of “Factory Default setting” FD2000. How can I go back to default description. setting? How can I record video clip from Web We don’t support recording on IE. Please use the GUI? attached free NXU Lite software in CD to record.

  • Page 49: Fcc Notice (Class B)

    © 2012 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form, or by any means without the prior written permission of AVer Information Inc. is prohibited. AVer Information Inc.

  • Page 50: Copyright

    ©2013 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 51: Governing Law And Your Rights

    CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AVER’S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY NATURE, REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT EXCEED THE AMOUNT PAID BY YOU TO AVER FOR THE SPECIFIC PRODUCT UPON WHICH LIABILITY IS BASED.
