WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION. THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE.
Table of Contents IMPORTANT SAFEGUARD ....................1 PACKAGE CONTENTS ....................... 2 IP CAMERA INSTALLATION ....................3 INSERT MICROSD CARD ....................4 EXTERNAL AUDIO CABLE INSTALLATION ..............5 .......................... 6 > G ......................8 YSTEM ENERAL > G > M ................... 8 YSTEM ENERAL AINTENANCE...
Page 5
> S > RTSP A ................... 25 YSTEM ECURITY > I ......................26 YSTEM MAGE > I > OSD ....................26 YSTEM MAGE > I > P ..................27 YSTEM MAGE REFERENCE > I > E ..................28 YSTEM MAGE XPOSURE >...
Important Safeguard Do not use power supply with different voltage Do not submerge the unit in the water. other than DC 12V. Unplug the power of this unit as soon as smoke Unplug the power supply before cleaning. Use or unusual odor is detected. only a lens cleaning cloth and never use benzene, thinner, or other solvent for cleaning.

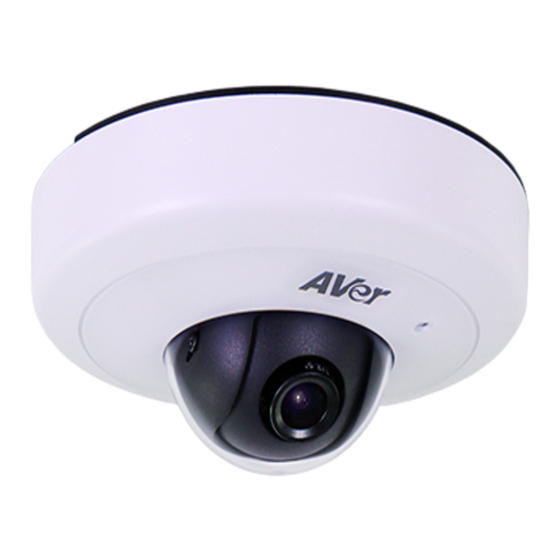

Package Contents The following items are included in the package. AVer Dome type Camera Software & Manual CD Alignment Sticker 2 Plastic Anchors Screw DIDO & Audio cable RJ45 header Power plug** Power Adapter (12V, 2A)
IP Camera Installation Place the sticker on the wall surface. Then spot the mark and drill the holes indicated on the sticker. Press both side of tenon to open the cover case of the camera. Use the plastic anchors to secure the camera on the wall.
Close the cover case of the camera as figure shown. The tenon for secure camera Hole for calbe out Insert microSD Card 1. Press both side of tenon to open the cover case of the camera. 2. Insert microSD card Insert microSD card...
External Audio Cable Installation 1. Press both side of tenon to open the cover case of the camera. 2. Connect the external audio cable to the camera. 3. Finally, close camera case cover and secure it.
Using the IP Camera Browser Interface The admin have the full access to the IP camera browser interface. The menu on the left, you can expand and navigate to access all the features. Open the IE browser and enter the IP address of IP camera to access the IP camera Web configuration interface.
Page 12
Name Function (3) Video screen Change the video screen display. Display the actual video pixel size. Display the video screen in compact size. Display the video on the entire screen. Press ESC to exit full screen mode. Switch to view the video stream type. The IP camera can send (4) Stream multiple video streams of up to 3 types.
System > General In this section, only admin level is authorized to configure the IP camera general settings. There are 3 tabs in General settings: Maintenance, Date & Time, and System Log. System > General > Maintenance In the Maintenance tab, the admin can easily backup and restore the IP camera setting, reboot the IP camera, reset all the settings to factory default, and upgrade the IP camera firmware.
Name Function Upgrade the firmware to the latest version. (7) Firmware Upgrade To Upgrade the IP Camera Firmware 1. Download the file from our website and save it in your computer hard disk. 2. Click Browse. Locate and select the file and click Open. 3.
System > General > Date & Time In the Date & Time tab, admin can manually set the date and time setting or synchronize it with the Internet time server or the computer date and time setting. This is used to record the time whenever there is a significant occurrence listed in system log and is also used in event scheduling.
Name Function Select the date & time setting method. (4) Setting Method Sync with local PC time: obtain the date and time setting on the current login computer. Sync with NTP Server: obtain the date and time setting from NTP server.
System > User Management In User Management, only admin level is authorized to create, delete, and edit account to connect to the IP camera and configure the client connection setting. There are 2 tabs in User Management setting: Account and Connection. System >...
Enter the same password in Password and Confirm Password column. Then click Add. To Delete or Edit a User Account Select the user account that you want to delete or edit. Click Cancel to cancel the operation. Click Modify to apply the new changes. Make sure to edit the account before clicking the Modify button.
System > User Management > Connection In Connection page, admin can set the total number of user for accessing the IP camera, and filtering the IP address to allow or deny accessing the IP camera. Http Connection: Select the connection type. For higher security data transmission level, select http &...
System > Network In this section, only admin level is authorized to configure the Network settings. System > Network > Setting In Setting page, you can configure the type of network connection for IP camera and assign name for the IP camera. Depending on the network connection, IP camera can be accessed from the computer within the same local area network (LAN) or anywhere with Internet connection.
Page 21
Name Function Static IP: select this option to manually assign a fix IP address to the (2) Network Type IP camera. PPPoE: select this option to access the IP camera anywhere with Internet connection. To use this option, this requires an account provided by the ISP.
System > Network > Server In Server page, you can configure the Email, FTP, and NAS setting. It is necessary to configure the server settings so that IP camera can perform the task in the Event setting when a trigger is activated. You can configure either one or all of it.
System > Network > Streaming In Streaming page, you can configure the HTTP, HTTPs, RSTP port, and multicast setting. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting.
System > Network > QoS In QoS page, you can configure the Quality of Service setting. Enabling the QoS allows you to set the parameter and prioritize the IP camera to provide stable streaming performance at a certain level in a traffic network.
System > Network > Others In Others page, you can enable/disable the UPnP setting, setup dynamic domain name service, and setup SNMP settings. DDNS is a service that provides fixed host and domain name for the IP camera with dynamic IP address. It automatically updates the new IP address to the dynamic server of the domain name.
Page 26
SNMP (Simple Network Management Protocol) provides a simple framework for administering networked hardware. SNMPv1, SNMPv2c, and SNMPv3 can be enabled simultaneously. SNMPv1 and SNMPv2: The term "Community name" in SNMPv1 and SNMPv2 can be roughly regarded as key. The person who has the community name has the authority to read or edit the information of IP camera via SNMP.
System > Security Only admin levels can adjust the Image setting. There are 3 function tabs: IP Filter, 802.1x, RSTP Auth... System > Security > IP Filter Enable Filter List: Select to turn the IP address filtering on or off. ...
Page 28
Single – add an IP address Network – assign a network address and the corresponding subnet mask to be filtered. Range – assign a range of IP address to be filtered. 3. Click Save to add the created data in the filter list or click Cancel to exit and without saving data.
System > Security > 802.1X IEEE 802.1X is an IEEE Standard for port-based Network Access Control. provides an authentication mechanism to devices wishing to attach to a LAN or WLAN. Mark the check box to Enable 802.1X protocol. Select the EAPOL (EAP over LAN) version, Authentication method and enter the ID and Password.
Select the location of the Text Title. Click the checkbox to enable/disable display the text title. (3) Title Text Enter the title text, e.g. AVer. (4) Logo Select the location of the logo image file. Click the checkbox to enable/disable display the logo.
System > Image > Preference In Preference page, you can tune the IP camera white balance, select display color or black & white, set the flicker frequency, change the video orientation, and adjust the brightness and contrast. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting.
System > Image > Exposure In Exposure page, you can set the exposure zone, exposure mode, and calibrate the DC Iris. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting. Name Function Select the exposure area to define the light distribution and bring out more (1) Exposure Area...
Page 34
Name Function Select to automatically or manually adjust the exposure. (2) Exposure Mode Auto: Exposure level: Adjust exposure level from -2.0 to +2.0 AE Profile: Select the auto exposure scenes – Indoor, Outdoor, or ManualIRIS. Low light priority: Select the one you want to prioritize during low light mode image quality or frame rate.
System > Image > Advanced In Advanced page, you can configure the Wide Dynamic Range and Denoise. After completing the setting, click Save to apply the new setting and Cancel to keep the old setting. Wide Dynamic Range: WDR effectively balances the video image on the screen in both bright and dark areas making it possible to see clear details.
System > Image > Privacy Mask In Privacy Mask page, you can enable 3 privacy masks. Simply adjust the size and position the mask on the area you want to conceal. The viewer will not be able to see the masked area. It will cover the video screen with black frame.
System > Video Stream > Stream Setting Both admin and operator levels can configure the Video Stream. After configuring the video stream setting, click Save to apply the new setting and Cancel to keep the old setting. Name Function Select sensor input resolution from either Norma, Corridor 90, or (1) Sensor Mode 。...
Page 38
Name Function Select frame rate per second of video (6) Frame Rate Select frame internal time period. (7) Intra Frame Period Select the type of video compression codec. The supported codec is (8) Code Type H.264, MPEG4, and MJPEG. On each stream, adjust rate control and video quality setting.
System > Video Stream > Smart Stream Name Function Select the streaming source. This option is only applied to H.264. (1) Stream High: video quality of selected area is better than that of un-selected (2) Quality area. Low: video quality of selected area is worse than that of un-selected area...
System > Audio Both admin and operator levels can configure the IP camera audio setting. After configuring the Audio setting, click Save to apply the new setting and Cancel to keep the old setting. Name Function (1) Audio Select to enable/disable the IP camera built-in mic and mic port. (2) Internal MIC gain Select to boost up the internal/external mic gain or set to normal.
System > microSD Card > Management Both admin and operator levels can manage the SD/microSD Card local storage. After managing the SD/microSD Card setting, click Save to apply the new setting and Cancel to keep the old setting. We recommend formatting the SD/microSD card when using it for the first time. Name Function (1) SD/microSD Card...
Application > Motion Detection Both admin and operator levels can specify up to 3 areas on the screen to monitor the motion. In the motion detection page, the frame will blink when the motion detected has reached the percentage threshold setting. This feature can be utilized to trigger a response in Event setting. To Set the Motion Detection 1.
Application > IVA If IVA function has been disabled, the all corresponded functions are disabled. To enable IVA function, must meet the following conditions: CODEC type is set to “H264” or “MPEG4”. Stream type is set to “Triple” and Stream 3 resolution set to “640x480”. Sensor mode set to “Normal”...
Application > IVA > Cross Detection Cross detection function detects moving objects that cross the virtual lines that user has set up in IP camera application and to trigger the alarm. Click Application > IVA, select Cross Detection from the drop-down list. Enable Cross Detection Area 1/2 check box You will see the red/green line is shown on the video screen.
Application > IVA > Tampering Alarm triggers when the following situation has occurred. Spray-painting: Alarm is triggered when the camera has detected the painting sprayed on the camera’s view for over 2 seconds. Intention Block /Cover: Alarm is triggered when the camera has detected the camera’s view being blocked intentionally over 2 seconds.
Application > IVA > Missing Object Select a certain object on the screen for the camera system to detect; System gives alarm when the object disappears. 1. Click Application > IVA, select the Missing Object from the drop-down list. 2. A red frame will show up on the screen. Click and drag the red frame to the object position and click the frame to adjust the size of frame.
Application > IVA > Suspicious Object Suspicious Object is an unusual object appears on the screen. 1. Click Application > IVA, select the Suspicious Object from the drop-down list. 2. A red frame and green frame will show up on the screen. The red frame is defined as detecting zone and green frame is defined as object size frame.
Application > ePTZ Both admin and operator levels can customize the ePTZ setting. In this section, you can set the patrol target area, patrol sequence and dwelling time. To Setup the ePTZ Click Application > ePTZ. Use the direction buttons and zoom button to locate the patrol target area. Press to view the full image and reset the zoom level.
Page 50
Select the preset target area in the list and press to create the patrol sequence. The selected present target area will be listed in the Patrol Locations. Set the dwelling time for how long you want to stay in the preset target area. Double-click and enter the time.
Event Setting Both admin and operator levels can configure the Event setting. In this section, the IP camera can be configured to perform an action when an event is triggered at the specified time. To Setup the Event 1. Click Event. 2.
Page 52
6. Enable the type of event for the IP camera to trigger. Alarm Interval This triggers the IP camera based on the time that use has set in Minutes column. The interval time rage is 1~60 minutes. Motion Detection Region 1/2/3 This triggers the IP camera when a motion is detected on the motion detection region.
Page 53
Missing Object This triggers the IP camera when a missing object is occurred. The missing object alarm selection will display only when missing object function has enabled. Suspicious Object This triggers the IP camera when a suspicious object is occurred. The suspicious object alarm selection will display only when suspicious object function has enabled.
Page 54
video stream is default value. 8. Click OK to add the event setting, Delete to remove, and Cancel to without save and close the event setting.
Status Information Show the information about the device and network setting.
Page 56
You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement...
Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
