Summary of Contents for AVer FX3000-R

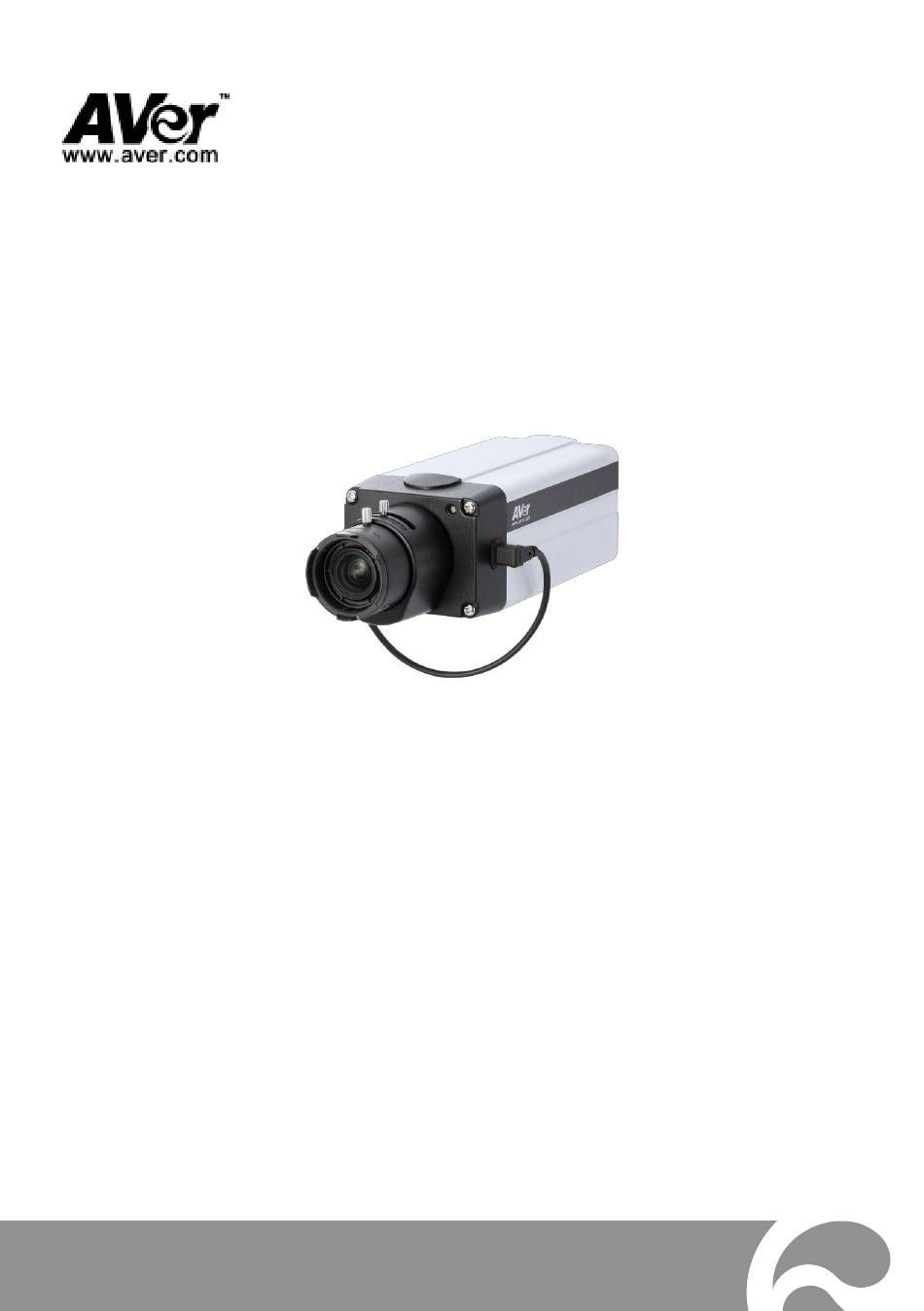

- Page 1 AVer Box type Camera Installation Guide...
-
Page 2: Table Of Contents
IP C BNC M ..............10 OCUSING THE AMERA WITH ONITOR ....................11 ECHNICAL PECIFICATIONS SF2121H-R/FX2000 ....................11 FX3000-R ........................ 14 FCC NOTICE (CLASS B) ....................17 NOTICE ..........................17 WARNING .......................... 17 GOVERNING LAW AND YOUR RIGHTS ................19... -
Page 3: Important Safeguard
ENGLISH Important Safeguard Do not use power supply with different voltage Keep this unit away from direct heat or sunlight. other than DC 12V / PoE. Unplug the power of this unit as soon as smoke Do not expose this unit to rain or high humidity or unusual odor is detected. -
Page 4: Package Contents
Package Contents The following items are included in the package. AVer Vandal Dome type Camera stand Software & Manual CD Camera L-type Hex Wrench 3 Screws 3 Plastic Anchors 3 Lens Ring Pad Optional Accessories Power Adapter (12V, 2A) CS-mount Lens... -
Page 5: Ip Camera Parts
ENGLISH BOX IP Camera Parts Front Panel Built-in MIC Lens Light Sensor Rear Panel RJ45 Ethernet Port DC 12V I/O Terminal Block Power LED Indicator SD card slot (10) Video Out (11) Audio Out Reset button Console (10) MIC (11) DIP switch [Note] The reset button will set all the configuration settings back to factory default. -
Page 6: Ip Camera Installation
IP Camera Installation This section provides useful tips on how to adjust the IP camera to meet your needs. Connecting the Lens Screw in the CS-mount lens clockwise to the CS-mounting ring. Make sure the lens adhesive cover is removed when using it for the first time. -
Page 7: Deploying Network
ENGLISH Deploying Network Network Connection via Ethernet Switch Connect the RJ45 cable from the Ethernet switch to RJ45 Ethernet jack of camera Ethernet Switch Connect the power adapter to DC12V port of camera Wall Outlet Power Adapter... -
Page 8: Power Over Ethernet Connection
Power over Ethernet Connection Box type camera is fully complied with PoE standard. It allows you to use PoE enabled switch or PoE injector to transmit data and power thru single Ethernet cable. PoE Enabled Switch Connection Diagram PoE Switch ... -
Page 9: Connecting External Devices To I/O Terminal Block
ENGLISH Connecting External Devices to I/O Terminal Block (1) Alarm Data In (2) Alarm Data Out (3) Power 12V support 200mA (4) Ground (5) RS-485 (+) (6) RS-485 (-) Power LED Status Steady Red Power on Blinking Red Firmware update complete No Light Power off Internal Connection Diagram of DI/DO... -
Page 10: Adjusting The Cs-Mount Ring
Adjusting the CS-mount Ring Unplug the CS-mount lens cable from the socket. Unscrew the CS-mount lens counterclockwise. Place one lens ring pad. Screw the CS-mount lens and connect the CS-mount lens cable to the socket. Check if the IP camera can display proper image. If not, repeat step 3 and 4 to add the next ring. - Page 11 ENGLISH Remove the CS-mount ring from the IP camera. Screw the CS-mount ring to the CS-mount lens. Screw the CS-mount lens clockwise back. Unscrew a little and plug the CS-mount lens cable to the socket. Repeat this till the IP camera display the image properly.
-
Page 12: Focusing The Ip Camera With Bnc Monitor
Focusing the IP Camera with BNC Monitor The IP camera is supported with BNC analog video out port which allows you to connect an analog display devices such as an LCD BNC monitor for you to adjust the camera focus and zoom. Connect the LCD BNC monitor to the Video Out port of IP camera using a BNC cable. -
Page 13: Technical Specifications
ENGLISH Technical Specifications SF2121H-R/FX2000 Model SF2121H-R FX2000 Len spec. Computer AG3Z3112FCS-MPIR (Optional) lens type vari-focal Lens (CS mount) F/no F/1.2 Iris type DC-Iris focal length f3.1~8mm H 105.4°(W)~42.2°(T) View Angle V 57.9°(W)~23.8(T) MFZ Support Camera image 0.15 Lux@F/1.2 in day mode (color) Min. - Page 14 Model SF2121H-R FX2000 Video Privacy mask areas D-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC Encoder audio compression Streaming 2-ways audio Microphone External microphone input Network TCP/IP (IPv4/IPv6), HTTP, HTTPS, UPnP, SMTP, FTP, DHCP, NTP, Protocols DDNS, PPPoE, Samba, QoS Ethernet...
- Page 15 ENGLISH Model SF2121H-R FX2000 Interface Digital input/output BNC Video output Built-in storage option SDHC card (32GB max.) SDHC & SDXC card (64GB max.) Built-in micophone External microphone input External Audio output RS-485 General Power supply DC 12V(2A)/PoE DC: 5.0W (TYP) Power consumption POE: 6.5W (TYP) PoE Class 3 (IEEE802.3af)
-
Page 16: Fx3000-R
FX3000-R Model FX3000-R Len spec. Computer AG3Z3112FCS-MPIR (Optional) lens type vari-focal Lens (CS mount) F/no F/1.2 Iris type DC-Iris focal length f3.1~8mm H 86.7°(W)~35.2°(T) View Angle V 64.4°(W)~26.5(T) MFZ Support Camera image 0.15 Lux@F/1.2 in day mode (color) Min. illumination 0.0015 Lux@F/1.2 in night mode (B/W) - Page 17 ENGLISH Model FX3000-R Video Sensor-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC Encoder audio compression Streaming 2-ways audio Microphone External microphone input Network TCP/IP (IPv4/IPv6), HTTP, HTTPS, UPnP, SMTP, FTP, DHCP, NTP, protocols DDNS, PPPoE, Samba, QoS, SNMP(V1/V2c/V3), 802.1X...
- Page 18 Model FX3000-R Interface Digital input/output BNC Video output Built-in storage option SDHC & SDXC card (64GB max.) Built-in micophone External microphone input External Audio output RS-485 General Power supply DC 12V(2A)/PoE DC: 5.0W (TYP) Power consumption POE: 6.5W (TYP) PoE Class 3 (IEEE802.3af) Dimensions 165.05mm x 58.6mm x 69mm (L x H x W)
-
Page 19: Fcc Notice (Class B)
© 2013 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice. - Page 20 You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement...
-
Page 21: Governing Law And Your Rights
Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
