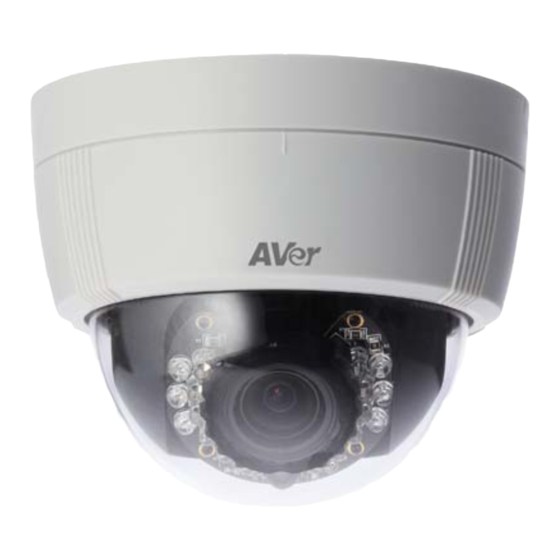

- Page 1 AVer FD2020-1 Quick User Guide...
-
Page 2: Table Of Contents
III. IP Assignment ......................8 Finding IP Camera by using “NXU Lite recording software” ..........8 Finding IP Camera by using “AVer IPCam Utility” ............11 Using NON-DHCP Server/Router Network ..............13 Connecting the IP Camera ..................15 FCC NOTICE (Class A) ..................... 16 COPYRIGHT ........................ -
Page 3: Camera Introduction
The following section introduces package contents, hardware installation, factory default reset, and SD card Compatibility List of each type of camera. 1. Package Contents Item Descriptions 1. FD2020-1 2. Power adapter(option) 3. Screws 4. Wall plugs 5. CD (User’s Manual and Quick Guide, NVR software included) **If any of the above items are missing, please contact your dealer immediately. -
Page 4: Hardware Installation
Hardware Installation Dome Installation a. Use screws to lock the bottom of camera to the ceiling or the wall. b. Use 3-Axis to adjust the lens angle c. Close the dome cover. Tighten the screw on the cover to fix it. - Page 5 2. 3-Axis Diagram Use the 3-Axis bracket to adjust the camera to appropriate angle. 3. Connector Instruction The camera connectors are as below. Connect the power and the Ethernet cable with the camera, and set it according to your network environment.
- Page 6 4. Video Out Connector A Video Out connector is included in the accessories package. Please connect the connector into the Dome base as shown in the pictures below: [Note] TV’s resistance is 75ohm(±10%)
-
Page 7: Factory Default
Factory Default 1. To recover the default IP address and password, please follow the following steps. 2. Remove the power and Ethernet cable. Open the dome cover and press and hold the reset button as shown in the below figure. 3. -
Page 8: Sd Card Compatibility List
3. SD card Compatibility List FD2020-1 is compliant with microSD/SDHC card and to ensure recording quality, and please use the following memory cards. MicroSD/SDHC card Transcend SDHC class4 32GB Transcend SDHC class10 64GB SanDisk SDHC class4 32GB SanDisk SDHC class10 64GB... -
Page 9: Monitor Setting
Monitor Settings 1. Right-click on the desktop. Select “ Properties” 2. Change “Color quality” to “Highest (32-bit)”. -
Page 10: Ip Assignment
Finding IP Camera by using the “NXU Lite recording software” Finding IP Camera by using the “AVer IPCam Utility” Finding IP Camera by using the “NXU Lite recording software” 1. The NXU Lite software is on the attached software CD. Before launching it, please install the software first. - Page 11 3. Click the “Setup” button > Camera. 4. Click the “Add IPCam” button. 5. Select the “IP Camera” item.
- Page 12 IP segment. Press “OK” to go back to the previous screen and press ”Connect” to start live view. Double-click the IP camera model that user has purchased (ex: FD2020-1). Please ignore ONVIF protocol selection; NXU Lite doesn’t support ONVIF...
-
Page 13: Finding Ip Camera By Using "Aver Ipcam Utility
Finding IP Camera by using the “AVer IPCam Utility” 1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is in the attached software CD. 2. Run the IPCam Utility 3. Select the proper network adapter and click [Search] to begin searching. - Page 14 5. The IE browser will open and direct you to the IP camera login page. This requires IPViewer.ocx to run. If the IE ActiveX warning message appears, click to allow the add-on to run. Default ID: admin Default Password: admin [Note] ...
-
Page 15: Using Non-Dhcp Server/Router Network
Using NON-DHCP Server/Router Network In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict. Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same. - Page 16 A quick way to access remote monitoring is to double-click on a selected IP camera in “Camera Name list” in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera. Then, please key in the default “ID” and “Password”, both of which are “admin”.
-
Page 17: Connecting The Ip Camera
IV. Connecting the IP Camera Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the ”ID” and “Password”. The default ”ID” and “Password” are both “admin”. Once connected to the IP camera, the following program interface will appear. -
Page 18: Fcc Notice (Class A)
© 2015 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice. -
Page 19: Limited Warranty
You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement... -
Page 20: Limitation Of Liability
AVer’s total, aggregate liability for damages of any nature, regardless of form of action, shall in no event exceed the amount paid by you to aver for the specific product upon which liability is based.
