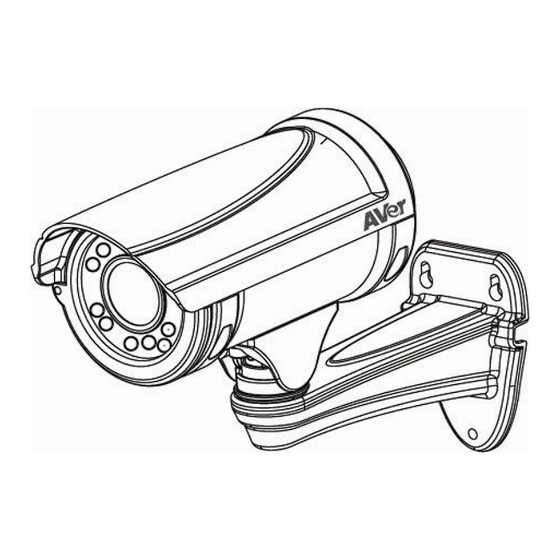

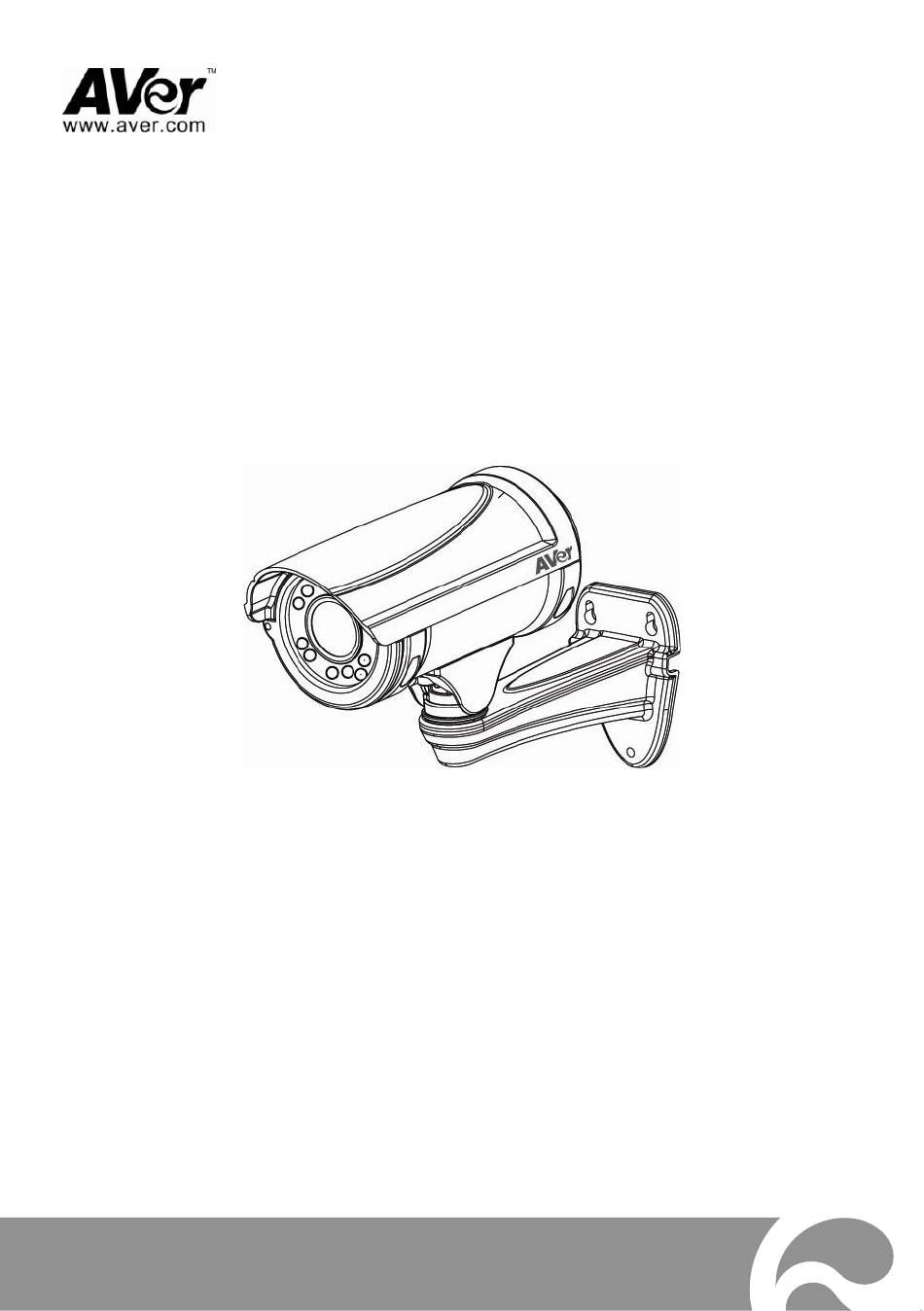

- Page 1 AVer Bullet type Camera Installation Guide...
-
Page 2: Table Of Contents
..................9 NSERT MICRO ARD TO YSTEM HARDWARE RESET ......................10 TECHNICAL SPECIFICATIONS ..................11 FB2027-1 / FB2027-2 ..................11 FB2027-3/ FB3027 ..................15 COPYRIGHT ........................19 NOTICE ..........................19 WARNING .......................... 19 GOVERNING LAW AND YOUR RIGHTS ................20... -
Page 3: Important Safeguard
ENGLISH Important Safeguard Do not submerge the unit in the water. Do not use power supply with different voltage other than DC12V/PoE. Unplug the power supply before cleaning. Use only a lens cleaning cloth and never use Unplug the power of this unit as soon as smoke benzene, thinner, or other solvent for cleaning. -
Page 4: Package Contents
Package Contents The following items are included in the package. AVer bullet type camera Software & Manual CD 2 L-type Wrenches 3 Screws 3 Plastic Anchors Optional Accessories Power Adapter (12V, 2A) and Power cord * The power adapter will vary depending on the standard power outlet of the country where it is sold. -
Page 5: Bullet Ip Camera Parts
ENGLISH Bullet IP Camera Parts Function Function Sun Shield RJ45 Ethernet Jack Camera Lens I/O cable Light Sensor Phone Jack (Audio In) Power Jack Phone Jack (Audio Out) BNC Jack (Video Out) -
Page 6: Mounting The Ip Camera
Mounting the IP Camera This section provides useful tips on how to adjust the IP camera to meet your needs. Deploying Network Network Connection via Ethernet Switch Connect the RJ45 cable from the Ethernet switch to RJ45 Ethernet jack of camera ... -
Page 7: Power Over Ethernet Connection
ENGLISH Power over Ethernet Connection Bullet type camera is fully complies with PoE standard. It allows you to use PoE enabled switch or PoE injector to transmit data and power thru single Ethernet cable. PoE Enabled Switch Connection Diagram ... -
Page 8: Connecting External Devices To I/O Terminal Block
Connecting External Devices to I/O Cable Function Power 12V Digital Output Digital Input Ground [Note] Maximum power output is 12V/100mA Power LED Status Steady Red Heating Blinking Green System working Steady Green Booting Firmware updating No Light Power off Internal Connection Diagram of DI/DO... -
Page 9: Mounting The Ip Camera
ENGLISH Mounting the IP Camera ○ 1 Insert the 3 plastic anchors in the wall. Then, screws the 2 screws into the 2 top of plastic anchors and do not fasten the screws; leave some space to allow IP camera to hook on the screws. ○... -
Page 10: Focusing The Ip Camera With Bnc Monitor
Focusing the IP Camera with BNC Monitor The IP camera is supported with BNC analog video out jack which allows you to connect an analog display devices such as an LCD BNC monitor for you to adjust the camera focus and zoom. 1. -
Page 11: Insert Microsd Card To System
ENGLISH Insert microSD Card to System 1. Open the IP camera case. 2. Insert microSD card [Note] We recommend to use industrial grade microSD card (support operating temp from -40°C to 85°C) for extreme temperature condition. -
Page 12: Hardware Reset
Hardware Reset 1. Open the IP camera case. 2. Short PJ1 pins around 10 seconds. WARNING!! This will cause all the configuration settings back to factory default. -
Page 13: Technical Specifications
ENGLISH Technical Specifications FB2027-1 / FB2027-2 Model FB2027-1 FB2027-2 Lens spec. PTN-2M4016IR PTN-2M6016IR Lens type fixed focal Lens (Board Mount M12 P0.5) F/no F1.6 Iris type Fixed Focal length 4.0mm 6.0mm H 62.4° H 46.8° View Angle V 46.5° V 34.7°... - Page 14 Model FB2027-1 FB2027-2 Video D-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC Encoder audio compression Streaming 2-ways audio Microphone External microphone input Network TCP/IP (IPv4/IPv6), HTTP, HTTPS, UPnP, SMTP, FTP, DHCP, NTP, Protocols DDNS, PPPoE, Samba, QoS, SNMP(V1/V2c/V3), 802.1X Ethernet...
- Page 15 ENGLISH Model FB2027-1 FB2027-2 Interface Built-in microphone External microphone input External Audio output General Power supply DC 12V(2A)/PoE PoE (TYP.): 6.4W (LED/Heater off) 10.6W (LED on, Heater off) 18.5W (LED off, Heater on) 19.7W (LED/Heater on) Power consumption DC-IN (TYP.): 4.6W (LED/Heater off) 8.2W (LED on, Heater off) 14.6W (LED off, Heater on)
- Page 16 Model FB2027-1 FB2027-2 Warranty Main body 2 years Accessories 1 year...
-
Page 17: Fb2027-3/ Fb3027
ENGLISH FB2027-3/ FB3027 Model FB2027-3 FB3027 Lens spec. PTK-2M2812N14IR Lens type vari-focal Lens (Board mount, M14) F/no F1.4 Iris type DC Iris Focal length 2.8~12mm H 97°(W)~28.7°(T) View Angle V 61.2°(W)~21.6°(T) Camera image 1 Lux in day mode (IR off) Min. - Page 18 Model FB2027-3 FB3027 Video Motion Detection zones Privacy mask areas D-WDR De-noise 2D/3D Day & night function Auto/Manual/Schedule ePTZ Audio G.711 (μ-law)/G.726 (bit rate 16K~64bps) /AAC Encoder audio compression Streaming 2-ways audio Microphone External microphone input Network TCP/IP (IPv4/IPv6), HTTP, HTTPS, UPnP, SMTP, FTP, DHCP, NTP, Protocols DDNS, PPPoE, Samba, QoS, SNMP(V1/V2c/V3), 802.1X...
- Page 19 ENGLISH Model FB2027-3 FB3027 Interface Digital input/output BNC Video output Built-in storage option Micro SDHC & SDXC card (64GB max.) Built-in microphone External microphone input External Audio output General Power supply DC 12V(2A)/PoE PoE (TYP.): 6.4W (LED/Heater off) 10.6W (LED on, Heater off) 18.5W (LED off, Heater on)
- Page 20 Model FB2027-3 FB3027 Bundle Software VMS (NXU Lite) Free up to 32CH IPCAM Utility Warranty Main body 2 years Accessories 1 year...
-
Page 21: Copyright
You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement... -
Page 22: Governing Law And Your Rights
AVer specifications, (iii) use of the Product with any accessories or options not furnished by AVer or its authorized agents, or (iv) installation, alteration, or repair of the Product by anyone other than AVer or its authorized agents.
