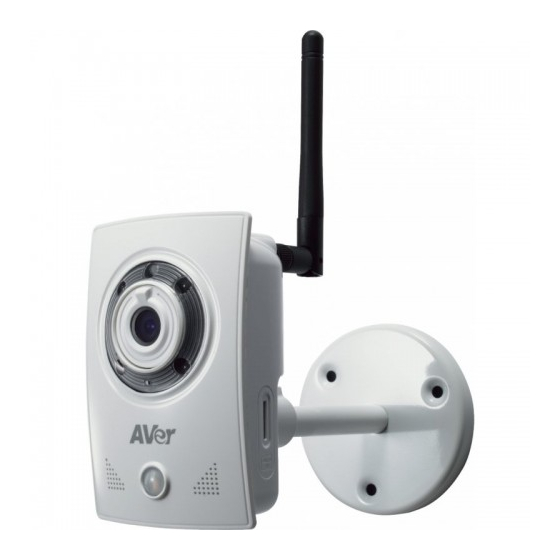

AVer FC2020-P Quick User Manual

Cube ip camera
Hide thumbs Also See for FC2020-P:
Table of Contents

Advertisement

Quick Links

Download this manual
FC2020-P
FC2020-PW
Cube IP Camera
Quick User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC2020-P and is the answer not in the manual?

Questions and answers

Related Manuals for AVer FC2020-P

Summary of Contents for AVer FC2020-P

  • Page 1 FC2020-P FC2020-PW Cube IP Camera Quick User Guide...

  • Page 2: Table Of Contents

    Monitor Setting ....................7 III. IP Assignment ....................8 Finding IP Camera by using “NXU Lite recording software” ......8 Finding IP Camera by using “AVer IPCam Utility”..........11 Using NON-DHCP Server/Router Network............13 IV. Connecting the IP Camera ................15 COPYRIGHT ......................

  • Page 3: Camera Introduction

    The following section introduces package contents, hardware installation, factory default reset, and SD card Compatibility List of each type camera. 1. Package Contents Item Descriptions 1. FC2020-P or FC2020-PW 2. Bracket 3. Screw pack 4. Power Adaptor(DC 12V/0.5A) (Optional) 5. CD (User’s Manual and Quick Guide, NVR software included) 6.

  • Page 4: Hardware Installation

    Hardware Installation 1. Install with bracket Please refer to the picture for camera installation. Use the screws to lock the bracket to the wall or ceiling, and then connect the camera to the bracket. There’s a knob on the back of the bracket. Loosen the knob and you can adjust the angle of camera.
  • Page 5 ENGLISH 2. Connector Instruction The camera connectors are as below. Connect the power and the Ethernet cable with the camera, and set it according to your network environment. 3. I/O Configuration I/O Connection a. Please connect the G & DO pin to the external relay (buzzer) device When no event happens, DO output is 5V (DO and GND are disconnected).
  • Page 6 b. Please connect the G & DI pin to the external trigger device. If you select "N.O" in "Input sensor setting", when external devise or circuit makes DI and GND pin connected, the camera input alarm is triggered, and then camera will execute the action user has set, for example, send snapshot to E-mail address.

  • Page 7: Factory Default

    ENGLISH Factory Default 1. To recover the default IP address and password, please follow the following steps. 2. Remove power and Ethernet cable. 3. Press and hold the button and connect power and Ethernet cable to the camera again and hold for round 20 seconds for system booting.

  • Page 8: Sd Card Compatibility List

    3. SD card Compatibility List FC2020-P and PC2020-PW are compliant with microSD/SDHC card and to ensure recording quality, and please use memory cards over 2G and Class 4 above (Max. 32G) MicroSD/SDHC card Transcend SDHC class4 16GB Transcend SD class4 16GB...

  • Page 9: Monitor Setting

    ENGLISH Monitor Setting 1. Right-click on the desktop. Select “ Properties” 2. Change “Color quality” to “Highest (32-bit)”.

  • Page 10: Ip Assignment

    Finding IP Camera by using “NXU Lite recording software” − Finding IP Camera by using “AVer IPCam Utility” Finding IP Camera by using “NXU Lite recording software” 1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first.
  • Page 11 ENGLISH 3. Click “Setup” button. 4. Click “Add IPCam” button. 5. Select “IP Camera” item.
  • Page 12 IP camera’s setting; even the IP camera is not in the same IP segment. Press “OK” to back to previous screen and press”Connect” to start live view. Double-click the IP camera model that user has purchased (ex: FC2020-P). Please ignore ONVIF protocol selection; NXU Lite doesn’t support ONVIF...

  • Page 13: Finding Ip Camera By Using "Aver Ipcam Utility

    ENGLISH Finding IP Camera by using “AVer IPCam Utility” 1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is in the attached software CD. 2. Run the IPCam Utility 3. Select the proper network adapter and click [Search] to begin searching.
  • Page 14 5. The IE browser will open and direct you to IP camera login page. This requires IPViewer.ocx to run. If the IE ActiveX warning message appears, click to allow running the add-on. [Note] The default IP address is: 192.168.1.168 The default ID and Password are both ”admin”. It is not allowed to enter device name in Chinese and any other special characters (' "...

  • Page 15: Using Non-Dhcp Server/Router Network

    ENGLISH Using NON-DHCP Server/Router Network In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict. Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same.
  • Page 16 A quick way to access remote monitoring is to double-click on a selected IP camera in “Camera Name list” in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera. Then, please key in the default “ID” and “Password”, both of which are “admin”.

  • Page 17: Connecting The Ip Camera

    ENGLISH IV. Connecting the IP Camera Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the ”ID” and “Password”. The default ”ID” and “Password” are both “admin”.

  • Page 18: Copyright

    © 2013 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 19: Limited Warranty

    You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement...

  • Page 20: Governing Law And Your Rights

    Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
