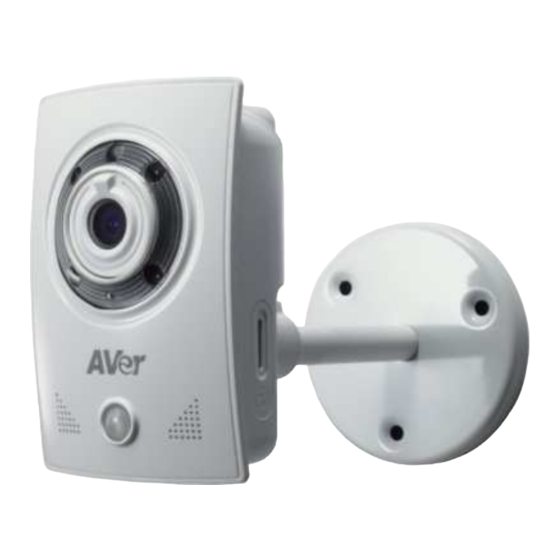

AVer FC1320-PW User Manual
  1. Manuals
  2. Brands
  3. AVer Manuals
  4. Security Camera
  5. FC1320-PW
  6. User manual

AVer FC1320-PW User Manual

Hide thumbs Also See for FC1320-PW:
Table of Contents

Advertisement

Quick Links

Download this manual
AVer FC1320-P/PW
/PW
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC1320-PW and is the answer not in the manual?

Questions and answers

Related Manuals for AVer FC1320-PW

Summary of Contents for AVer FC1320-PW

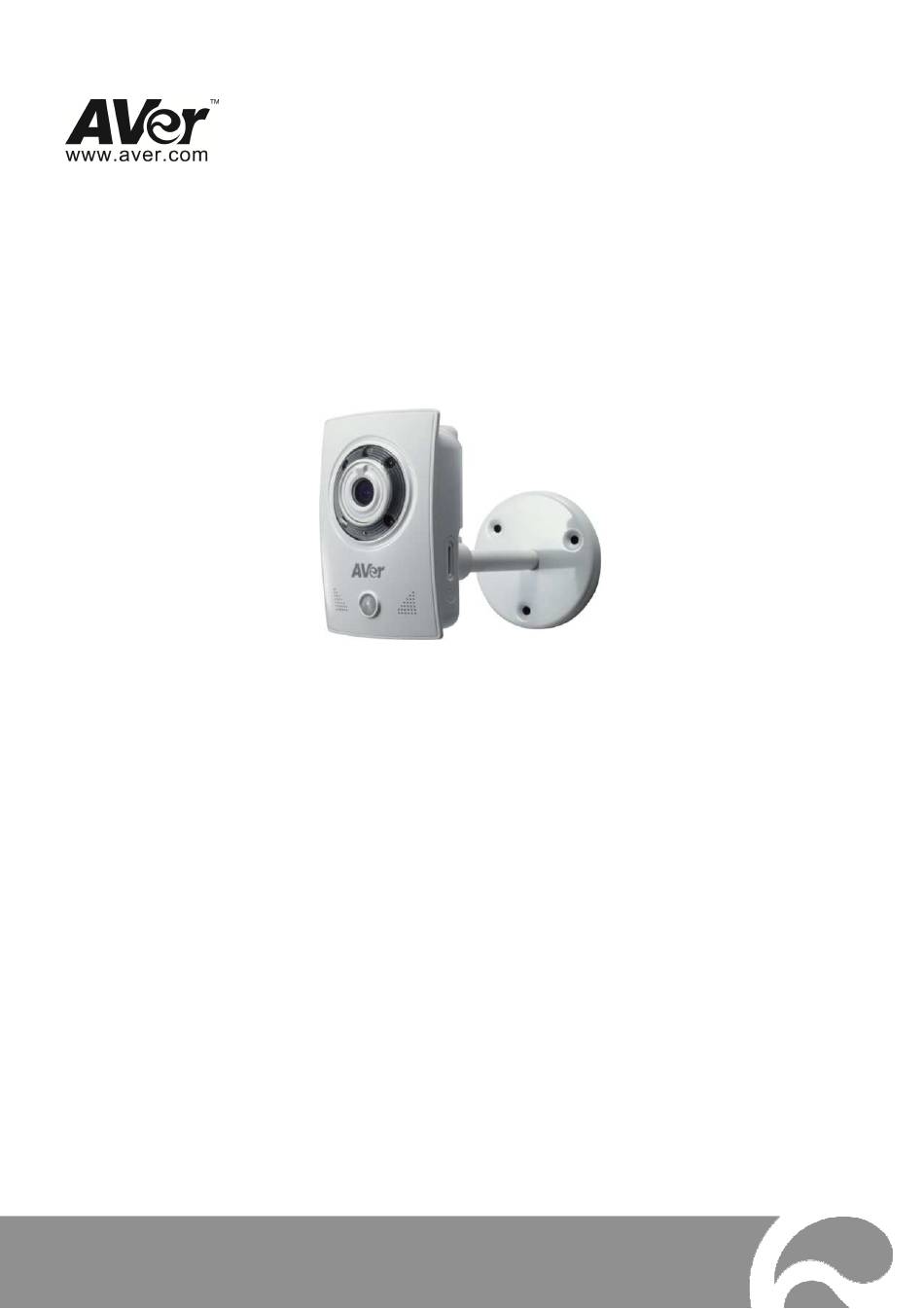

  • Page 1 AVer FC1320-P/PW User Manual...

  • Page 3: Table Of Contents

    Table of Contents PREFACE ..........................1 PRODUCT SPECIFICATIONS ..................... 1 PACKAGE CONTENTS ....................... 5 PRODUCT INSTALLATION ....................6 ......................6 ONITOR ETTING I/O P .............. 7 ARDWARE NSTALLATION AND SSIGNMENT E) ..................10 OWER THERNET IP A ........................ 11 SSIGNMENT IP C “NXU L ”........
  • Page 4 ETWORK ETTING THER > N > IP 6 ................38 YSTEM ETWORK ETTING > N > IP 6>W (FC1320-PW ) ........ 39 YSTEM ETWORK ETTING IRELESS ONLY > A > HTTPS ..................42 YSTEM DVANCE > A > SNMP ................... 44...
  • Page 5 COPYRIGHT ........................72 NOTICE ..........................72 WARNING .......................... 72 GOVERNING LAW AND YOUR RIGHTS ................74...

  • Page 7: Preface

    ENGLISH Preface The FC1320-P and FC1320-PW are compact cube cameras for indoor use with two-way audio communication. It has the added security of a Micro SD based local backup capacity ensuring that images of events also save locally when the alarm is triggered or the network is down. This compact camera offers HD720p resolution and advanced features including intelligent motion detection and privacy masking.
  • Page 8 150g (without bracket); 270g (with bracket) Network Ethernet 10/100 Base-T IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access Network Protocol list, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP (video only), SAMBA, Bonjour Wireless (FC1320-PW model only) 802.11 b/g/n Wireless Security WEP,WPA-PSK,WPA2-PSK...
  • Page 9 ENGLISH System Video Resolution 1280x1024@20fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps Brightness, Contrast, Sharpness, D-WDR, Shutter Video Adjust Speed, Sense-Up, AGC..etc. Triple Streaming Image snapshot Full screen monitoring Privacy Mask Yes, 3 different areas Compression format H.264/ JPEG/ MPEG-4 Video bitrate adjust CBR, VBR Motion Detection Yes, 3 different areas...
  • Page 10 Web browsing requirement ® Windows XP (32-bit), 7 (32/64-bit) ® Microsoft IE 6.0 or above (32-bit only) Notes: Please enable “Compatibility View” while using IE 10 or above. ® Intel Dual Core 2.53GHz, RAM: 1024MB, Graphics Hardware Suggested Card: 128MB Mobil support iOS 5 or above, Android 1.6 or above.

  • Page 11: Package Contents

    Item Descriptions 1. FC1320-P or FC1320-PW 2. Bracket 3. Screw pack 4. Power Adaptor(DC 12V/0.5 0.5A) (Optional) 5. CD (User’s Manual and Quick Guide s Manual and Quick Guide, NVR software included) 6. Antenna (FC1320-PW model only) PW model only)

  • Page 12: Product Installation

    Product Installation Monitor Setting 1. Right-click on the desktop. Select “ Properties” 2. Change “Color quality” to “Highest (32-bit)”.

  • Page 13: Hardware Installation And I/O Pin Assignment

    There’s a knob on the back of the bracket. Loosen the knob and you can adjust the angle of camera. Tighten it to fix the angle. For FC1320-PW wireless model, please install antenna.
  • Page 14 2. Connector Instruction The camera connectors are as below. Connect the power and the Ethernet cable with the camera, and set it according to your network environment. 3. I/O Configuration I/O Connection a. Please connect the G & DO pin to the external relay (buzzer) device When no event happens, DO output is 5V (DO and GND are disconnected).
  • Page 15 ENGLISH b. Please connect the G & DI pin to the external trigger device. If you select "N.O" in "Input sensor setting", when external devise or circuit makes DI and GND pin connected, the camera input alarm is triggered, and then camera will execute the action user has set, for example, send snapshot to E-mail address.

  • Page 16: Power Over Ethernet (Poe)

    IP camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations. [Note] FC1320-PW wireless model doesn’t support PoE 802.3at, 30W PoE Switch is recommended. Ethernet PoE IP Camera...

  • Page 17: Ip Assignment

    Finding IP Camera by using “NXU Lite recording software” − Finding IP Camera by using “AVer IPCam Utility” Finding IP Camera by using “NXU Lite recording software” 1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first.
  • Page 18 3. Click “Setup” button. 4. Click “Add IPCam” button. 5. Select “IP Camera” item.
  • Page 19 ENGLISH 6. Enter IP Camera’s ID and Password (default is admin/admin) and click “Auto Search” to find camera. 7. In Search Result window, click it the IP camera model that user has purchased (Please ignore ONVIF connection item); the camera is in red text that is configurable. User can double-click on the camera is in red text and configure the IP camera’s setting;...

  • Page 20: Finding Ip Camera By Using "Aver Ipcam Utility

    Finding IP Camera by using “AVer IPCam Utility” 1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is in the attached software CD. 2. Run the IPCam Utility 3. Select the proper network adapter and click [Search] to begin searching.
  • Page 21 ENGLISH 5. The IE browser will open and direct you to IP camera login page. This requires IPViewer.ocx to run. If the IE ActiveX warning message appears, click to allow running the add-on. [Note] The default IP address is: 192.168.1.168 The default ID and Password are both ”admin”.

  • Page 22: Using Non-Dhcp Server/Router Network

    Using NON-DHCP Server/Router Network In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict. Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same.
  • Page 23 A quick way to access remote monitoring is to double-click on a selected IP camera in “Camera Name list” in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera. Then, please key in the default “ID” and “Password”, both of which are “admin”.

  • Page 24: Install Activex Control

    Install ActiveX Control The first time you attempt to view the camera video via Internet Explorer, it will ask you to install the ActiveX component. If the installation fails, please check the security settings for the Internet Explorer browser. 1. IE Tools Internet Options…...
  • Page 25 ENGLISH When the following dialogue box appears, click “Yes”.

  • Page 26: Using The Ip Camera Browser Interface

    Using the IP Camera Browser Interface The admin have the full access to the IP camera browser interface. The menu on the left, you can expand and navigate to access all the features. Preview Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box.
  • Page 27 ENGLISH Name Function (2) Login IP Show PC’s IP address (3) Bandwidth Show current IP camera’s transmitting bandwidth (4) FW Version Show IP camera’s current firmware version (5) Logout Exit the application (6) Zoom control Reset zoom level. Increase zoom level. Decrease zoom level.
  • Page 28 Name Function (14) Direction Controller Move the position of the view point while in zoom mode. User has to zoom in first.

  • Page 29: System > General

    ENGLISH System > General n this section, only admin level is authorized to configure the IP camera system maintenance and the date and time settings. System > General > Maintenance In the Maintenance tab, the administrator can check the system event log, upgrade the system firmware, reset the configuration settings without having to change the user management and network settings, reboot, and restore all back to factory default settings.

  • Page 30: To Upgrade The Ip Camera Firmware

    Name Function (4) Firmware Upgrade Upgrade the firmware to the latest version. To Upgrade the IP Camera Firmware 1. Download the file from our website and save it in your computer hard disk. 2. Click Browse. Locate and select the file and click Open.

  • Page 31: System > General > Date & Time

    ENGLISH System > General > Date & Time In the “Date & Time” tab, the administrator can set and update the system’s date and time. After filling in the correct settings, click Apply to apply the new settings. Name Function (1) Current Date &...

  • Page 32: System > User Management

    Name Function (4) Setting Method Select the date & time settings method. Sync with current PC – Obtain the date and time setting on the current login computer. Sync with NTP Server – Obtain the date and time setting from NTP server.
  • Page 33 ENGLISH Add user: Enter the user name in “Username”, the password in “Password”, and re-enter the password in “Confirm”. Then, click “Add/Set”. User List: Click edit to change the account password. To delete the user account, click Remove button. [Note] 1.

  • Page 34: System > Network Setting > Setting

    System > Network Setting > Setting Device Name: Used to name the IP camera to search more easily for this specific one among all connected IP cameras. Network Type: IP camera supports DHCP, static IP and PPPoE. After completed all settings, click Apply to save the configuration.

  • Page 35: System > Network Setting > Sever

    ENGLISH System > Network Setting > Sever Used to send out the video via Email or FTP, or to save on NAS. Mail Setting: Used to send out the video via Email. a. Login Method: Click drop-down list to select the method to login Email server – “Account” or “Anonymous”.

  • Page 36: System > Network Setting > Ddns

    NAS Settings: Used to send out the video to NAS server. a. Enter necessary information in “Location”, “Workgroup”, “Account Name Account Name” and “Password” columns. b. If the user wants to create a new folder on the NAS server to save the video file, select server to save the video file, select “Yes”...
  • Page 37 ENGLISH Status - Common warning message: Updating! Failed(1), Please check your DNS setting. Failed(2), Please check your internet connection. Failed(3), Please check your internet connection. Failed(6), receiving data failure - Warning message from different service provider: Server Provider : dyndns.org Failed(4),Please check the Dyndns.org.

  • Page 38: System > Network Setting > Other 1

    HTTP Port: setup web page connecting port and video transmitting port (Default: 80) HTTPS Port: AVer IP Camera supports encrypted browsing using HTTPS. This is configured on the System > Advance > HTTPS UPnP Support: This IP camera supports UPnP, if this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
  • Page 39 ENGLISH RTP Start and End Port: in RTSP mode, you may use TCP and UDP for connecting. TCP connection uses RTSP Port (554). UDP connection uses RTP Start and End Port. Security: Yes is required account and password to connect with this IP camera through ONVIF protocol.

  • Page 40: System > Network Setting > Other 2

    System > Network Setting > Other 2 Multicast Setting (based on the RTSP Server): User can setup two streaming based on the RTSP Server. Multicast operation example: The application is to get the multicast streaming in the LAN environment. Basically, the users operate VLC player, and then you can get the multicast streaming form IP camera.
  • Page 41 ENGLISH Step 2: 2. Select Demuxers and RTP/RTSP 3. Select force multicast RTP via TRSP 1. Select all Step 3: Select Media/open network stream...
  • Page 42 Step 4: Input rtsp://[IPCAM Address] / [RTSP Path] The URL address should be the same as the RTSP path in Video Stream (System-->Video Stream)
  • Page 43 ENGLISH [Notice] a. If the received image is not from the required IP camera, please adjust the value. (Change either IP Address or Port number) b. If the Multicast stream you use doesn’t support RTSP Keepalive, please select NO.

  • Page 44: System > Network Setting > Ipv6

    Bonjour: This function enables MAC systems to link to this IP Camera. Please key in the name here.(Safari supports Bonjour protocol) LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position (like IP address) of this IP Camera in the network map. In the computer running Windows Vista or Windows 7, you can find LLTD through the path Start Control Panel Network and internet...

  • Page 45: System > Network Setting > Ipv6>Wireless (Fc1320-Pw Only)

    ENGLISH System > Network Setting > IPv6>Wireless (FC1320-PW only) Support 802.11 b/g/n To set up the IP camera via wireless network, use Ethernet cable to connect the camera first. After you finish the wireless setting and save it, remove the Ethernet cable.
  • Page 46 WEP Setting − Authentication: Open System or Shared Key, according to your wireless router − Encryption: The option determines the length of key password. In HEX type, 10 characters are allowed if you select 64 bit while 26 characters are allowed if selecting 128bit; In ASCII type, 5 characters are allowed if you select 64 bit while 13 characters are allowed if selecting 128bit −...
  • Page 47 ENGLISH WPS (Wi-Fi Protected Setup) is an interface standard that allows users to easily establish wireless network, and be free from complicated security setting. Please follow the steps for starting WPS. The menu and usage of every router may be different from the sample pictures. 1.

  • Page 48: System > Advance > Https

    System > Advance > HTTPS HTTPS (Hypertext Transfer Protocol Secure): Https can help protect streaming data transmission over the internal on the higher security level. You can select the connection type. "Https" means user cannot connect the camera via Http protocol. The HTTPS path will be: "https ://( IP address)/". If you select "Http &...
  • Page 49 ENGLISH Created Request: Setting the secure identification and apply it. There are two ways to set Certificate- Install Signed Certificate or Create Self-Signed Certificate.

  • Page 50: System > Advance > Snmp

    System > Advance > SNMP SNMP (Simple Network Management Protocol) provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare a MIB browser or similar tools first. SNMPv1, SNMPv2c, and SNMPv3 can be enabled simultaneously.
  • Page 51 ENGLISH SNMPv3: For data security reason, the authentication and encryption assurances are added when developing SNMPv3. The user has to give not only the security name (the same as "community name" in v1&v2c, or sometimes we call it "context name") but the password in order to access the IP camera.

  • Page 52: System > Advance > Access List

    System > Advance > Access list You can deny an IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select" deny" then click "Add" to add it to the list.

  • Page 53: System > Advance > Qos/Dscp

    ENGLISH System > Advance > QoS/DSCP QoS/DSCP (Quality of Server/Differentiated Services Code-point) specifies a simple mechanism for classifying and managing network traffic and provides QoS on IP networks. DSCP is a 6-bit in the IP header for packet classification purpose. The number 0~63 for Live Stream, Event / Alarm, and Management represent the ratio that the bandwidth is divided.

  • Page 54: System > Image

    System > Image Admin and operator levels can adjust the Image setting. There are 4 tabs: OSD, Preference, Advanced, and Privacy Mask System > Image> OSD In OSD tab, you can enable/disable overlaying time stamp and text title. After completing the setting, click Save to apply the new setting and Cancel to keep the new setting.

  • Page 55: System > Image > Preference

    ENGLISH System > Image > Preference In Preference tab, you can tune the IP camera white balance, change the video orientation, and adjust the brightness and contrast. White Balance: Adjust white balance value. Video Orientation: To Flip or Mirror the video on screen. D-WDR: This function is able to reduce the contrast in the view to avoid the dark zones resulting from over and under exposure.

  • Page 56: System > Image> Advanced

    System > Image> Advanced Click Default button will back to factory default setting. Shutter Time: Adjust the shutter time level to get the best image quality. Sense-UP: The main purpose of sense-up is to provide a camera technology that does not rely on artificial light to see in very low light conditions.
  • Page 57 ENGLISH [Note] When you select a number in "Shutter Time", actually the shutter time varies in a range and controlled by camera automatically. Following table shows the shutter time option and corresponding range Option Shutter Time Range (sec.) Outdoor 1/10000 ~ Selected number in "Sense-up" 1/10000 ~ 1/5 1/10 1/10000 ~ 1/10...

  • Page 58: System > Image> Privacy Mask

    System > Image> Privacy Mask For the security purpose, there are three areas can be setup for privacy mask. Click Area #(Area 1, Area 2, Area 3)button first and drag a area on the image screen. Then, click Save button to save the setting.

  • Page 59: System > Video Stream > General

    ENGLISH System > Video Stream > General Input Resolution: Select the video resolution that is the maximum resolution supported in Stream 1 and Stream 2. Please note that when changing the input resolution, the camera will need to reboot and it takes around 40 sec. When it reboots completely, it will connect to NVR automatically unless the IP address is changed.

  • Page 60: System > Video Stream > Stream1

    System > Video Stream > Stream1 Basic Mode Click Apply to save the configuration. − Resolution: There are 6 resolutions can be chosen –1280x1024, 1280x800, 1280x720, 640x480, 320x240, 176x144. . − Quality: There are 5 levels to adjust – Best, High, Standard, Medium, and Low. The higher the quality is, the bigger the file size is.
  • Page 61 ENGLISH − Video Quantitative:1(Low) ~10(High).When you select VBR setting, you can adjust the value. − Video Frame Rate: The video refreshing rate per second.. − GOP Size: It means "Group of Pictures". − Video Format: H.264 or JPEG − RTSP Path: It’s a URL address...

  • Page 62: System > Video Stream > Stream2

    System > Video Stream > Stream2 Basic Mode Click Apply to save the configuration. − Resolution: There are 6 resolutions can be chosen –1280x1024, 1280x800, 1280x720, 640x480, 320x240, 176x144. − Quality: There are 5 levels to adjust – Best, High. Standard, Medium, and Low. The higher the quality is, the bigger the file size is.
  • Page 63 ENGLISH Advanced Mode Click Apply to save the configuration. − Resolution: There are 6 resolutions can be chosen –1280x1024, 1280x800, 1280x720, 640x480, 320x240, 176x144.. − Quality: There are 5 levels to adjust – Best, High. Standard, Medium, and Low. The higher the quality is, the bigger the file size is.

  • Page 64: System > Video Stream > Stream3

    System > Video Stream > Stream3 3GPP Streaming is designed for mobile viewing. Stream 3 Setting: Enable or Disable 3GPP Streaming. 3GPP Path: It’s a URL address. [Note] To get the best mobile viewing quality, please download AVeriViewer (AndroidViewer) from To get the best mobile viewing quality, please download AVeriViewer (AndroidViewer) from the Apple App store or Google Play.

  • Page 65: System > Audio

    ENGLISH System > Audio IP camera supports 2-way audio (mono). User can send audio from IP camera while connected to a microphone to remote site; User can also send audio from remote site to IP camera’s external speaker. a. IP camera to PC: select “Enable” to start this function. b.

  • Page 66: System > Sd Card

    System > SD Card Please insert microSD/SDHC card before use it. Make sure pushing microSD/SDHC card into the slot completely.

  • Page 67: Event > Arrangement > Motion

    ENGLISH Event > Arrangement > Motion Motion Detection: IP camera allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD/SDHC card. To set up the motion area 1, click “Area 1” button. Using mouse to drag and draw the area.

  • Page 68: Event > Arrangement > Preference

    Event > Arrangement > Preference Record File: File Format: IP camera allows 3 different types of recording file to change its record size. When motion/alarm is triggered, there are 3 different types of record mode. − AVI File (With Record File Setting ) −...
  • Page 69 ENGLISH PIR setting: Enable PIR function, the camera will be triggered when it detect PEOPLE in its detection range (within 5 Meter), and then send video or snapshot to specific mail addresses, trigger the output devise, play sound, or save video to FTP/ Micro SD card/ Samba. Select a sound file if you tick "Audio out".

  • Page 70: Event > Schedule

    Event > Schedule Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. Snapshot: After enable the snapshot function; user can select the storage position of snapshot file, the Interval time of snapshot and the reserved File Name of snapshot.

  • Page 71: Event > Di/Do

    ENGLISH Event > DI/DO IP camera supports 1 input/1 output (depending on different models). When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD/SDHC card. CAUTION!! Please connect to propriety relay box to reduce the risk of electric shock &...

  • Page 72: Status Information

    Output Setting: Mode setting: OnOff Switch: Relay status is based on sensor triggered times. Time Switch: To restore the original relay status after the interval time. [Note]GPIO pin define please refer to the part of Front / Back plane & I/O port pin assignment. ALARM INPUT: Ground (G) Normal: 5V (The voltage differential from ALM_IN pin &...

  • Page 73: Network Configuration

    ENGLISH Network Configuration Configuration 1 a. Internet Access: ADSL or Cable Modem b. IP address: More than one real IP c. IP camera and PC connect to the internet d. For fixed real IP, set up the IP into IP camera and PC. For dynamic IP, start PPPoE.
  • Page 74 Configuration 2 a. Internet Access: ADSL or Cable Modem b. IP address: one real IP c. IP camera and PC connect to the internet d. Device needed: IP sharing e. Use virtual IP, set up port forwarding in IP sharing.(Please refer to Network Setting Other 1 UPnP Port Forwarding)

  • Page 75: Factory Default

    ENGLISH Factory Default 1. To recover the default IP address and password, please follow the following steps. 2. Remove power and Ethernet cable. 3. Press and hold the button and connect power and Ethernet cable to the camera again and hold for round 20 seconds for system booting.

  • Page 76: Troubleshooting

    Troubleshooting Here are some useful tips on how to solve some common problems. Problem Solution I forgot the account and password for Please refer to the manual of “Factory Default setting” FC1320-P. How can I go back to default description. setting? I recorded video file in H.264 file format Default Windows Media Player doesn’t have H.264...

  • Page 77: Appendix

    ENGLISH Appendix FC1320-P is compliant with microSD/SDHC card and to ensure recording quality, and please use memory cards over 2G and Class 4 above (Max. 32G) MicroSD/SDHC card Transcend SDHC class4 16GB Transcend SD class4 16GB Transcend SDHC class4 32GB Transcend SD class4 32GB Transcend SD class6 4GB Transcend SDHC class6 4GB...
  • Page 78 © 2013 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
  • Page 79 You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement...
  • Page 80 Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
