- Page 1 AVer FD1020 Quick User Guide...
-
Page 2: Table Of Contents
III. IP Assignment ......................10 Finding IP Camera by using “NXU Lite recording software” .......... 10 Finding IP Camera by using “AVer IPCam Utility” ............13 Using NON-DHCP Server/Router Network ..............15 Connecting the IP Camera ..................17 FCC NOTICE (Class A) ..................... 18 COPYRIGHT ........................ -
Page 3: Camera Introduction

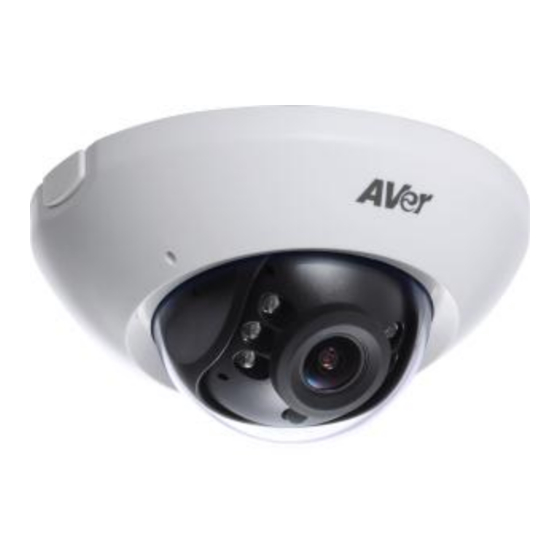

The following section introduces package contents, hardware installation, factory default reset, and SD card Compatibility List of each type camera. 1. Package Contents Item Descriptions 1. FD1020 2. Power Adapter (optional item) 3. Wall plus 4. Screw 5. CD (User’s Manual and Quick Guide, NVR software included) **If any of the above items are missing, please contact your dealer immediately. -
Page 4: Hardware Installation
Hardware Installation 1. Installation Open the camera cover by pressing the two sides as shown in the following figures:... - Page 5 Use screws to secure the camera on the ceiling or the wall. [Note] Do not lock it completely because you might need to adjust the lens angle later. Unscrew the lens to adjust the angle. After adjusting the lens,screw it tight. Repeat steps b and c as you need during the whole process.
- Page 6 Connect the Ethernet and Power adaptor. Break the cover hole carefully and plug-in the Ethernet and power adaptor. After finishing step b and c, screw tight the camera on the ceiling or wall. Close the camera cover.
- Page 7 2. Connector Instruction 3. I/O Configuration a. Connect the G (GND) & DO pin to the external relay (buzzer) device. b. Connect the G (GND) & DI pin to the external trigger device.
- Page 8 When no event occurs, the DO output is 5V (DO and GND are disconnected). When the camera detects events it will trigger and external alarm, DO output is 0V (DO and GND are connected). If you select N.O on Input sensor setting, when the switch contacts are opened, the camera input alarm will be triggered and will execute the action user has set, for example, send a snapshot to E-mail address.
-
Page 9: Factory Default
Factory Default 1. To recover the default IP address and password, please follow the following steps. 2. Remove power and Ethernet cable. 3. Press and hold the button and connect power and Ethernet cable to the camera again and hold for round 30 seconds for system booting. -
Page 10: Sd Card Compatibility List
3. SD card Compatibility List FD1020 are compliant with microSD/SDHC card and to ensure recording quality, and please use memory as below. MicroSD/SDHC card Transcend SDHC class4 32GB Transcend SDHC class10 64GB SanDisk SDHC class4 32GB SanDisk SDHC class10 64GB... -
Page 11: Monitor Setting
Monitor Setting 1. Right-click on the desktop. Select “ Properties” 2. Change “Color quality” to “Highest (32-bit)”. -
Page 12: Ip Assignment
Finding IP Camera by using “NXU Lite recording software” Finding IP Camera by using “AVer IPCam Utility” Finding IP Camera by using “NXU Lite recording software” 1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first. - Page 13 3. Click “Setup” button > Camera. 4. Click “Add IPCam” button. 5. Select “IP Camera” item.
- Page 14 IP camera’s setting; even the IP camera is not in the same IP segment. Press “OK” to back to previous screen and press”Connect” to start live view. Double-click the IP camera model that user has purchased (ex: FD1020). Please ignore ONVIF protocol selection; NXU Lite doesn’t support ONVIF...
-
Page 15: Finding Ip Camera By Using "Aver Ipcam Utility
Finding IP Camera by using “AVer IPCam Utility” 1. Use the software, “AVer IPCam Utility” to assign the IP address of the IP camera. The software is in the attached software CD. 2. Run the IPCam Utility 3. Select the proper network adapter and click [Search] to begin searching. - Page 16 5. The IE browser will open and direct you to IP camera login page. This requires IPViewer.ocx to run. If the IE ActiveX warning message appears, click to allow running the add-on. [Note] The default IP address is: 192.168.1.168 ...
-
Page 17: Using Non-Dhcp Server/Router Network
Using NON-DHCP Server/Router Network In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict. Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same. - Page 18 A quick way to access remote monitoring is to double-click on a selected IP camera in “Camera Name list” in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera. Then, please key in the default “ID” and “Password”, both of which are “admin”.
-
Page 19: Connecting The Ip Camera
IV. Connecting the IP Camera Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the ”ID” and “Password”. The default ”ID” and “Password” are both “admin”. Once connected to the IP camera, the following program interface will appear. -
Page 20: Fcc Notice (Class A)
© 2014 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice. -
Page 21: Limited Warranty
You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement... -
Page 22: Limitation Of Liability
Aver’s total, aggregate liability for damages of any nature, regardless of form of action, damages. shall in no event exceed the amount paid by you to aver for the specific product upon which liability is based. Governing Law and Your Rights This warranty gives you specific legal rights;...
