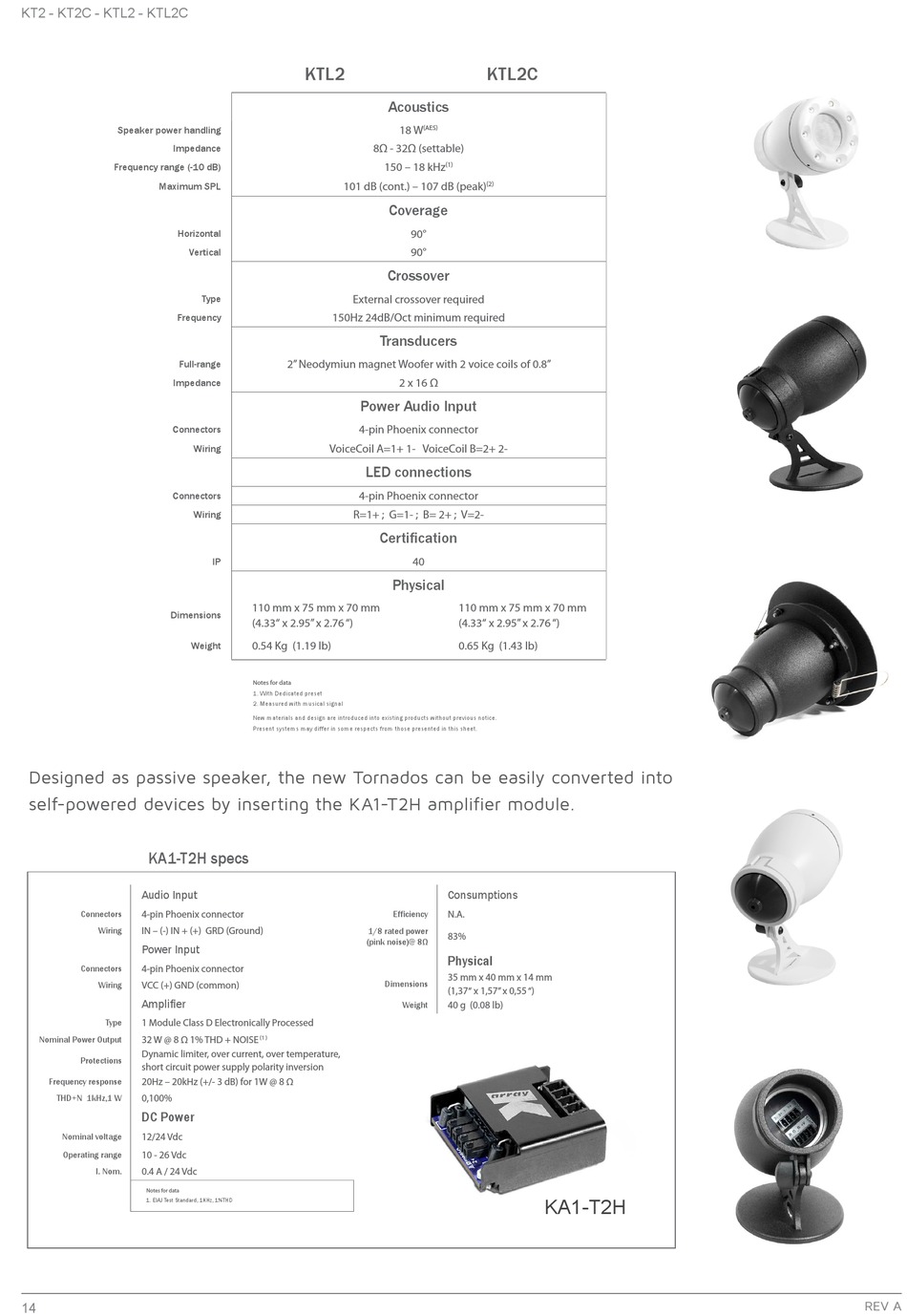

K-array KT2 User Manual page 14

KT2 - KT2C - KTL2 - KTL2C
Speaker power handling
Impedance
Frequency range (-10 dB)
Maximum SPL
Horizontal
Vertical
Frequency
Full-range
Impedance
Connectors
Connectors
Dimensions
Weight
D
ESIGNED AS PASSIVE SPEAKER
Designed as passive speaker, the new Tornados can be easily converted into
-
SELF POWERED DEVICES BY INSERTING THE
self-powered devices by inserting the KA1-T2H amplifier module.
KA1-T2H specs
Audio Input
4-pin Phoenix connector
Connectors
Wiring IN – (-) IN + (+) GRD (Ground)
Power Input
4-pin Phoenix connector
Connectors
VCC (+) GND (common)
Wiring
Amplifi er
1 Module Class D Electronically Processed
Type
32 W @ 8 1% THD + NOISE
Nominal Power Output
Dynamic limiter, over current, over temperature,
Protections
short circuit power supply polarity inversion
20Hz – 20kHz (+/- 3 dB) for 1W @ 8
Frequency response
0,100%
THD+N 1kHz,1 W
DC Power
12/24 Vdc
Nominal voltage
10 - 26 Vdc
Operating range
0.4 A / 24 Vdc
I. Nom.
Notes for data
1. EIAJ Test Standard, 1KHz, 1%THD
14
KTL2
101 dB (cont.) – 107 dB (peak)
External crossover required
Type
150Hz 24dB/Oct minimum required
2" Neodymiun magnet Woofer with 2 voice coils of 0.8"
Power Audio Input
4-pin Phoenix connector
VoiceCoil A=1+ 1- VoiceCoil B=2+ 2-
Wiring
4-pin Phoenix connector
R=1+ ; G=1- ; B= 2+ ; V=2-
Wiring
IP
110 mm x 75 mm x 70 mm
(4.33" x 2.95" x 2.76 ")
0.54 Kg (1.19 lb)
Notes for data
1. With Dedicated preset
2. Measured with musical signal
New materials and design are introduced into existing products without previous notice.
Present systems may differ in some respects from those presented in this sheet.
,
THE NEW
(1 )
KTL2C
Acoustics
18 W
(AES)
8 - 32 (settable)
150 – 18 kHz (1)
(2)
Coverage
90°
90°
Crossover
Transducers
2 x 16
LED connections
Certifi cation
40
Physical
110 mm x 75 mm x 70 mm
(4.33" x 2.95" x 2.76 ")
0.65 Kg (1.43 lb)
T
ORNADOS CAN BE EASILY CONVERTED INTO
KA1-T2 12V/24V
AMPLIFIER MODULE
Consumptions
N.A.
Effi ciency
1/8 rated power
83%
(pink noise)@ 8Ω
Physical
35 mm x 40 mm x 14 mm
Dimensions
(1,37" x 1,57" x 0,55 ")
40 g (0.08 lb)
Weight
.
KA1-T2H
REV A
