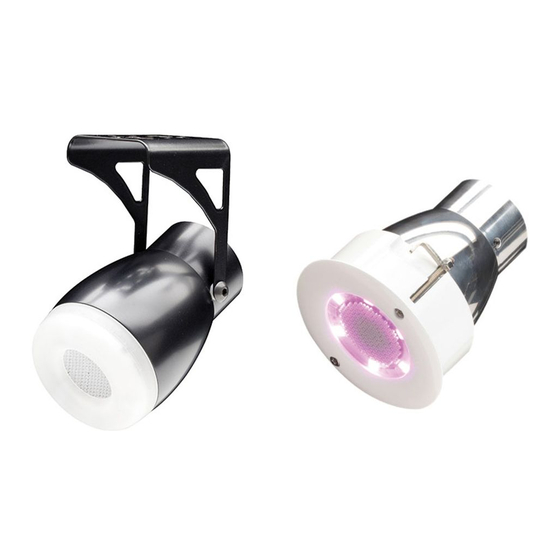

  • Page 1 KTL22 - KTL22C 2” point source compact speaker with integrated RGB LED spotlight USER MANUAL - english version KTL22C KTL22...

  • Page 3: Table Of Contents

    DECLARATION OF CONFORMITY 1. INTRODUCTION 2. APPLICATIONS 3. KEY FEATURES 4. UNPACKING 5. INCLUDED ACCESSORIES 6. PHYSICAL 7. REAR PANEL AND WIRING 8. INSTALLATION 8.1 KTL22 8.2 KTL22C 9. SERVICE 10. WARRANTY 11. POLAR RESPONSE 12. AVAILABLE ACCESSORIES KTL22 - KTL22C SPECIFICATIONS...

  • Page 5: Symbols

    SYMBOLS K-array declares that this device is in compliance with the applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling centre for such equipment.

  • Page 6: Safety

    KTL22 - KTL22C SAFETY WARNING • Install the speaker only in a location that can structurally support the weight of the unit. Doing otherwise may result in the unit falling down and causing personal injury and property damage. • Professional loudspeakers are capable of producing extremely high sound levels and should be used with care.

  • Page 7: Declaration Of Conformity

    KTL22 - KTL22C DECLARATION OF CONFORMITY This device complies with the essential protection requirements of Council Directive 89/336/EEC for the implementation of the Laws of the Member States relating to electromagnetic compatibility. This declaration applies to all specimens and manufacturing drawings which form part of this declaration.

  • Page 9: Introduction

    The speaker component is a single 30W 2” hi-efficiency neodymium element with a 32 Ohm impedance. Up to eight KTL22 can be parallel wired to a single channel of any of the KA series amplifiers.

  • Page 10: Key Features

    Please note that K-array and its distributors cannot accept any responsibility for damage to any returned product through the use of non-approved packaging.

  • Page 11: Physical

    KTL22 - KTL22C 6. PHYSICAL KTL22C 74,50 Weight 0.35 kg PRELIMINARY...
  • Page 12 KTL22 - KTL22C KTL22 97,8 66,4 Weight 0.35 kg PRELIMINARY...

  • Page 13: Rear Panel And Wiring

    KTL22 - KTL22C 7. REAR PANEL AND WIRING Included female Phoenix connectors 4. Common positive DC power (24V) for RGB LEDs . 5. Negative DC power for Green LED. 6. Negative DC power for Blue LED 1. 4-pin light controller connector.

  • Page 14: Installation

    KTL22 - KTL22C 8. INSTALLATION 8.1 KTL22 WALL MOUNTING Disassemble the bracket from the fixture’s body. Fix the bracket to the mounting surface with appropriate anchors or screws. Connect the cable to the fixture. Re-assemble the body of the fixture to the fixed bracket.
  • Page 15 KTL22 - KTL22C PENDANT MOUNTING K-KTIP K-KTIP accessories required This installation procedure may need to be carried out in a different order if you are mounting the device to an already fixed cable. In that case, instruction #3 becomes the first.

  • Page 16: Ktl22C

    KTL22 - KTL22C 8.2 KTL22C ceiling false ceiling 74,50 Make a 76 mm diameter mounting hole in the false ceiling. Attention: for a correct connection to the fixture at least 180mm of depth is required behind the false ceiling. Connect the cables coming from the amplifier and the DMX controller to the Phoenix connectors.
  • Page 17 KTL22 - KTL22C Insert the fixture in the ceiling hole, taking care that the stoppers on the sides are folded in (position A). Then, using a screwdriver, tighten the two stopper mounting- screws from position (A) until they clamp the ceiling panel (position B).

  • Page 18: Service

    KTL22 - KTL22C 9. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. They will direct you to the service centre. 2) If you are calling for service, have the serial number(s) of the unit(s) at hand for reference.

  • Page 19: Polar Response

    KTL22 - KTL22C 11. POLAR RESPONSE 8 KHz 8 KHz HORIZONTAL VERTICAL 4 KHz 4 KHz 1 KHz 1 KHz KTL22/KTL22C KTL22/KTL22C 500 Hz 500 Hz 250 Hz 250 Hz 90° 90° 120° 60° 120° 60° 150° 30° 150° 30°...

  • Page 20: Ktl22 - Ktl22C Specifications

    KTL22 - KTL22C SPECIFICATIONS KTL22 - KTL22C Acoustics Power handling 10 W (AES) Max power 30 W Impedance 32 Ω (KT22) Operating 200 Hz - 18 KHz +/- 3dB (preset dependent) frequency range Frequency range 150 HZ - 18 KHz +/- 3dB (preset dependent)
  • Page 21 KTL22 - KTL22C PRELIMINARY...
  • Page 22 KTL22 - KTL22C PRELIMINARY...
  • Page 23 KTL22 - KTL22C PRELIMINARY...
  • Page 24 UMC009AA01ENA k-array is a brand of HP Sound Equipment s.r.l. Viale Roma 7/i - 50037 San Piero a Sieve (Firenze) - Italy tel. +39 055 8487222 - fax. +39 0558487238 e-mail: info@k-array.com www.k-array.com...
