Roger Access Control System
Installation guide for PR611, PR611-VP, PR621, PR311SE
and PR311SE-BK access controllers
Firmware version: x.18.6 or newer
Document version: Rev. I
© 2016 ROGER sp. z o.o. sp.k. All rights reserved. This document is subject to the Terms of Use in their current version published at
the
www.roger.pl
website of the Roger sp. z o.o. sp.k. company (hereinafter referred to as ROGER).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Roger PR611-VP
Summary of Contents for Roger PR611-VP
- Page 1 Firmware version: x.18.6 or newer Document version: Rev. I © 2016 ROGER sp. z o.o. sp.k. All rights reserved. This document is subject to the Terms of Use in their current version published at www.roger.pl website of the Roger sp. z o.o. sp.k. company (hereinafter referred to as ROGER).
-
Page 2: Table Of Contents
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 Contents 1. Introduction ........................3 2. Description and specification ..................3 3. Installation ........................4 3.1 Terminals/wires and connection diagram ................4 3.2 LED indicators ........................5 3.3 Power supply ........................6 3.4 Connection of door lock ...................... 6 3.5 Communication with controller .................... -
Page 3: Introduction

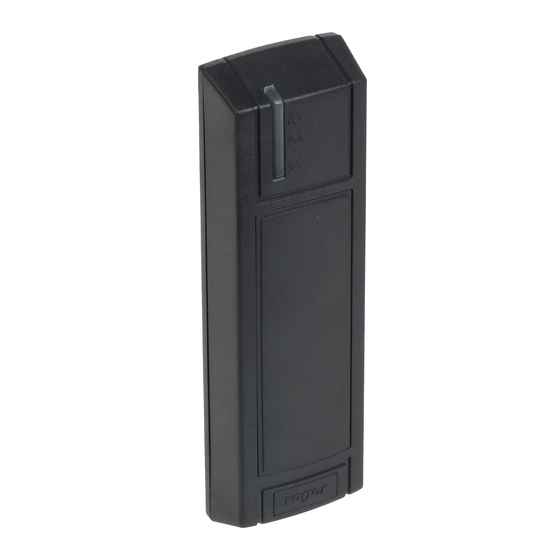

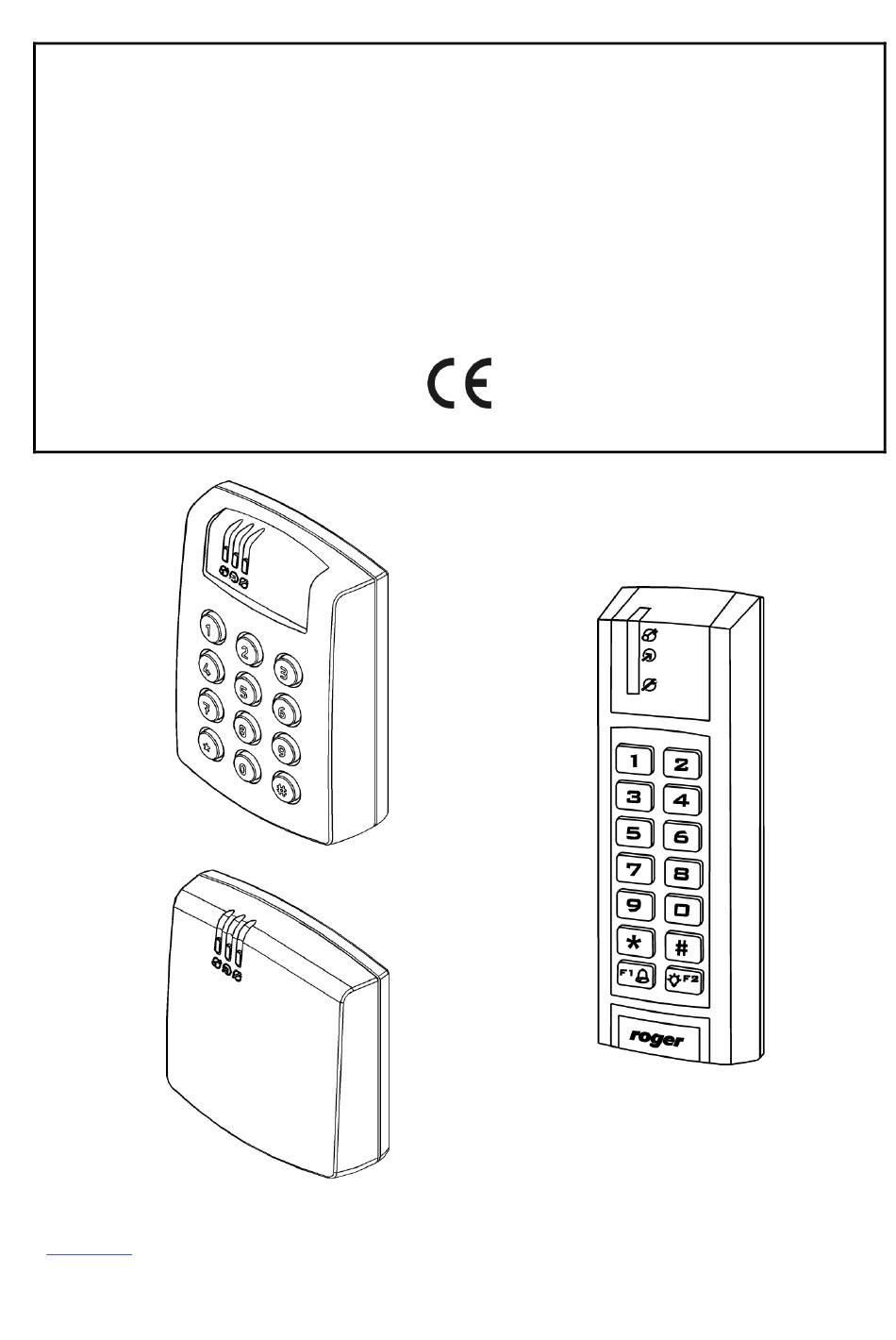

PR611, PR611-VP, PR621, PR311SE and PR311SE-BK are single door access controllers used in RACS 4 access control system. All devices are functionally identical but PR611, PR611-VP and PR311SE are equipped with keypad while PR621 and PR311SE-BK are not. Additionally, PR611-VP controller contrary to remaining ones is equipped with aluminium vandal-proof enclosure. -
Page 4: Installation
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 PR311SE/PR311SE-BK: approx. 150g Certificates 3. I NSTALLATION 3.1 Terminals/wires and connection diagram Table 2. Terminals and wires Screw terminal Wire colour Description (PR611/PR621) (PR311SE) +12V 12VDC power supply Black Ground Pink IN1 input line Blue IN2 input line White-yellow... -
Page 5: Led Indicators
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 Fig. 1 Connection diagram 3.2 LED indicators Controllers are equipped with 3 LED indicators. Their functions and colours are specified in table 3 below. Functioning of LEDs can be verified by means of included MASTER card after connection of power supply to the controller. -
Page 6: Power Supply
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 Table 3. LED indicators Symbol Name Colour Description STATUS Red/Green Armed/Disarmed Mode respectively OPEN Green Door unlocking SYSTEM Orange Various system functions and programming 3.3 Power supply Controllers require 12VDC nominal power supply. The power should be connected to the +12V line and -12V line. -
Page 7: Communication Of Controller With Peripheral Devices
CLK/DTA. RACS CLK/DTA is the addressable bidirectional communication standard developed by Roger company. Addresses of all devices connected to CLK and DTA lines must be properly configured in range of 0..15. Factory default address of peripheral devices can be changed according to procedures specified in their manuals but in majority of cases it is not necessary to modify the addresses at all. -
Page 8: Wall Mounting
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 3.8 Wall mounting Fig. 3 Installation of PR611 controller 8/16... - Page 9 PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 Fig. 4 Installation of PR621 controller 9/16...
- Page 10 PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 Fig. 5 Installation of PR311SE controller (standard enclosure base) 10/16...
- Page 11 PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 Fig. 6 Installation of PR311SE controller (additional enclosure base) 11/16...
-
Page 12: Installation Guidelines
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 3.9 Installation guidelines Install devices in such way as to ensure easy access to screw terminals and jumpers (RST, FDM) located inside the controller – see fig. 7. Prior to controller installation it is recommended to configure its address (ID number) – see 4.1 Controller address. -
Page 13: Addressing During Memory Reset Procedure
PR611 PR621 PR311SE Installation guide Rev.I.doc 2017-09-18 software addressing is ignored. In order to disable or modify FixedID it is necessary to start firmware upload procedure. Note: When FixedID is configured then controller address cannot be modified based on software addressing method. -
Page 14: Full Memory Reset Procedure (Controller Without Keypad)
(e.g. UT-2USB, UT-4DR) or via CPR32-NET network controller Commands entered with controller’s keypad More information on controllers programming can be found in the document Functional description of PRxx1 series controllers as well as in PR Master User Manual which are available at www.roger.pl. 14/16... -
Page 15: Firmware Update
2017-09-18 4.4 Firmware update The latest versions of firmware and Roger ISP software are available at www.roger.pl. In order to update firmware it is necessary to connect the device by means of RS485 bus to communication interface (UT-2USB or RUD-1) and then connect the interface to PC with installed Roger ISP software. -
Page 16: Product History
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
