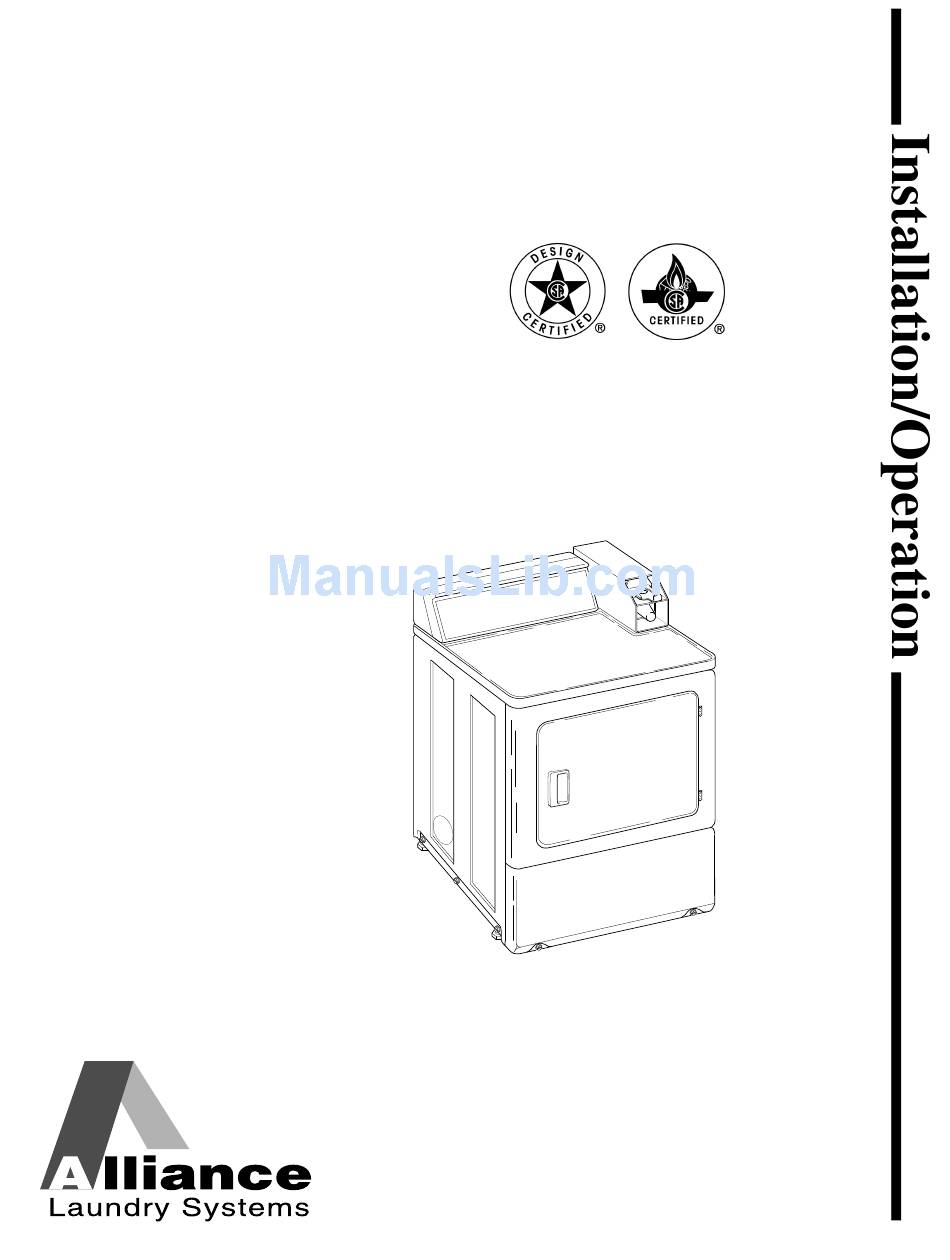

Clothes Dryers
Nonmetered and Metered
Electric and Gas Models
REMARQUE : Le guide
est rédigé en anglais et
en français. La version
française figure à la
suite de la version
anglaise.
D677I
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 512681R5
www.comlaundry.com
November 2009
