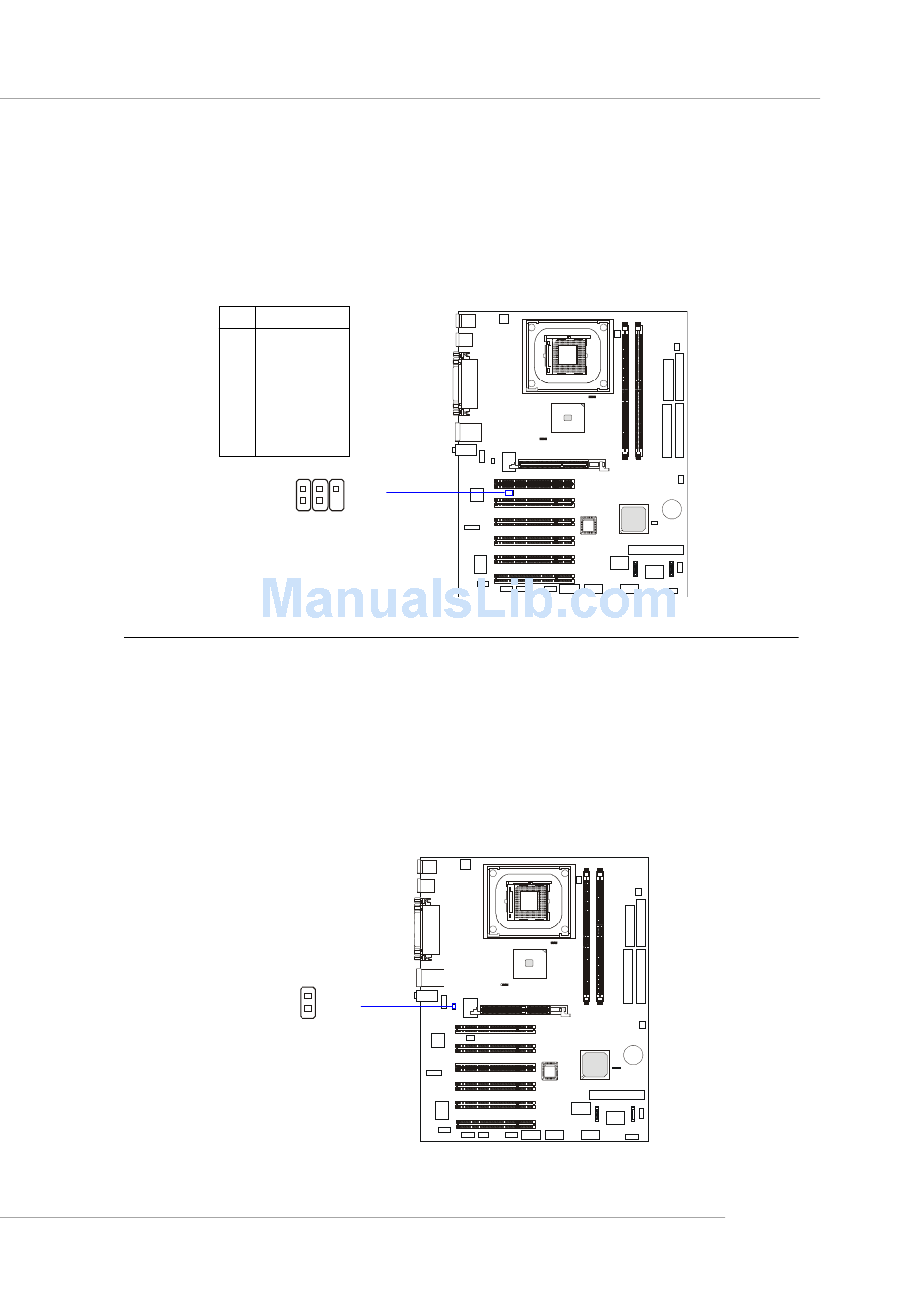

IrDA Infrared Module Header: JIR1

The connector allows you to connect to IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.
JIR1 is compliant with Intel
Pin Signal
1 NC
2 NC
3 VCC5
4 GND
5 IRTX
6 IRRX
5
6

Chassis Intrusion Switch Connector: JCI1

This connector is connected to a 2-pin chassis switch. If the chassis is
opened, the switch will be short connected. The system will record this status
and show a warning message on the screen. To clear the warning, you must
enter the BIOS utility and clear the record. JCI1 is compliant with Intel
Front Panel I/O Connectivity Design Guide.
CINTRU
GND
JCI1
®
Front Panel I/O Connectivity Design Guide.
1
2
JIR1
1
2
