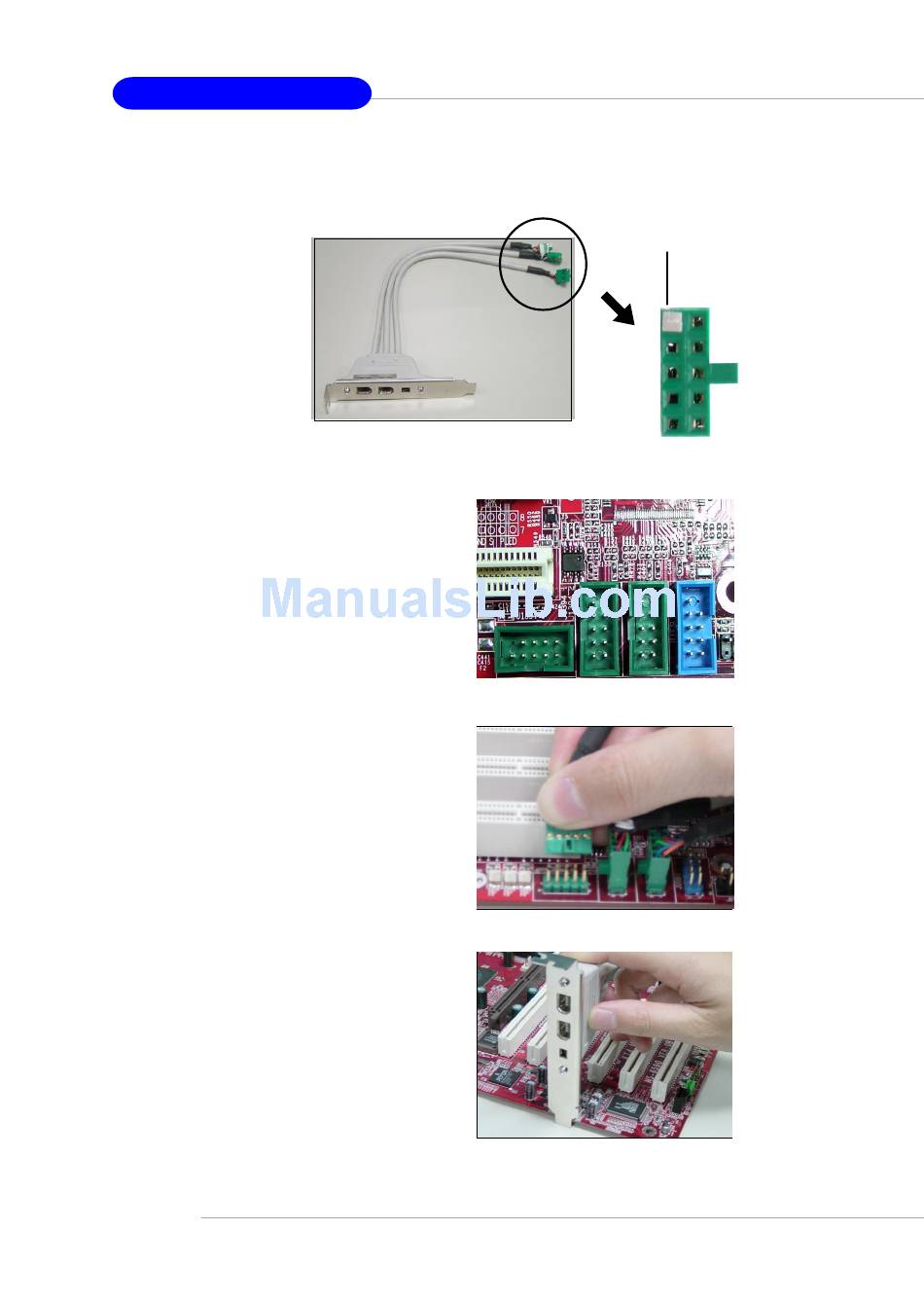

How to attach the IEEE 1394 Bracket:
1. Take out the
IEEE 1394
Bracket.
2. Locate the IEEE1394
connectors (J1394_1,
J1394_2 & J1394_3) on the
mainboard.
3. Connect the cables of the
IEEE 1394 Bracket to the
c o n n e c t o r s . A l i g n t h e
foolproof design with the
connectors to avoid mis-
inserting.
4. Place the IEEE 1394 Bracket
into the first slot of your
system case.
2-24
Foolproof
design
