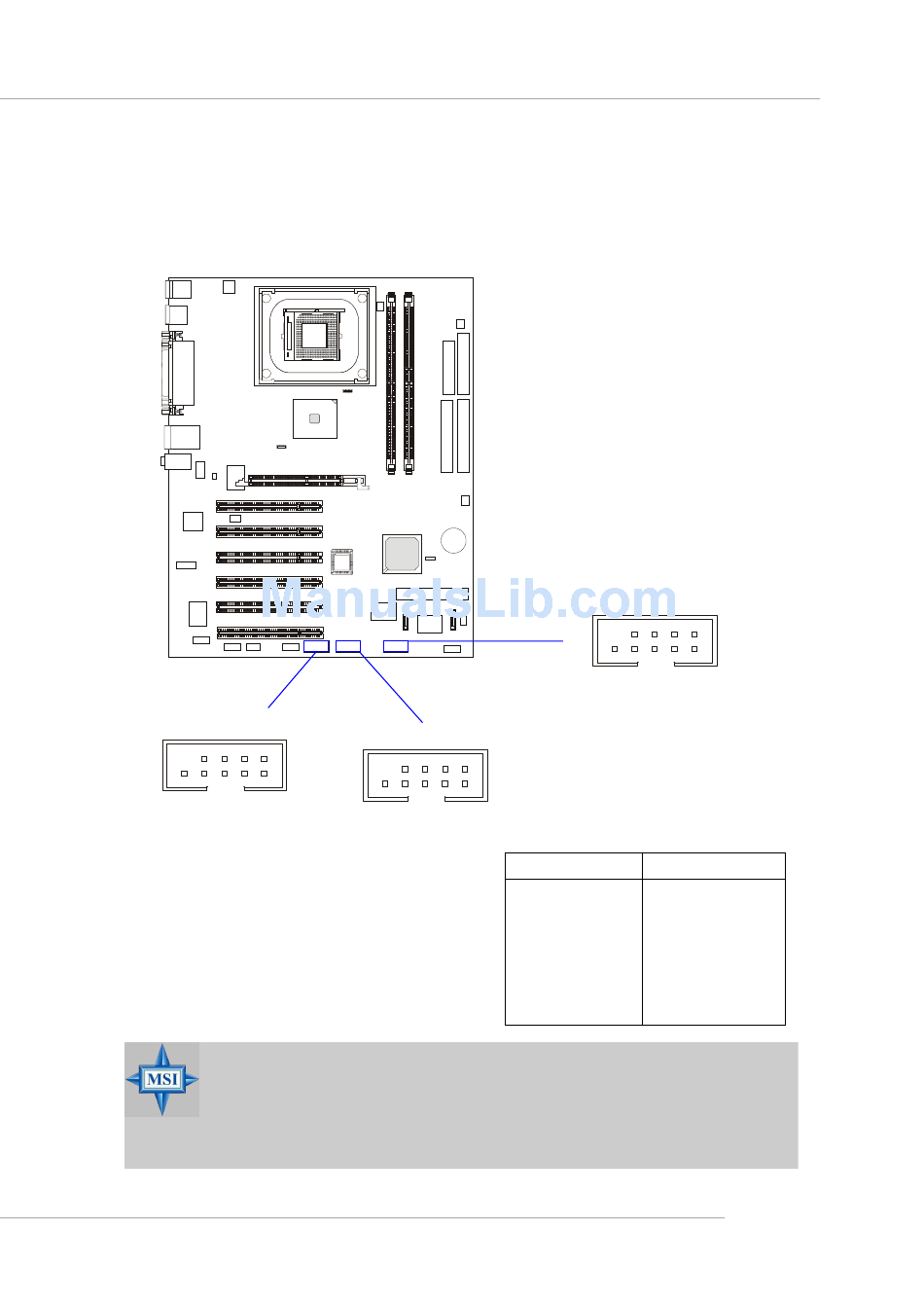

IEEE 1394 Connectors: J1394_1, J1394_2, J1394_3 (Optional)
The mainboard provides three 1394 pin headers that allow you to con-
nect optional IEEE 1394 ports.
9
1
10
2
J1394_1
MSI Reminds You...
Please note that the following installation procedures are for your
reference only. The actual layout of the IEEE1394 connectors
may look slight different from the pictures shown below.
9
1
10
2
J1394_2
PIN
1
3
5
7
9
Hardware Setup
9
1
10
2
J1394_3
Pin Definition
SIGNAL
PIN
SIGNAL
TPA+
2
TPA-
Ground
4
Ground
TPB+
6
TPB-
Cable power
8
Cable power
Key (no pin)
10
Ground
2-23
