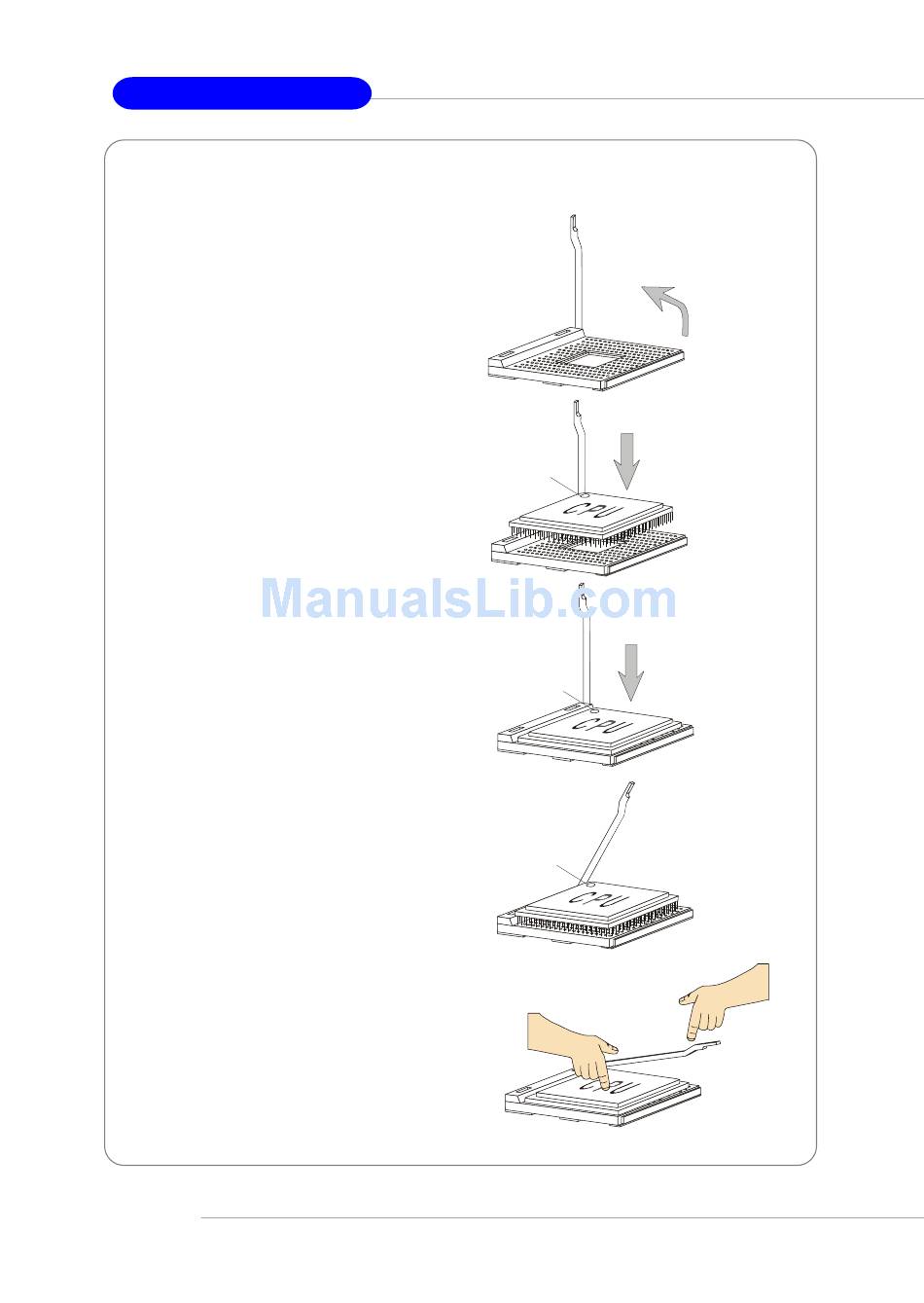

CPU Installation Procedures for Socket 478

1.
Please turn off the power and
unplug the power cord before
installing the CPU.
2.
Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the cut edge. The cut
edge should point towards the
lever pivot. The CPU can only
fit in the correct orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation
p r o c e d u r e s m a y c a u s e
permanent damages to your
mainboard.
5.
Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
m a k e s u r e t h e C P U i s
properly and completely
embedded into the socket.
2-4
Open Lever
Sliding
90 degree
Plate
Dot / Cut edge
Correct CPU placement
Dot / Cut edge
Dot / Cut edge
Incorrect CPU placement
Press down
the CPU
O
X
Close
Lever
