This section shows the status of your CPU, fan, overall system status, etc.
Monitor function is available only if there is hardware monitoring mechanism
onboard.
CPU Warning Temperature
This item is used to specify a thermal limit for CPU. If CPU temperature
reaches the specified limit, the system will issue a warning which allows you
to prevent the CPU overheat problem. Settings: Disabled, 50
o
o
o
127
F, 56
C/133
F, 60
Current System/CPU Temperature, SYSFAN1/PSFAN1/CPUFAN1,
Vcore, +1.80V, Vio, +5V, +12V, -12V, -5V, VBAT(V), 5VSB(V)
These items display the current status of all of the monitored hardware de-
vices/components such as CPU voltages, temperatures and all fans' speeds.
Chassis Intrusion Detect
The field enables or disables the feature of recording the chassis intrusion
status and issuing a warning message if the chassis is once opened. To clear
the warning message, set the field to Reset. The setting of the field will auto-
matically return to Enabled later. Settings: Enabled, Reset, Disabled.
Shutdown Temperature
When the processor reaches the preset temperature, the ACPI-aware system
will be shut down. Settings: Disabled, 60
o
o
75
C/167
F.

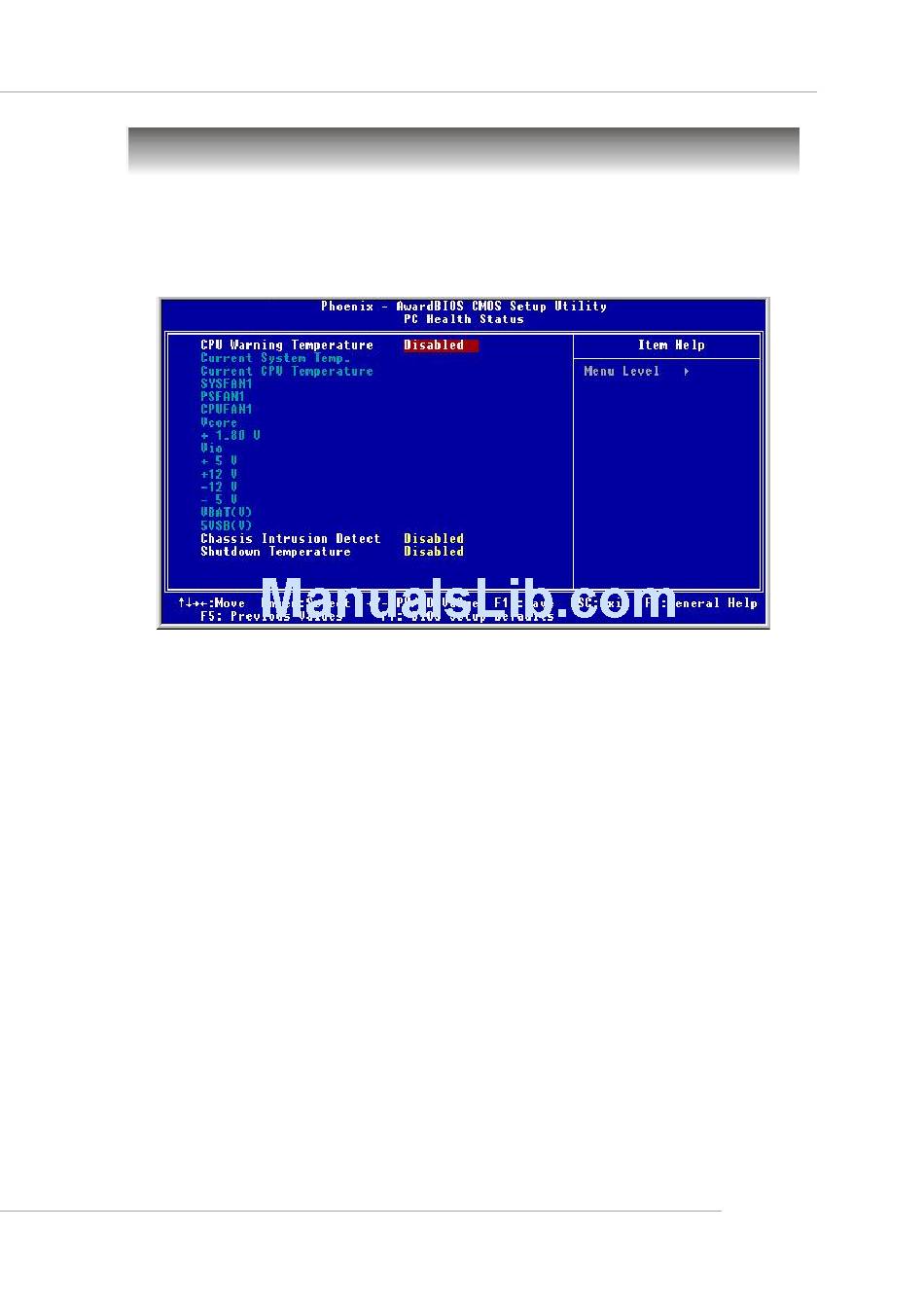

PC Health Status
o
o
o
o
C/140
F, 63
C/145
o
C/140
o
C/122
o
o
F, 66
C/151
F and 70
o
o
o
F, 65
C/149
F, 70
BIOS Setup
o
o
F, 53
C/
o
o
C/158
F.
o
o
C/158
F,
3-25
