CONDENSED WATER

(only applies to condenser tumble dryer)

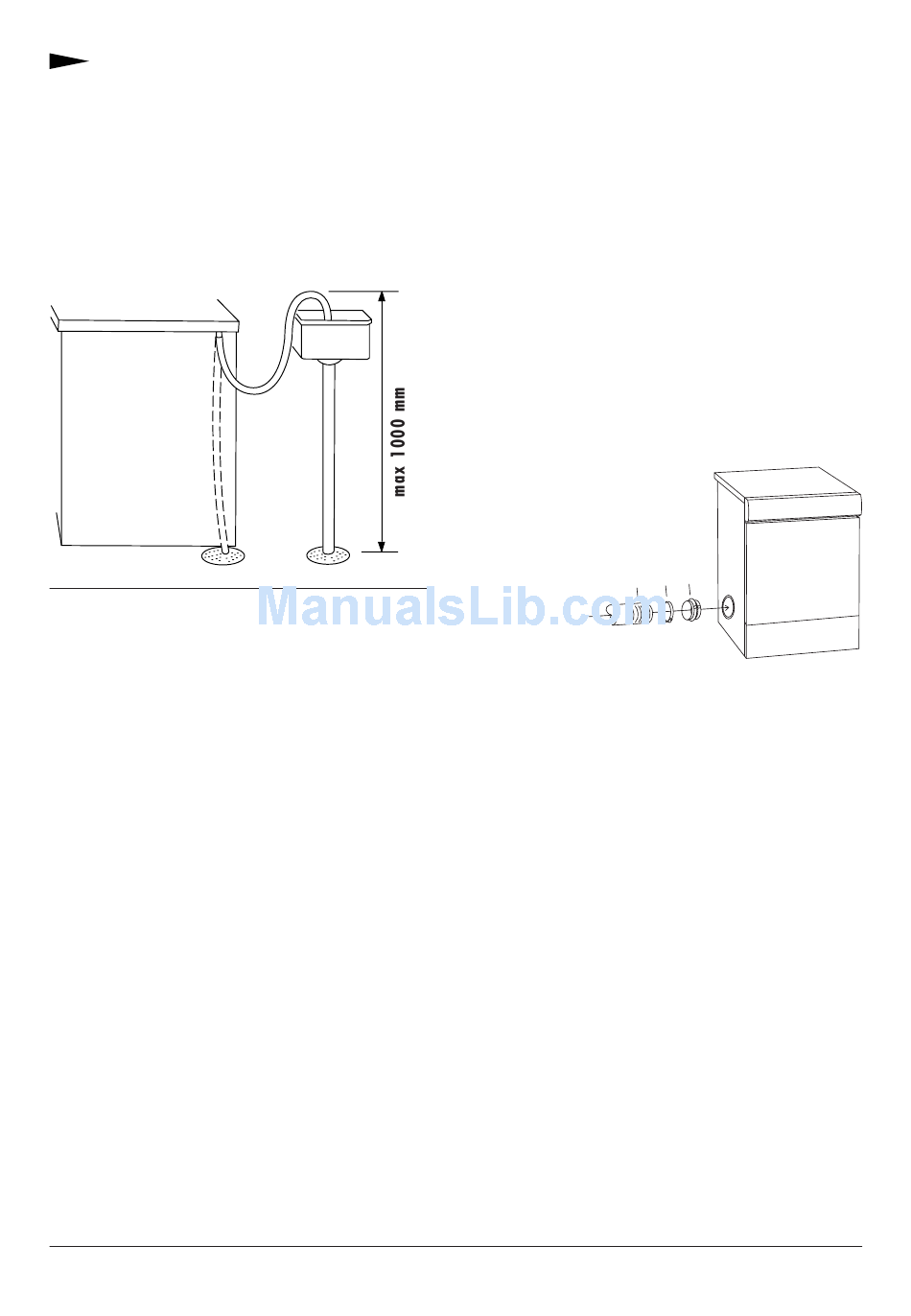

The machine is supplied with a 2.0 metre-long
drain hose. Use this to remove the condensed
water.
NOTE!
It is important that you use the new rubber
hose that is supplied, not an old hose.
TUMBLE DRYER
24

VENTING

(only applies to venting tumble dryer)
The exhaust air from the tumble dryer must be
led to a ventilation duct or a wall outlet using
the accompanying vent hose.
Connecting to tumble dryer
The tumble dryer can be vented in three ways:
from the rear, from the right side or from the
left side. One of the holes is open when the
dryer is delivered. The
other two are fitted with
covers.
The tumble dryer is
supplied with an
3
adapter (1),
a
plastic
collar (2) and a vent hose (3).
Connect the vent hose as follows:
1. Slide the vent hose over the end of the adap-
ter and secure with the plastic strap.
2. Remove the plastic cover from the hole if you
intend to connect the hose to a hole other than
the one that is already open.
3. Insert the end of the adapter in the hole.
4. Fit the cover to the open hole.
1
2
MECHANICAL INSTALLATION
