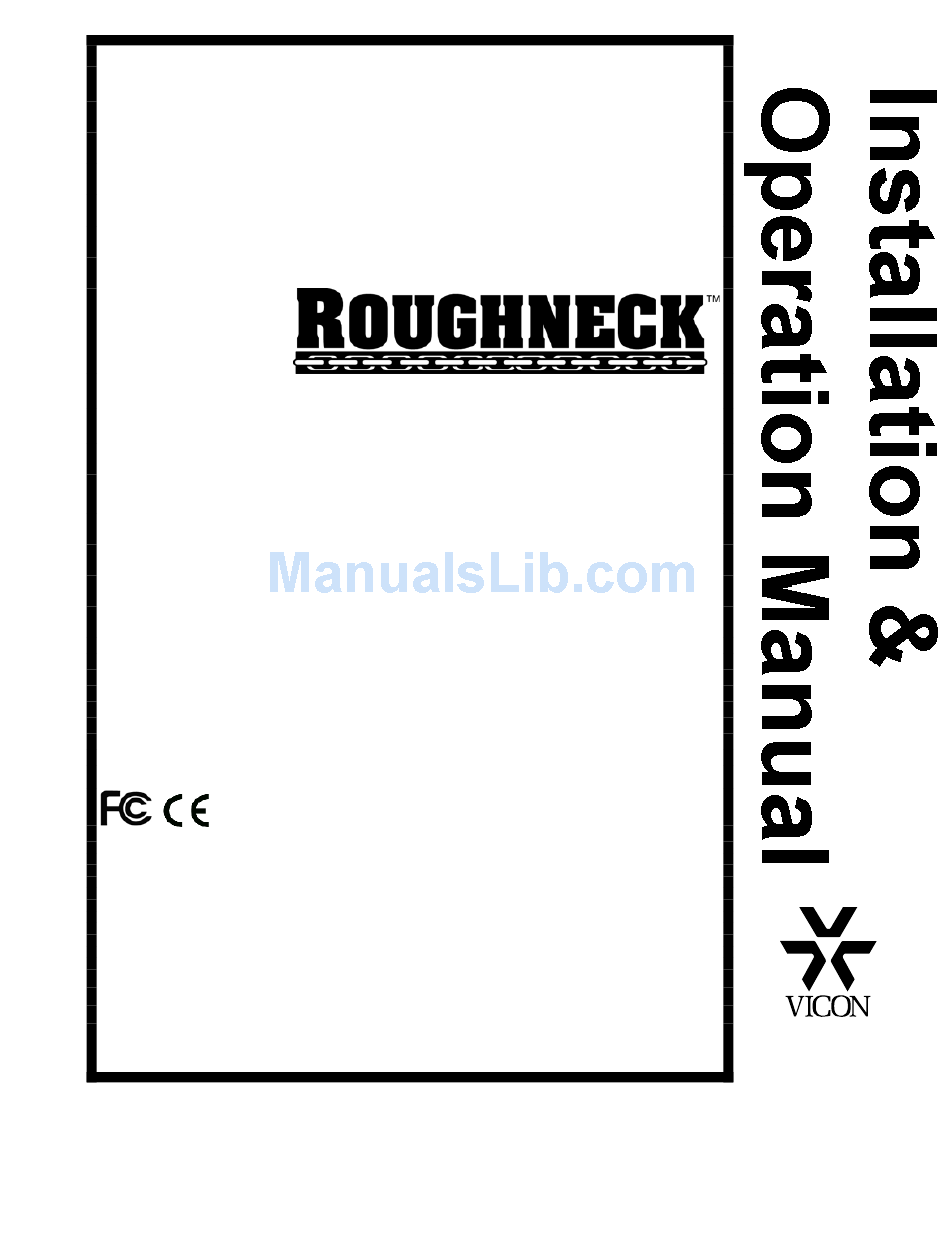

XX137-16-00
V910 IMPACT-RESISTANT
DOME CAMERAS
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet
your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in life-critical
situations and must not be used for this purpose.
Copyright © 2008 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Roughneck is a trademark and ViconNet and Kollector are registered trademarks of Vicon Industries Inc.
ExView is a trademark of Sony Corporation.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489 566300
WEB: www.vicon-cctv.com
Vicon part number 8009-8137-16-00
Rev 1208 Section 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROUGHNECK V910 and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon ROUGHNECK V910

Summary of Contents for Vicon ROUGHNECK V910

  • Page 1 V910 IMPACT-RESISTANT DOME CAMERAS Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 3: Fcc Notice

    FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
  • Page 4 The product has been dropped. 6. Attachments - Use only UL Listed Vicon recommended The product shows a significant change in performance. attachments to prevent unit damage and personal injury.

  • Page 5: Table Of Contents

    Maintenance ........................21 Care and Cleaning of Lower Dome......................21 Shipping Instructions .......................22 Reference...........................23 Coaxial Cable Recommendations ......................23 Twisted-Pair Cable ............................24 Network Cable ..............................25 Technical Information .......................26 Vicon Standard Equipment Warranty ................29 2BContents • i XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 6: Quick Installation

    Quick Installation For complete detailed instructions on how to install the V910, read the Installation section. Installation Diagram ii • 3BQuick Installation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 7: Introduction

    Refer to Table 1 for a complete listing of models. The Roughneck V910 IP Camera Dome is a powerful IP video source for a complete digital video management system based on ViconNet Version 4 software. It is fully compatible with all ViconNet systems and is remotely managed and controlled from ViconNet workstations and Kollector Elite recorders.
  • Page 8 (ver. 4) (LAN) video/data transmission. NTSC/PAL. *Note: Nominal power and current levels are calculated @ 24.0 VAC input line voltage. Maximum power and current levels are calculated @ 29.0 VAC input line voltage. 2 • 4BIntroduction XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 9: Installation

    Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspection for Visible Damage Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the carrier’s freight bill.
  • Page 10 MAC Address (IP Versions Only) 4 • 5BInstallation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 11 Figure 1 Exploded View 5BInstallation • 5 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 12: Accessory Kit

    Accessory Kit There is an accessory kit included with all configurations of Roughneck V910. The table below lists the contents. Description Quantity Tamperproof driver bit, ¼ hex T-15 (to remove tamperproof screws) Pipe sealant tape (to seal pipe fitting to housing)
  • Page 13 NOTE: Failure to thoroughly coat threads will result in moisture entering the housing and eventual failure of the unit. Note: For outdoor installations, Vicon recommends that the vent plug should only be used if fogging conditions exist. Additionally, if the side cable access hole is used, the base must be mounted so the hole is pointed directly downward.

  • Page 14: Cable Connections

    Connect one end of this cable to J4 and the BNC connector to the camera. Refer to Figure 4B. 8 • 5BInstallation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 15 Additionally, there are two jacks provided for audio, JP2 (MIC) for Audio IN and JP1 (SPK) for Audio OUT. At this time, JP1 is not available. Figure 4C Camera/Lens PC Board (LAN version) 5BInstallation • 9 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 16: Camera Power Connections

    Wiring Connections - ViconNet Board Camera Power Connections Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source. Voltage irregularities such as surges, drops, and interruptions can affect the operation of your equipment and, in severe cases, damage certain components. Vicon strongly recommends the use of line conditioners, voltage regulators, and uninterruptible power supply (UPS) systems.

  • Page 17: Heater Connections

    Repeat this procedure as necessary until the lens is focused properly with the dome in position. Then proceed to Final Installation. 5BInstallation • 11 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 18 Turning the potentiometer clockwise opens the iris wider, allowing more light. Figure 6 Location of DIP Switch and Autoiris Potentiometer 12 • 5BInstallation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 19: Final Installation

    Workstation capabilities such as processing speed, disk write speed and display card strength. • Storage size and location types including local Workstation recording, attached SCSI RAID and integrated NAS/SAN devices. 5BInstallation • 13 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 20: Configuring The Network Settings

    Although the ViconNet software does not limit the number of Groups and Users that can be created, the Roughneck V910 Camera Dome has Users and Groups limitations. For ViconNet version 4, the dome can support the first 20 Groups (including Administrators and Guests) and the first 100 Users.
  • Page 21 Note: You MUST click the Select button to add the unit to the list; verify that it is added to the list. 5. The selected unit appears on the Selected unit section on the top of the screen and settings can be changed. 5BInstallation • 15 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 22 (Camera should always receive the same IP address from the DHCP server.) Unit Install TAB The Install TAB allows the user to install/upgrade newer versions. Choose the correct version and click Install to send to the selected unit. 16 • 5BInstallation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 23: Advanced Tab

    Loading of application is disabled. The Disable load button allows the pausing of the application load in case of software issues while still permitting communication via VNSetup; the Enable load button resumes the application load. Advanced 5BInstallation • 17 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 24 VOX Off Threshold VOX Silence Period – Defines the time between reaching VOX OFF level and the actual audio turns off. Default setting is 5000 ms. Function li VOX Sile Period 18 • 5BInstallation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 25: Viconnet (Ip/Lan) Version Operation

    The following functions are supported by the ViconNet system through a workstation, recorder or server. 1. System macros can be configured to view and record the dome’s video. In addition, within macros, alarms can be sent and remote macros triggered. 5BInstallation • 19 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 26 Refer to the most recent version of the ViconNet workstation manual XX113 for complete information on operation. A copy of the manu al can be found on the CD included. 20 • 5BInstallation XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 27: Operation

    When power is applied to the camera, the Rough neck V910 views the selected scene. aintenance The Roughneck V910 Impact-Resistant Cameras require no scheduled maintenance except for the occasional cleaning of the lower dome. Care and Cleaning of Lower Dome The inside surface of the smoked (gray-tinted) dome is easily scratched.

  • Page 28: Shipping Instructions

    Use the following procedure when returning a unit to the factory: ation (R.A.) at one of the locations listed below. Record the name 1. Call or write Vicon for a Return Authoriz of the Vicon employee who issued the R Vicon Industries Inc.

  • Page 29: Reference

    Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms.

  • Page 30: Twisted-Pair Cable

    Twisted-Pair Cable Caution: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded or solid conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either steel or aluminum stranded conductor because these do not transfer signals effectively for long distances.

  • Page 31: Network Cable

    Network Cable Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. aterials se pure copp er stranded conductors to obtain a low DC resistance. The preferred insulation and cable jacket is Polyvinyl chloride (PVC).

  • Page 32: Technical Information

    Relay: 3-pin screw terminal. *Note: Nominal power and current levels are calculated @ 24.0 VAC input line voltage. Maximum power and current levels are calculated @ 29.0 VAC input line voltage. 26 • 10BTechnical Information XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 33 Video Bandwidth: 1.7 Mbps (per video strea m), nom. SOFTWARE OPERATION (Vico nNet) Network Setup: Standard network protocol typ e using IP addressing scheme and separate PC application software. 10BTechnical Information • 27 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 34 -40 to 150° F (-40 to 65° C). Storage Humidity: Up to 90% relative, noncondensing. Wind Load: Heavy r ain or snow driven by winds up to 80 mph. (Not evaluated by UL) 28 • 10BTechnical Information XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...

  • Page 35: Vicon Standard Equipment Warranty

    V910A-CA/-C/V910-266V3/- 2.6 - 6 varifocal w ith autoiris 106° - 47.6.4° 8.2°- 35.8 ° V910AT-CA/-C V910A-DN/V910A-DN-C/ 2.6 - 6 varifocal with autoiris 82.05° - 38.26° .32°- 28.6 6° V910-DNV3/V910-DNV3-C 10BTechnical Information • 29 XX137-16-00 Rev 1208 Roughneck V910 Dome Cameras...
  • Page 36 Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions:...
  • Page 37 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Germany vin-videotronic infosystems gmbh...
