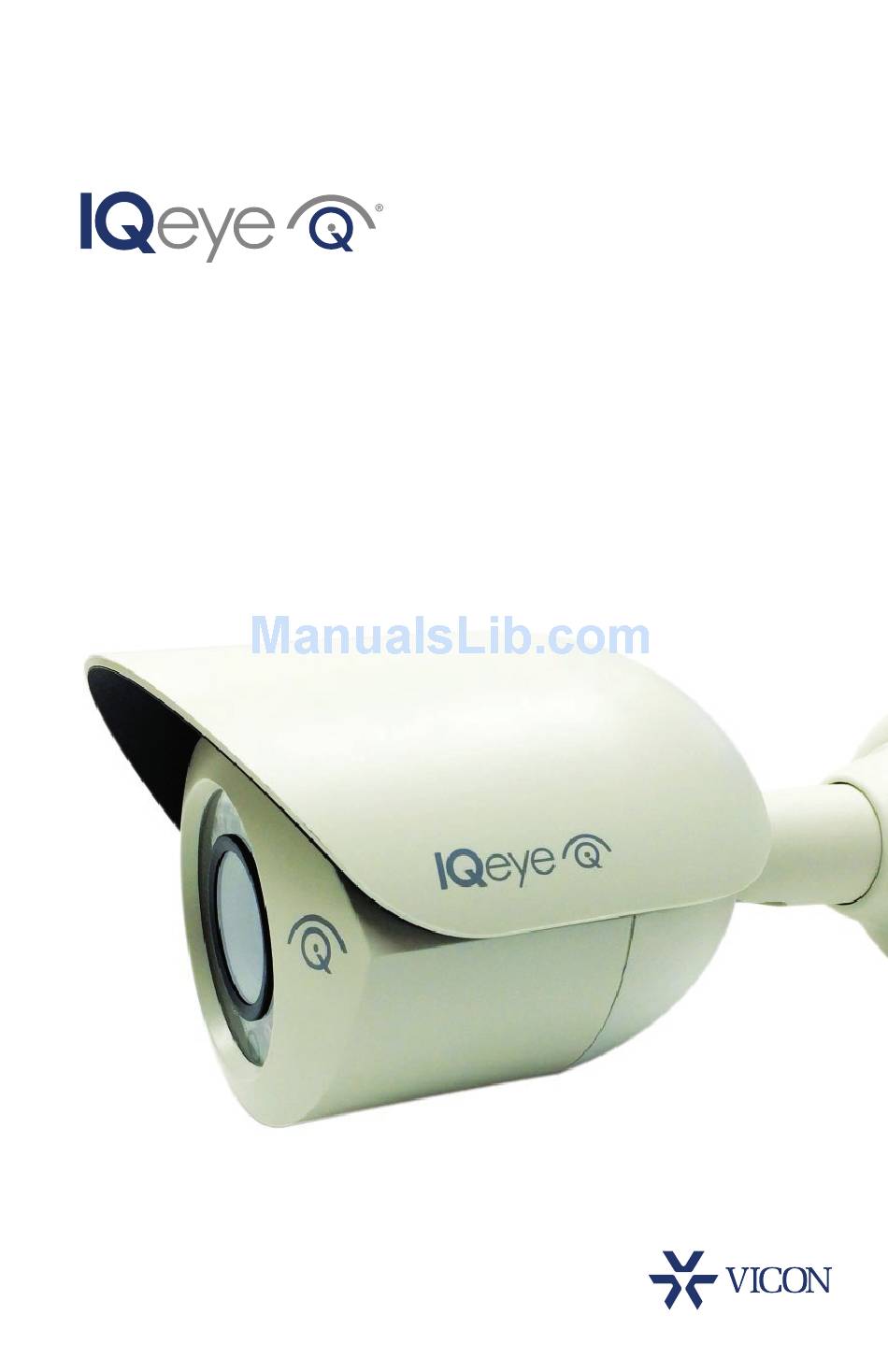

- Page 1 IQeye R5 Series IP Bullet Camera Installation and Operating Instructions...
-
Page 2: Table Of Contents
Contents Unpacking Service Description Installation Assembly Parts List Mounting Options Removal of Housing Cover Mounting the Camera Assembly Connect Camera Camera Positioning Focus Complete the Bullet Camera Installation PC Configuration of R5 Series Factory Reset... -
Page 3: Unpacking
4 Installation NOTE: This manual describes how to install the IQeye R5 Series camera system, and details interior/ exterior wall and ceiling surface mounting options. Installations should be performed by qualified service personnel only in accordance with local and national code(s). -
Page 4: Assembly Parts List
5 Assembly Parts List The following depicts the parts included (Figure 5.1): 1. R5 Series camera assembly 2. R5 Series sunshield Figure 5.1 6 Mounting Options The R5 Series camera is designed to be used in one of the following configurations. -
Page 5: Removal Of Housing Cover
In addition, follow local regulations and laws that may have specific requirements governing the installation of security equipment on a ceiling tile surface. Vicon also strongly recommends the use of a ceiling tile brace and other mounting hardware... -
Page 6: Connect Camera
9 Connect Camera 1. Optional: Insert the Micro SD card (not supplied) in Micro SD card slot. 2. Route and connect the Power-over-Ethernet cable (and 12V DC cable if required) to the appropriate connector port in Figure 9.1. Micro SD card slot Ethernet (PoE) Connector 12V DC Power Connector Figure 9.1... -
Page 7: Complete The Bullet Camera Installation
IP address using Automatic Private IP addressing. A static IP address can be configured using either IQfinder or IQmanager. 1. Download and install IQfinder from the Vicon website. Launch and scan for camera on the newtork by clicking the refresh button. The detected cameras will be displayed in the IQfinder window. -
Page 8: Factory Reset
NOTE: The default username is “root” and the default password is “system”. For additional information and technical documents, please visit www.vicon-security.com. 14 Factory Reset If you need to reset the camera for any reason: 1. Press and hold the “Reset” button for 10 seconds as illustrated in Figure 14.1. -
Page 9: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 10: Vicon Standard Equipment Warranty
“autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 10. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. NOTE: •... - Page 11 (f) to consumables (such as storage media or batteries) (g) to products that have been purchased “as is” and Vicon the seller or the liquidator expressly disclaim their warranty obligation pertaining to the product, (h) to any non-...
- Page 12 THE TERMS OF THIS WARRANTY APPLY ONLY TO SALES MADE WHILE THIS WARRANTY IS IN EFFECT. THIS WARRANTY SHALL BE OF NO EFFECT IF AT THE TIME OF SALE A DIFFERENT WARRANTY IS POSTED ON THE COMPANY’S WEBSITE, WWW.VICON- SECURITY.COM. IN THAT EVENT, THE TERMS OF THE POSTED WARRANTY SHALL APPLY EXCLUSIVELY.
