OPERATING GUIDE

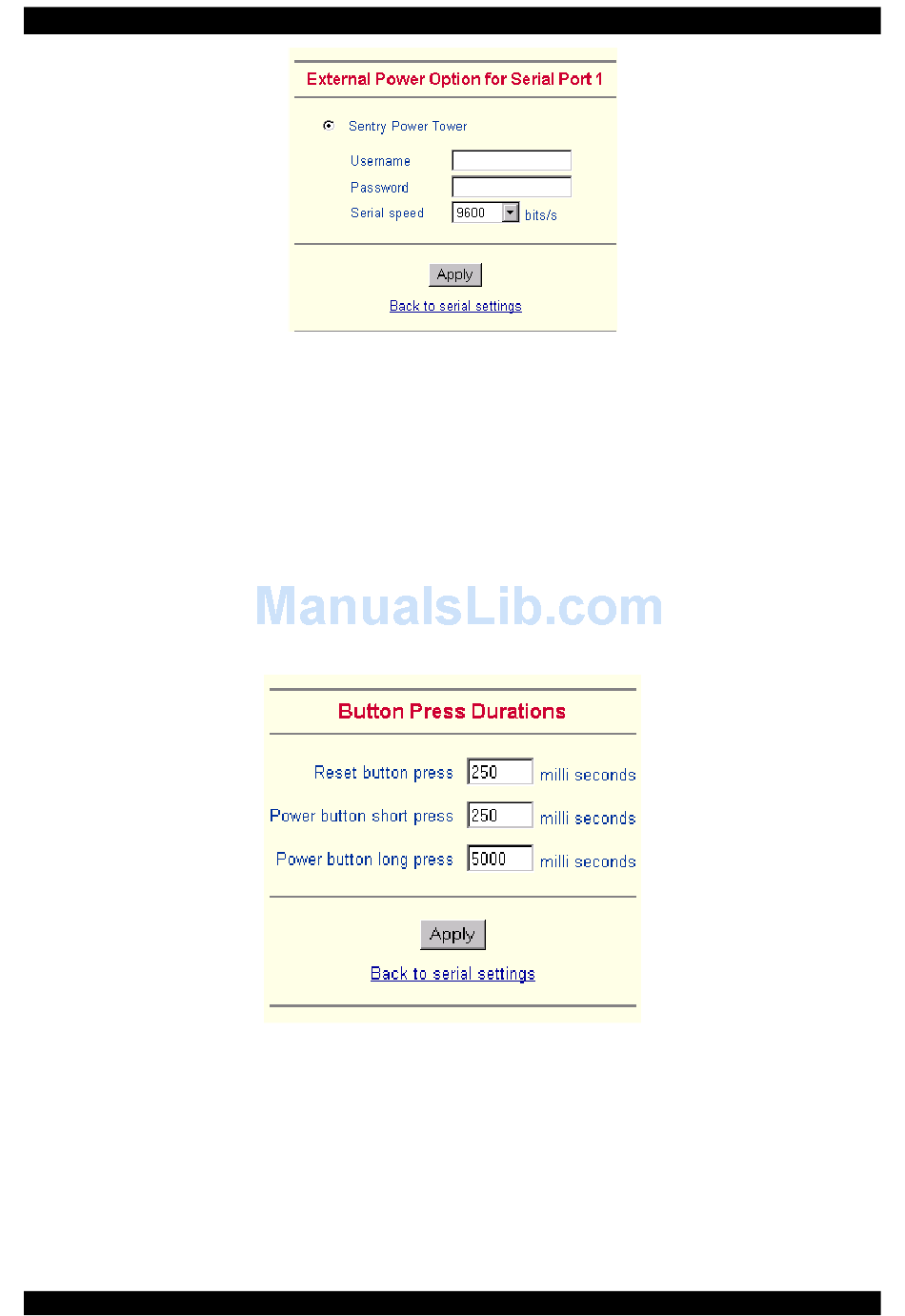

Figure 23 External Power Option for Serial port 1 window

Serial Port 2

This port provides the power control options, see page 18. Choose a suitable
setting and fill in additional required options. Smart 16 IP supports the following:
Internal Power Option - This option gives access to the ATX power and reset
functions of a single connected system. You can change the duration of each
button press. To do so, click Change button press durations. The box below
appears. Adjust the time as desired.
Figure 24 Button Press Durations box
External Power Option
To configure the External Power Option connected to Serial port 2, click change
external power switch option.
SPC 800/1600 - Using the Avocent SPC, switch power for more than one
TM
system connected to Smart 16 IP through a KVM switch. To use this device enter
.
36
