SINGLE SYSTEM SETUP
Receiver Connections
NOTE: If you are installing multiple ULXP4 Professional systems, or systems with multiple ULXP4 receivers, refer
also to the Advanced Programming section of this manual.
1.
Plug the dc power supply into the power connector on the back of the receiver
end of the power supply into an electrical outlet.
2.
Attach the two antennas to the ANTENNA connectors, as shown in Figure 5. The ULXS4 is supplied with1/4 wave anten-
nas; the ULXP4 is supplied with 1/2 wave antennas.
ULXS4
ULXP4
3.
Connect audio cable(s) (not supplied) from the audio output(s) to the audio input(s) of your audio system, mixer and/or
amplifier, as shown in Figure 6.

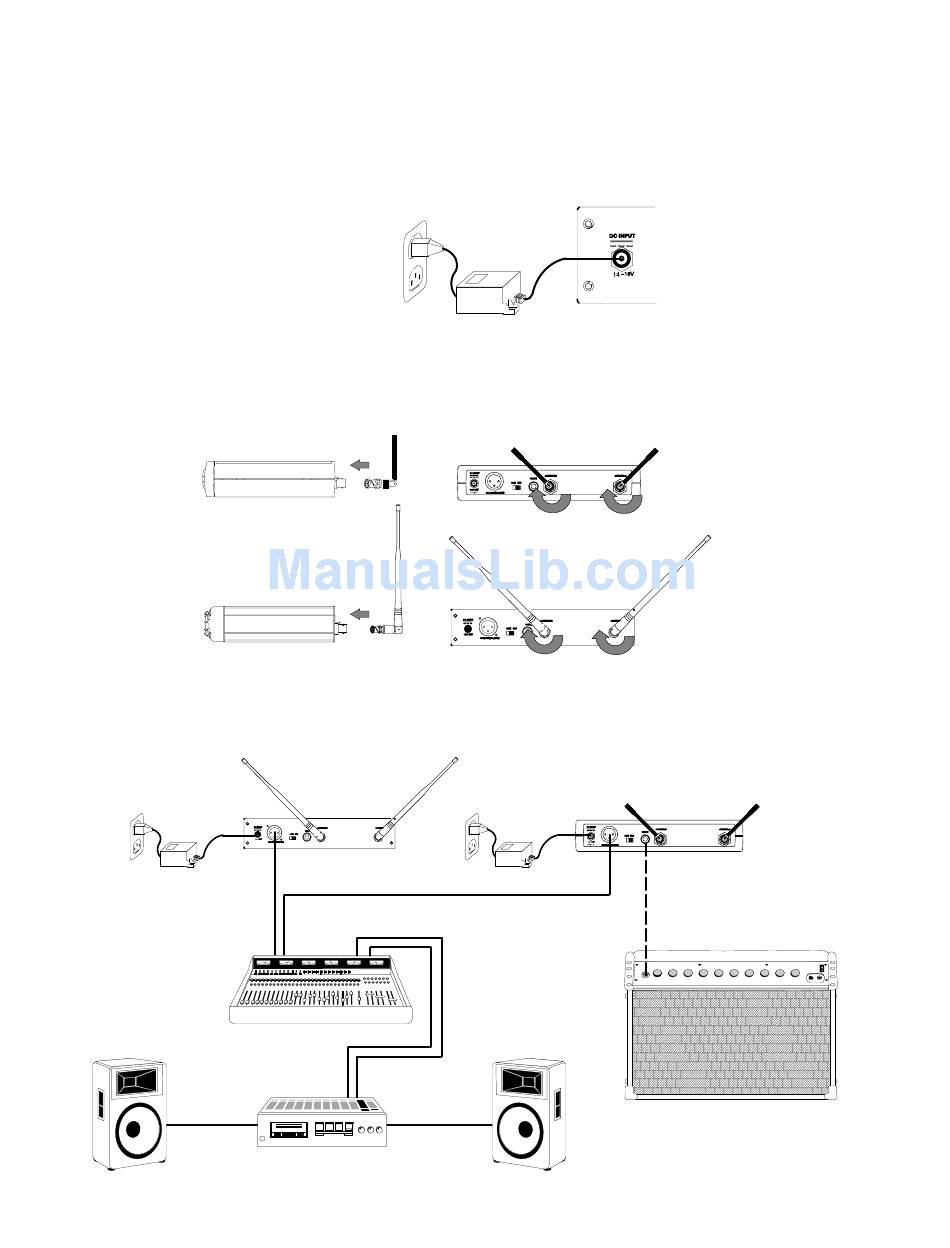

FIGURE 4
FIGURE 5
ULXP4
FIGURE 6
6
. Connect the other
, as shown in Figure 4
ULXS4
