©2013 Shure Incorporated
27A20228 (Rev. 2)

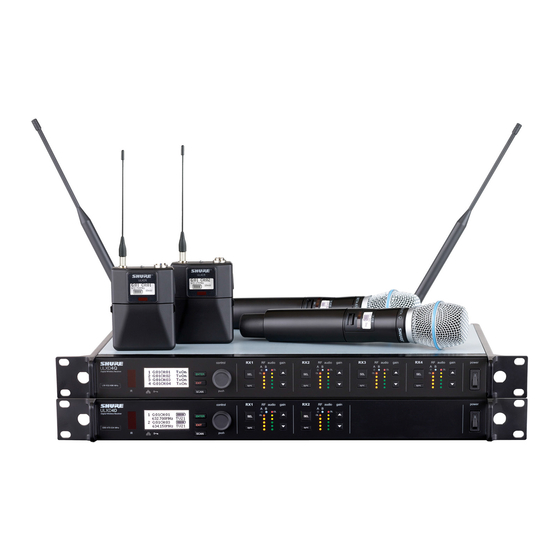

ULX-D Digital Wireless Microphone System
ULX-D
ULXD4D Dual Receiver
ULXD4Q Quad Receiver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULX-D and is the answer not in the manual?

Questions and answers

Related Manuals for Shure ULX-D

Summary of Contents for Shure ULX-D

  • Page 1 ULX-D ULXD4D Dual Receiver ULXD4Q Quad Receiver ULX-D Digital Wireless Microphone System ©2013 Shure Incorporated 27A20228 (Rev. 2)

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been READ these instructions.

  • Page 3: General Description

    A breakthrough in wireless audio quality, Shure digital processing enables ULX-D to deliver the purest reproduction of source material ever available in a wireless system, with a wide selection of trusted Shure microphones to choose from. Extended 20 Hz – 20 kHz frequency range and flat response captures every detail with clarity, presence, and incredibly accurate low end and transient response.

  • Page 4: Quick Start Instructions

    Quickstart Instructions control audio gain EXIT 45° 1-G: 01CH:03 TxOn audio gain ENTER control 2-G: 01CH:06 TxOn 3-G: 01CH:08 TxOn EXIT ENTER GROUP SCAN 4-G: 01CH:12 TxOn SCAN 150 mA line line line line sync SCAN push EXIT sync SCAN push power EXIT...

  • Page 5: Front Panel

    ② Network Icon • Off = No RF connection between the receiver and transmitter Illuminates when the receiver is connected with other Shure devices on the Note: the receiver will not output audio unless one blue LED is illuminated. network. IP Address must be valid to enable networked control.

  • Page 6: Advanced Transmitter Features

    ▼▲ Use to scroll through menu screens and to change param- eter values ⑦ Battery Compartment Requires Shure SB900 rechargeable battery or 2 AA batteries. ⑩ Integrated Antenna ⑧ AA Battery Adapter For RF signal transmission. • Handheld: rotate and store in the battery compartment to use a ⑪...

  • Page 7: Menu Screens

    ④ Battery Runtime Indicator The following information cycles when a transmitter is tuned to the receiver's frequency: • Shure SB900 battery: runtime is displayed in hours:minutes remaining • Transmitter Type • AA Batteries: runtime is displayed with a 5-bar indicator •...

  • Page 8: Installing The Battery Contact Cover

    Batteries The transmitter runs on two AA batteries or the Shure SB900 rechargeable battery. Use the included AA battery adapter when using batteries other than the Shure SB900. 95A15842 ULXD2 Bodypack: Remove the adapter when using the Shure SB900 SB900...

  • Page 9: Scan And Sync

    3. Press ENTER to save changes. Multiple System Setup A setup using networked receivers is the fastest and easiest way to distribute the best open channel to each system. See Networking ULX-D Receivers for networking details. Note: Networked receivers must all be within the same frequency band.
  • Page 10 Setting Receiver Gain The receiver gain control sets the audio signal level for the entire receiver and transmitter system. Changes to the gain settings occur in realtime allowing for adjustments during live performances. When adjusting the gain, monitor the audio meter levels to prevent signal overloads. Receiver Gain Controls Reading the Audio Meter The gain can be adjusted by using the gain▲▼...

  • Page 11: High Density Mode

    Best Practices for High Density Mode • 3 + 4 (quad only) • When band planning, position ULX-D High Density channels in a range of • 1 + 2 / 3 + 4 (quad only) frequencies separated from other devices.

  • Page 12: Rf Cascade Ports

    Important! The frequency band must be the same for both receivers. Encryption Custom Groups AES algorithm used in Shure ULX-D™ Wireless has been validated Use this feature to create and export up to 6 groups of manually selected (validation no: 2552) by the National Institute of Standards and...

  • Page 13: Locking Controls And Settings

    The firmware of all ULX-D devices has the form of MAJOR.MINOR. PATCH (e.g., 1.2.14). At a minimum, all ULX-D devices on the network Tip: To unlock, press the EXIT button, turn the control wheel to select UNLOCKED, and then press ENTER (including transmitters), must have the same MAJOR and MINOR firmware to save.

  • Page 14: Receiver Menu Descriptions

    BATTERY INFO 10mW=Nm, 1mW=Lo, 20mW=Hi. • CONFIGURATION: SWITCHED/ REDUNDANT AUDIO/SPLIT HEALTH BATT • SHURE CONTROL: DEVICE ID, Network Sets the transmitter battery type to ensure accurate Mode, Set IP and Subnet values for CHARGE metering: KEEP, Alkaline, NiMH, Lithium Ethernet network CYCLES •...

  • Page 15: Networking Ulx-D Receivers

    Network Control Software The ULX-D receivers can be controlled by Shure Control (WWB6) for remote management and monitoring and the Dante Controller to manage digital audio routing. Signals for AMX and Crestron controllers are carried on the same network as Shure Control.

  • Page 16: Overview Of Dante Network Modes

    Three selectable Dante network modes are available to control signal routing from the receiver ports to the Dante network. Network Mode Port Function and Signals Application Secondary Primary SWITCHED Shure Control Shure Control For single network Installations of star or daisy-chained networks. Dante Audio and Control Dante Audio and Control REDUNDANT Dante Redundant Audio Shure Control Primary and Secondary ports are configured are 2 separate networks.

  • Page 17: Network Connection And Configuration Examples

    • Dante Audio and Shure Control are present on both the Primary and Secondary ports • The Dante IP address and the Shure Control IP address must be on the same subnet. The computer running WWB6 must also be on this subnet.

  • Page 18: Redundant Audio Mode

    Secondary network in case the audio on the primary network is interrupted. Network Characteristics: • Dante Primary Audio and Shure Control are present on the Primary port • Backup Dante audio is present on the Secondary port • The Primary Dante IP address and the Shure Control IP address must be on the same subnet.
  • Page 19 Network Characteristics: • Shure Control is present on the Primary port • Dante Audio is present on the Secondary port • The IP addresses for Dante and Shure Control must be on different subnets Network Example ① Computer (Dante Controller) Connect the computer running the Dante controller to the Secondary port.

  • Page 20: Assigning Network Device Ids For Shure Control And Dante Control

    Assigning Network Device IDs for Shure Control and Dante Control When using the receiver in a network with Shure Control (WWB6) and a Dante Controller, two Device IDs are required: one for Shure Control and one for Dante Control. Device IDs are used to identify devices on the network and for creating Dante digital audio routes.

  • Page 21: Configuring Audio Routes With The Dante Controller

    In order for audio to flow in the network, audio routes (subscriptions) must be configured between transmitters and receivers. Note: ULX-D receivers will appear in the Dante controller as a Transmitter. Devices that have both inputs and outputs commonly appear as both transmitters and receivers.

  • Page 22: Restoring Dante Factory Settings

    Caution! Performing a reset on either the Dante network card or on the ULX-D receiver will interrupt the Dante audio. Tip: Prior to performing a factory reset, note the current Dante network mode and IP settings. After a reset, the Dante network mode reverts to SWITCHED, and the IP address mode revert to AUTO.
  • Page 23 Adding a computer running Wireless Workbench 6 to the network allows for remote control and monitoring of the receiver. ® Visit: www.shure.com/wwb to download Wireless Workbench 6 software. Managing and Monitoring Receiver Settings Manage and monitor receiver settings by opening the Monitor tab in Wireless Workbench.

  • Page 24: Troubleshooting

    Troubleshooting Issue See Solution... No Sound Power, Cables, Radio Frequency, or Encryption Mismatch Faint sound or distortion Gain Lack of range, unwanted noise bursts, or dropouts Cannot turn transmitter off or change frequency settings, or can't program Interface locks receiver Encryption Mismatch message Encryption Mismatch Firmware Mismatch message...

  • Page 25: Ulx-Dspecifications

    ULX-DSpecifications RF Carrier Frequency Range Audio Dynamic Range 470–937.5 MHz, varies by region (See Frequency Range and Output A-weighted, typical, System Gain @ +10 Power table) XLR Analog Output >120 dB Working Range Dante Digital Output 130 dB 100 m (330 ft) Total Harmonic Distortion Note: Actual range depends on RF signal absorption, reflection and interference.

  • Page 26: Audio Input

    0 to 21 dB (in 3 dB steps) 0 to 21 dB (in 3 dB steps) Battery Type Battery Type Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V Battery Runtime Battery Runtime...

  • Page 27: Ta4M Connector

    Tables and Diagrams TA4M Connector 500 Ω 500 Ω 5 V DC ① Ground 100 µF 1µF ② Bias Voltage Audio Input 12dB 910k Ω 440 pF ③ Audio Input Active Load ④ Active Load Ground XLR Receiver Output µF Ω...

  • Page 28: Furnished Accessories

    KSM9HS RPW186 95AF9279 95F9043 (Blue) 95M9279 95F9043 (Blue) 95M9279 95M9279 Optional Accessories Shure Rechargeable Battery SB900 Front Mount Antenna Kit (Includes 2 cables and 2 UA600 bulkhead 8-Bay Battery Charger SBC800 Remote Antenna Bracket with BNC Bulkhead Adapter UA505 Dual Docking Battery Charger...

  • Page 29: Important Product Information

    Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency.
  • Page 30 FREQUENCIES FOR EUROPEAN COUNTRIES ULXD-P51 710 - 782 MHz, max. 20 mW ULXD-G51 470 - 534 MHz, max. 20 mW Country Code Frequency Range Country Code Frequency Range Code de Pays Gamme de frequences Code de Pays Gamme de frequences Codice di paese Gamme di frequenza Codice di paese...
  • Page 31 Europe, Middle East, Africa: Shure Europe GmbH Jakob-Dieffenbacher-Str. 12, 75031 Eppingen, Germany Phone: 49-7262-92490 Fax: 49-7262-9249114 Email: info@shure.de PT. GOSHEN SWARA INDONESIA Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat I.16.GSI31.00501.0211...
